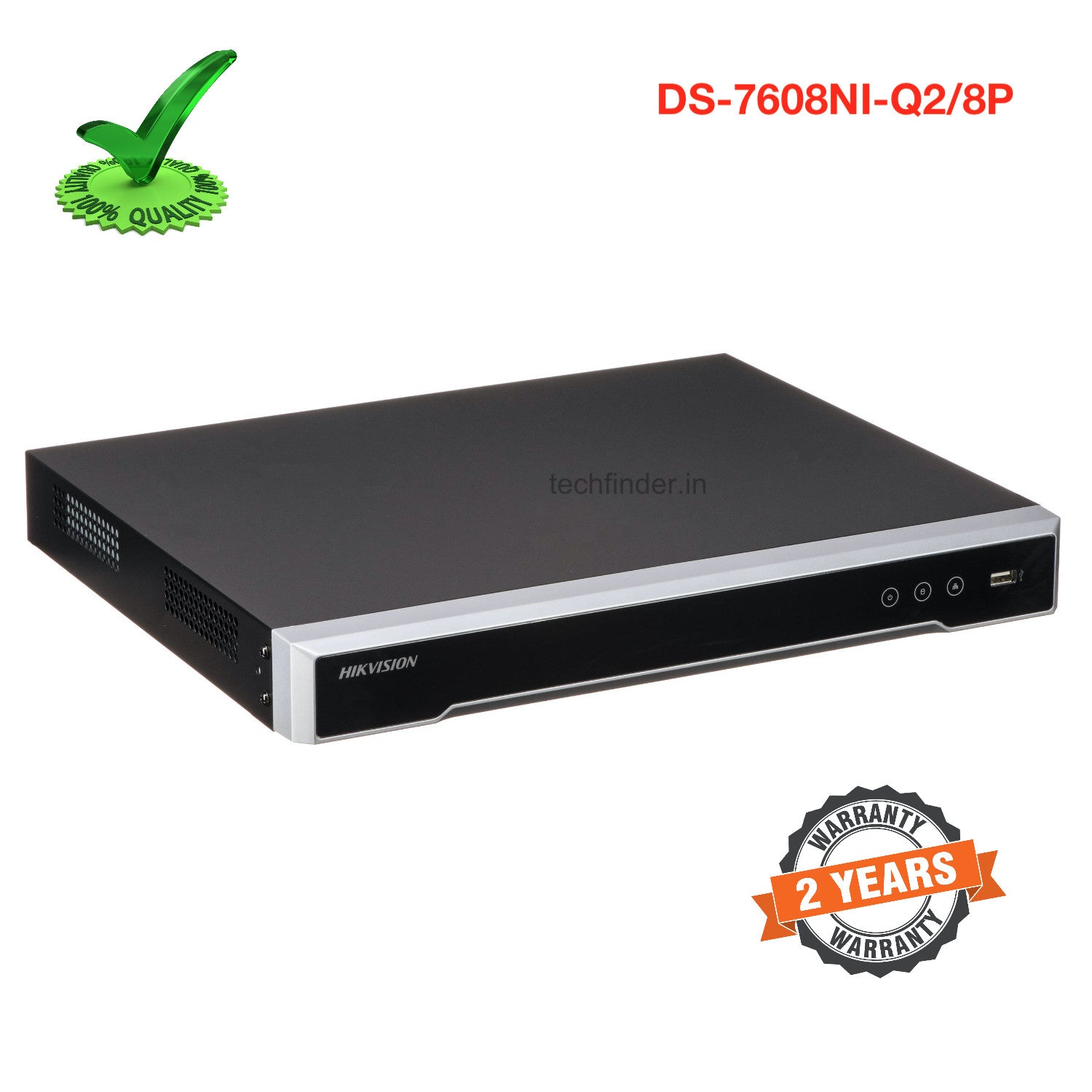

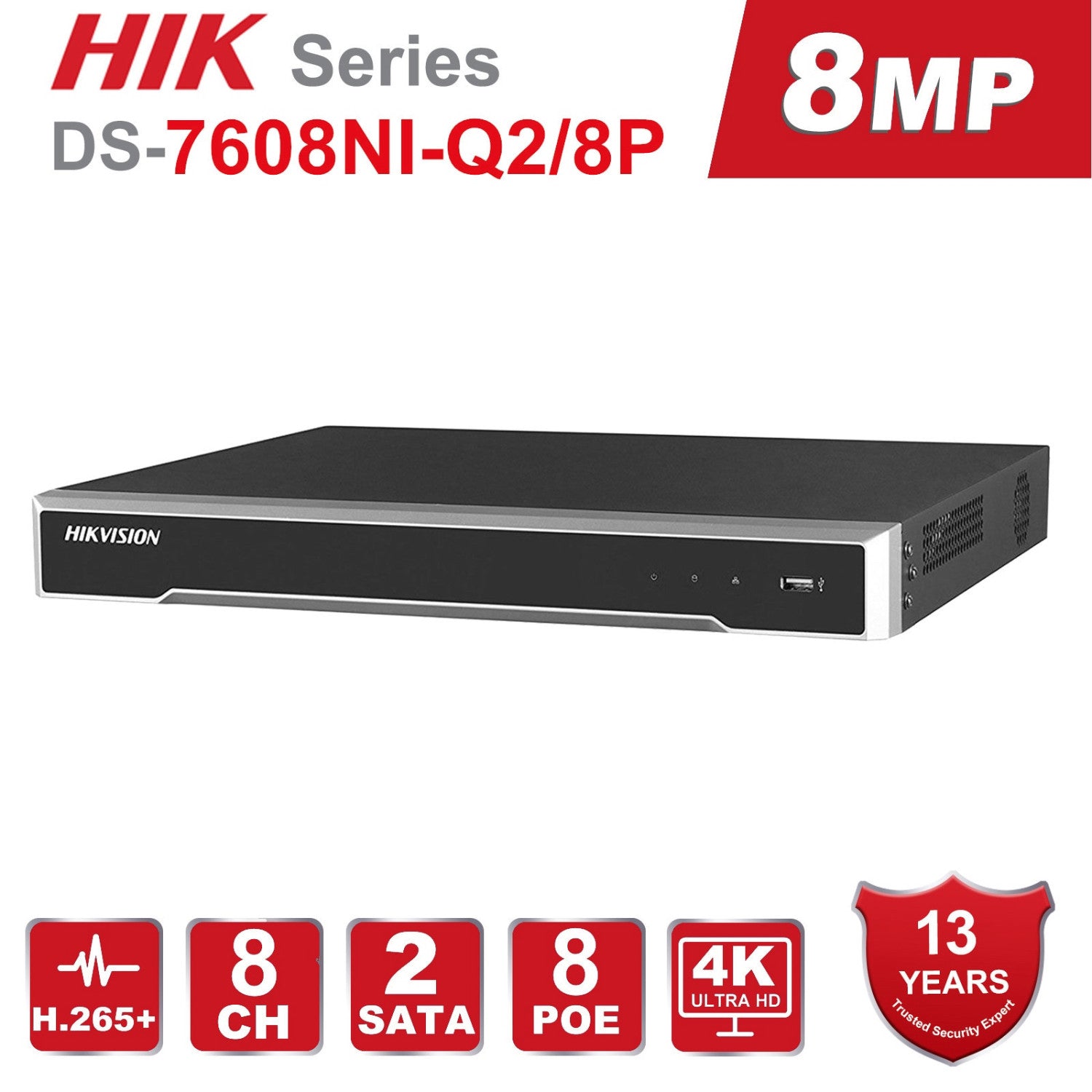

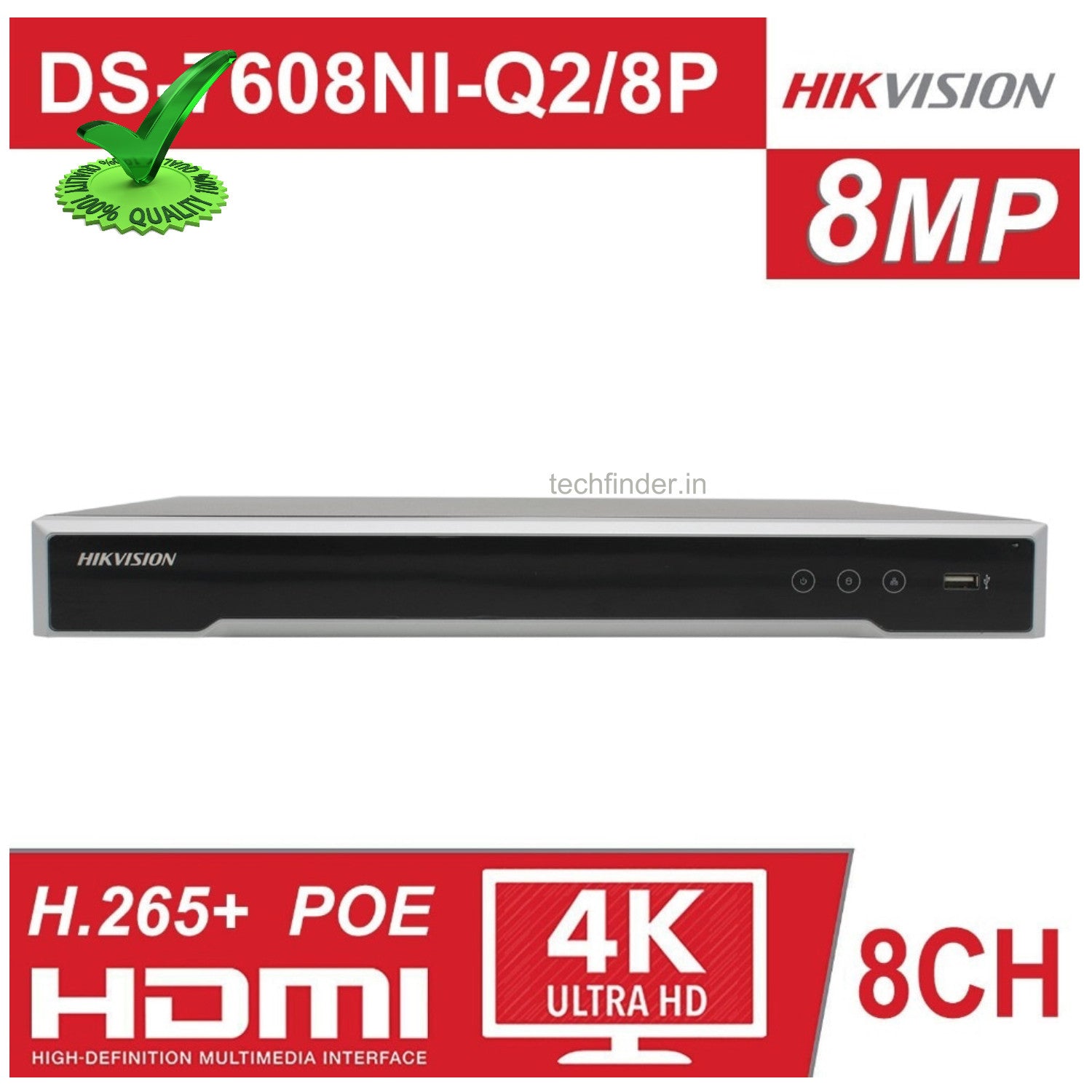

Hikvision DS-7608NI-Q2/8P 8ch POE 4k Network Video Recorder

Specification

Model No : DS-7608NI-Q2/8P

Video/Audio input

• IP video input : 8-ch, Up to 8 MP resolution
• Two-way audio : 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Network

• Incoming bandwidth : 80 Mbps
• Outgoing bandwidth : 80 Mbps

Video/Audio output

• Recording resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• HDMI output resolution : 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA output resolution : 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio output : 1-ch, RCA (Linear, 1 KΩ)

Decoding

• Decoding format : H.265/H.265+/H.264/H.264+/MPEG4
• Live view / Playback resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback Capability : 1-ch @ 8 MP / 4-ch @ 1080p

Network management

• Network protocols : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPTM, HTTPS

Hard disk

•  SATA : 2 SATA interfaces
• Capacity : Up to 6TB capacity for each disk

External interface

• Network interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• USB interface : 2 × USB 2.0

POE Interface

• Interface : 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power : ≤ 80W
• Standard : IEEE 802.3 af/at

General

• Power supply : 100 to 240 VAC
• Power : ≤ 180W
• Consumption (without hard disk) : ≤ 15W
• Working temperature : -10 to +55o C (+14 to +131o F)
• Working humidity : 10 to 90 %
• Chassis : 1U chassis
• Dimensions (W × D × H) : 385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
• Weight (without hard disk) : ≤ 2.6 kg (5.7 lb)

Extra Information

• SKU: DS7608NIQ28P
• Warranty: 2 Years
• Brand: Hikvision
• Technology: IP
• Product Type: NVR
• PDF: View PDF
