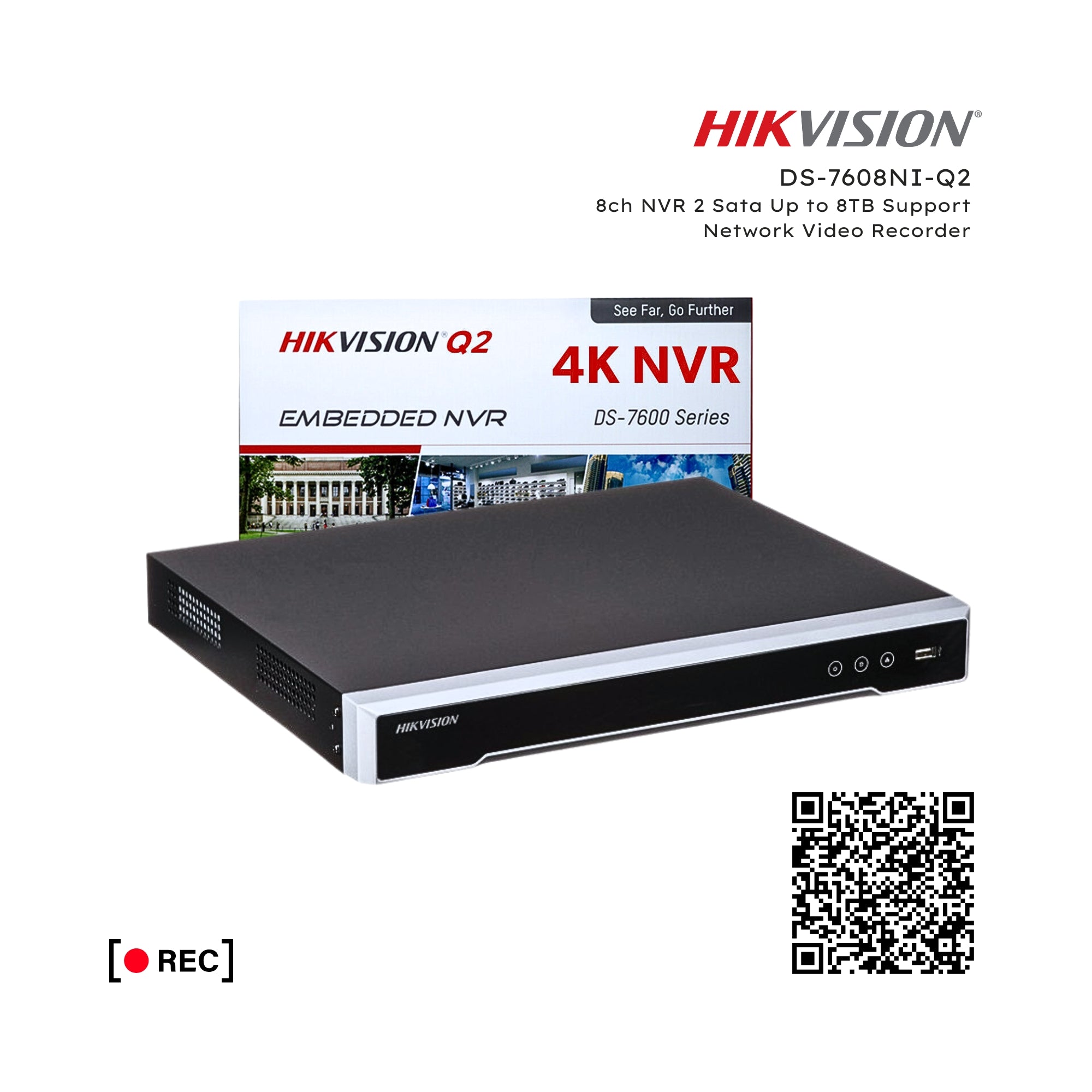

Hikvision DS-7608NI-Q2 NVR 8ch 2 Sata Support Network Video Recorder
Key Feature
- Up to 8-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
- Up to 80 Mbps incoming bandwidth
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Specification
|
Motion Detection 2.0 |
|
|
Human/Vehicle Analysis |
4-ch |
|
Video and Audio |
|
|
IP Video Input |
8-ch |
|
Incoming Bandwidth |
80 Mbps |
|
Outgoing Bandwidth |
80 Mbps |
|
HDMI Output |
1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
|
VGA Output |
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
|
Video Output Mode |
HDMI/VGA simultaneous output |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 k Ω) |
|
Decoding |
|
|
Decoding Format |
H.265+,H.265,H.264+,H.264 |
|
Recording Resolution |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
|
Synchronous Playback |
8-ch |
|
Decoding Capability |
1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722/G.726 |
|
Network |
|
|
Remote Connection |
32 |
|
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|
Network Interface |
1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
|
Auxiliary Interface |
|
|
SATA |
2 SATA interfaces |
|
Capacity |
Up to 8 TB capacity for each disk |
|
Alarm In/Out |
N/A (4/1 is optional) |
|
USB Interface |
2 × USB 2.0 |
|
General |
|
|
Power Supply |
12 VDC, 3.33 A |
|
Consumption |
≤ 15 W (without HDD) |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10% to 90% |
|
Chassis |
1U chassis |
|
Dimension (W × D × H) |
385 × 315 × 52 mm (15.2"× 12.4" × 2.0") |
|
Weight |
≤ 1.8 kg (without HDD, 4.0 lb.) |
|
Certification |
|
|
FCC |
Part 15 Subpart B, ANSI C63.4-2014 |
|
CE |
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
|
Certification |
|
|
FCC |
Part 15 Subpart B, ANSI C63.4-2014 |
|
CE |
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
Professional and Reliability
-
H.265+ compression effectively reduces the storage space by up to 75%
HD Video Output - Provide simultaneous HDMI and VGA outputs
-
HDMI video output at up to 4K resolution
Storage and Playback - 2 SATA interfaces for HDD connection (up to 8 TB capacity per HDD)
-
Smart search/smart playback to improve the playback efficiency
Smart Function - 4-ch Motion Detection 2.0
- Support multiple VCA (Video Content Analytics) events
-
Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.)
Network & Ethernet Access - 1 self-adaptive 10/100 Mbps Ethernet interface
- Hik-Connect for easy network management
