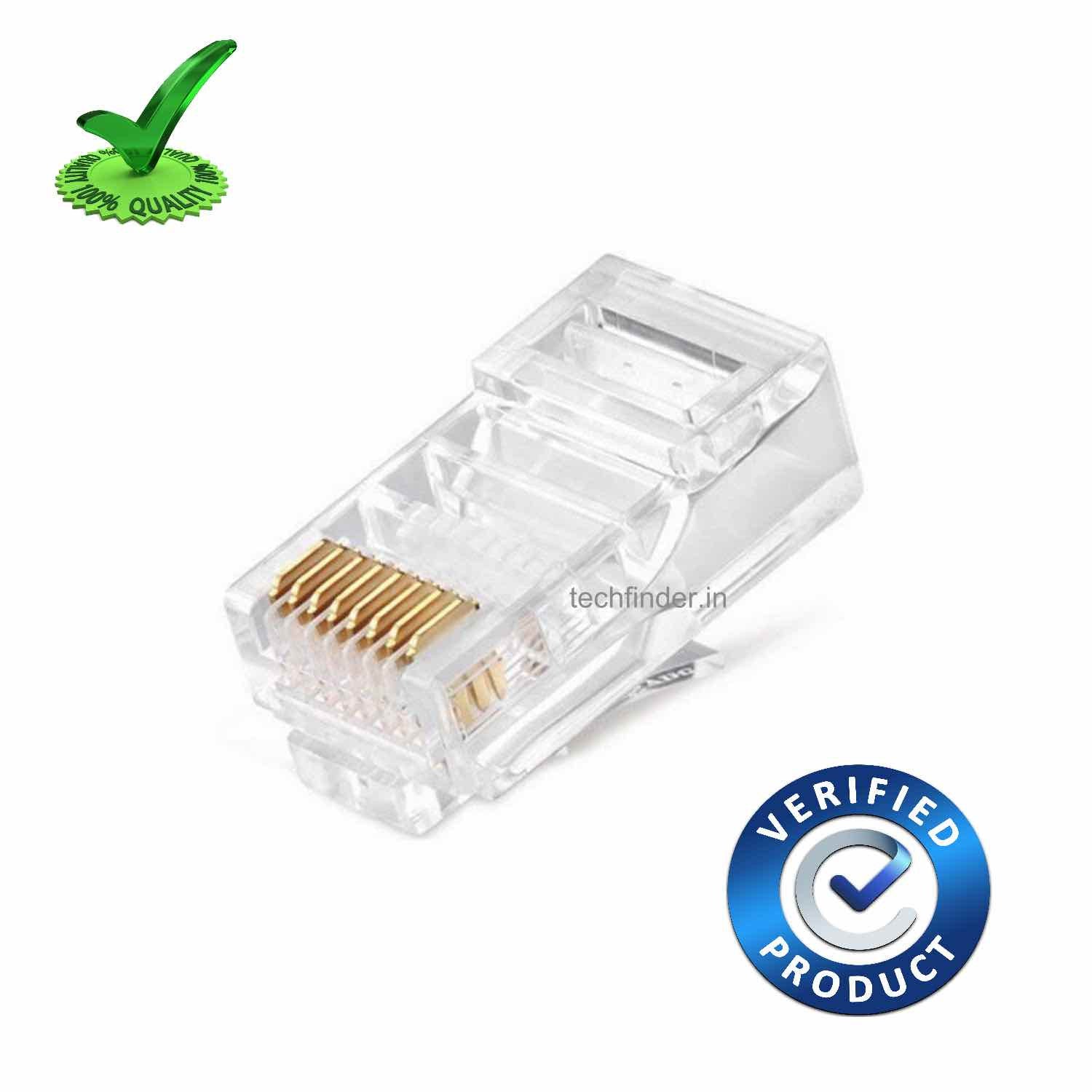

RJ45 Connector

An RJ45 connector is a standard type of networking connector commonly used to connect Ethernet cables to devices like computers, routers, switches, and networked cameras. The RJ45 is widely used for data transmission in both home and business networking environments.

What is an RJ45 Connector?

The RJ45 connector (short for Registered Jack 45) is an 8-pin connector used to terminate Ethernet cables. It provides a physical connection for transmitting data over local area networks (LANs). This connector is typically used in Cat5e, Cat6, Cat6a, and Cat7 cables, which are designed for Ethernet networking.

The RJ45 connector is essential for connecting networked devices, including computers, routers, switches, and other devices that require a wired internet connection.

Key Components of an RJ45 Connector

1. Contacts (Pins): The RJ45 connector has 8 metal contacts, which align with the 8 wires inside an Ethernet cable. These contacts transmit the data signals from one device to another.

   • Pins 1–8: The positions for the 8 wires that make up the Ethernet cable. Each pin corresponds to a specific wire in the cable.

2. Housing: The plastic casing around the connector holds the metal contacts and ensures proper alignment when inserted into a device or port.

3. Latch: The plastic clip on the connector locks the RJ45 into place when it is plugged into a device, preventing accidental disconnections.

4. Wires Inside: The 8 individual wires inside the Ethernet cable are color-coded, and the arrangement of these wires inside the RJ45 connector must follow a specific wiring standard (either T568A or T568B).

How Does an RJ45 Connector Work?

An RJ45 connector is used to terminate Ethernet cables that transmit digital signals, allowing data transfer between devices on a network. The Ethernet cable is stripped at both ends to expose the internal wires, which are then inserted into the RJ45 connector.

• The contacts in the RJ45 connector make electrical contact with the wires, allowing data signals to be sent through the cable to other devices, such as a router or switch.

• When the RJ45 connector is plugged into a port on a device (such as a router), the pins make contact with the corresponding pins inside the port, completing the electrical circuit for data transmission.

Wiring Standards for RJ45 Connectors

There are two main wiring standards used for arranging the wires inside an RJ45 connector: T568A and T568B. Both standards are used for Ethernet cables, but the wiring order is different.

1. T568A

   • Pin 1: White/Green

   • Pin 2: Green

   • Pin 3: White/Orange

   • Pin 4: Blue

   • Pin 5: White/Blue

   • Pin 6: Orange

   • Pin 7: White/Brown

   • Pin 8: Brown

2. T568B

   • Pin 1: White/Orange

   • Pin 2: Orange

   • Pin 3: White/Green

   • Pin 4: Blue

   • Pin 5: White/Blue

   • Pin 6: Green

   • Pin 7: White/Brown

   • Pin 8: Brown

The T568A standard is often used in residential wiring, while the T568B standard is more common in commercial applications. However, both standards work the same in terms of functionality, so they can be used interchangeably as long as both ends of the cable follow the same standard.

Types of RJ45 Connectors

1. Shielded RJ45 (STP - Shielded Twisted Pair):

   • Designed for use with shielded Ethernet cables, these connectors have an additional shielding layer around the pins to prevent electromagnetic interference (EMI).

   • Use case: Often used in environments with high levels of interference, such as industrial or data center settings.

2. Unshielded RJ45 (UTP - Unshielded Twisted Pair):

   • These connectors are used with unshielded Ethernet cables, where there is no additional shielding around the individual wires.

   • Use case: Suitable for general home networking or environments with minimal interference.

3. Toolless RJ45 Connectors:

   • These connectors are designed for easy installation without the need for crimping tools. They are often used for DIY networking projects or when quick and convenient termination is needed.

4. Crimped RJ45 Connectors:

   • These connectors require the use of a crimping tool to securely attach the wires to the metal contacts inside the RJ45 connector.

   • Use case: Standard for creating custom-length Ethernet cables.

Tools for Working with RJ45 Connectors

1. Crimping Tool: A tool used to attach the RJ45 connector to the cable by crimping the metal pins onto the individual wires inside the Ethernet cable. This tool is essential for creating custom Ethernet cables.

2. Cable Stripper: A tool used to strip the insulation off the Ethernet cable to expose the individual wires, ensuring a clean and accurate connection when inserting the wires into the RJ45 connector.

3. RJ45 Tester: A device used to test the connectivity and functionality of an Ethernet cable with RJ45 connectors. It ensures the wiring is correct and the cable is properly terminated.

4. Punch Down Tool: Used for punching the wires into keystone jacks or patch panels, which are sometimes used for fixed network installations.

Steps to Crimp an RJ45 Connector

1. Prepare the Cable:

   • Strip about 1-2 inches of the outer insulation from the Ethernet cable to expose the individual colored wires.

2. Arrange the Wires:

   • Arrange the wires according to the chosen wiring standard (either T568A or T568B).

3. Insert the Wires into the RJ45 Connector:

   • Slide the wires into the RJ45 connector, making sure each wire is fully inserted and in the correct order.

4. Crimp the Connector:

   • Use a crimping tool to secure the RJ45 connector to the cable. The tool will push the metal pins into the wires and hold the connector in place.

5. Test the Cable:

   • After crimping, use an RJ45 tester to check that the cable is properly wired and works as expected.

Common Uses of RJ45 Connectors

• Ethernet Networks: RJ45 connectors are primarily used to connect devices (such as computers, routers, switches, access points, and network cameras) to an Ethernet network for data transmission.

• Home Networking: In homes, RJ45 connectors are often used for wired internet connections, connecting devices to modems, routers, and network switches.

• Office Networking: RJ45 connectors are used extensively in office environments for creating wired LAN networks, connecting workstations, printers, and servers.

• IP Surveillance Systems: RJ45 connectors are used to connect IP cameras to the network, enabling them to send video footage over the network to NVRs or cloud storage.

• Voice over IP (VoIP): Used in VoIP phones to connect the phone to the network for digital telephony services.
