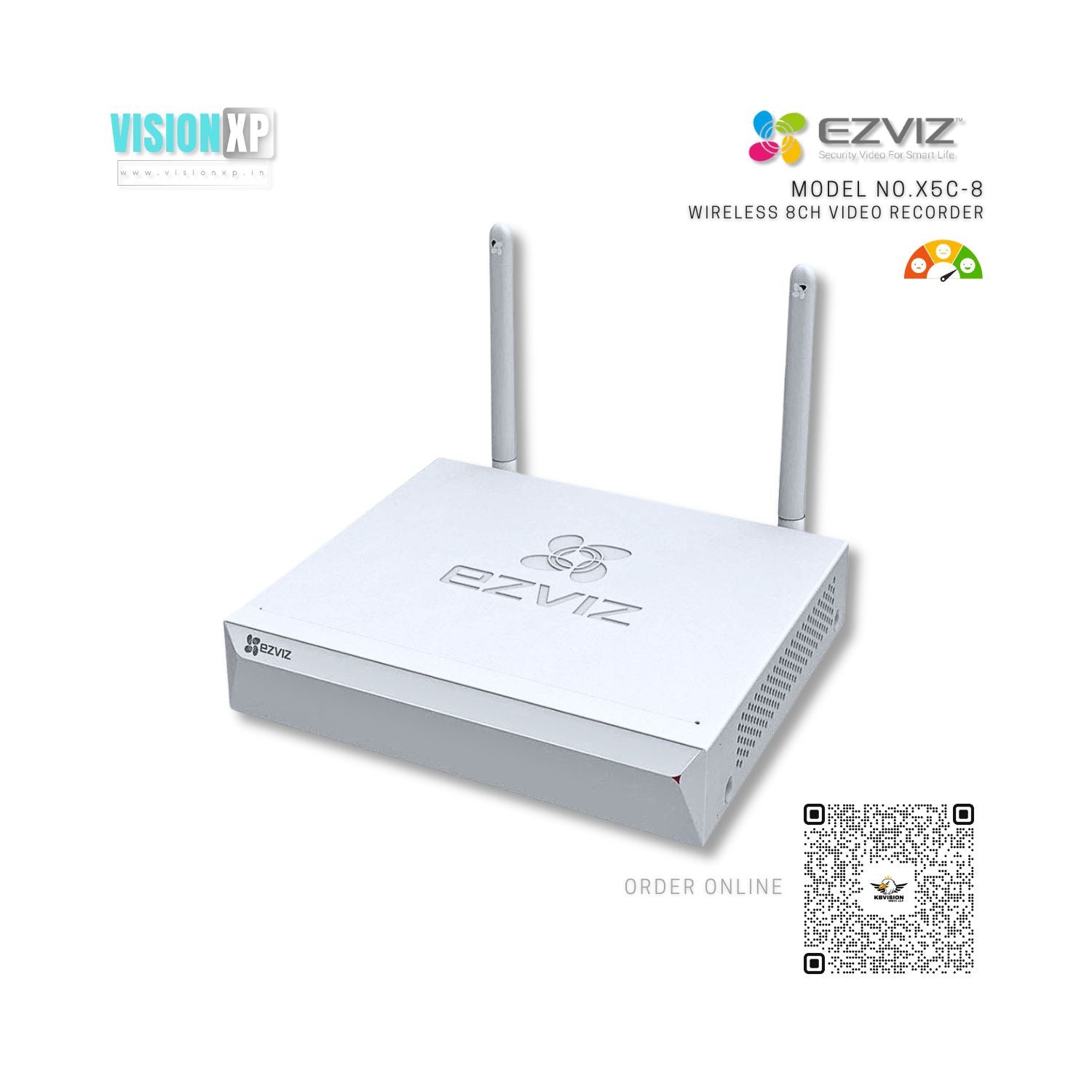

Ezviz X5C-8W Wireless 8Ch Network Video Recorder NVR for WiFi Camera Lowest Price Online Store

Model No : CS-X5S-R100 X5S-8W

Wireless NVR

• Flexible and Easy to Set Up A wireless NVR with HDMI and VGA outputs that can support up to 8 Full HD Wi-Fi cameras and features a strong, wall-penetrating signal.  8 Channel X5C (ezNVR)  (1TB hard drive preloaded)

HDMI and VGA outputs

• The X5C (ezNVR) works with a variety of monitors.

Supports up to 4 Wi-Fi cameras

• The X5C (ezNVR) connects up to 8 Wi-Fi cameras so you can monitor different rooms simultaneously with multi-split screen monitoring, for complete coverage with no blind spots.

Full HD 1080p video playback

• The X5C (ezNVR) supports Full HD 1080p live view and video play- back so you don’t miss a thing (720p default setting, with 1080p manual option).

Up to 6TB of storage

• Select from 1TB to 6TB storage options for secure, local storage of your videos.

Supports ONVIF conformant cameras

• The X5C (ezNVR) supports the ONVIF protocol, making it compatible with both EZVIZ Cameras and ONVIF cameras from other brands.

Easy to set up

• With the One-Key Access feature, users can seamlessly add cameras to the X5C (ezNVR).

Strong, wall-penetrating signal

• The X5C (ezNVR) has a wireless range up to 100 meters in open spaces and can penetrate through layers of wall. Wall Penetration

Control via the EZVIZ App

• With the EZVIZ App, you can remotely control the X5C (ezNVR) to playback videos or view live videos even when you are away from home.

Specifications Model X5C-8

Network Specifications

• Antenna Number : 2
• Maximum Wireless Access Bandwidth : 30mbps
• Maximum Wireless Range : 100m
• Radio Frequency : 2.4GHz
• Ethernet Port : One 10/100M adaptable Ethernet port
• Wired Access Bandwidth : 50mbps

Video Output

• VGA : 1 channel (Homologous to HDMI output)
• HDMI : 1 Channel

Audio/Video Codec

• Access Camera Number : 8
• Video Compression : H.264
• Decoded Playback : Supports 4*1080P

Video Record Management

• Video Capture : Manual video recording; dynamic detection video ; regular
• video recording :  alarm recording
• Backup Modes : Supports hard disk backup, web application backup

HDD

• Type : One Built-in SATA port
• Capability : Supports 1TB to 6TB 3.5inch HDD

External Interface

• Audio Output : Support
• Hardware Reset : Support
• USB2.0 Port : 1

Product Dimensions (mm )

• length x width x high : 235 x 270 x 44.5

Packaging Dimensions (mm)

• length x width x high : 387 x 362 x 75

Weight

• Net Weight : <=900g

Package Contents:

• X5C (ezNVR) (with adapter) x1 - Mouse x 1
• 1 Meter Power cable x 1
• Quick Start Guide x 1

Requirements

• Operating Conditions: 0°C - 40°C, humidity 90% or less

Certificates

• FCC/CE/UL/IC/NOM/Reach/WEEE/RoHS/IFETEL

Extra Information

• SKU: EZVIZX5C8
• Additional Note: Ask before order
• Warranty: 1 Year
• Brand: Ezviz
• Technology: IP
• Product Type: NVR
• PDF: View PDF
