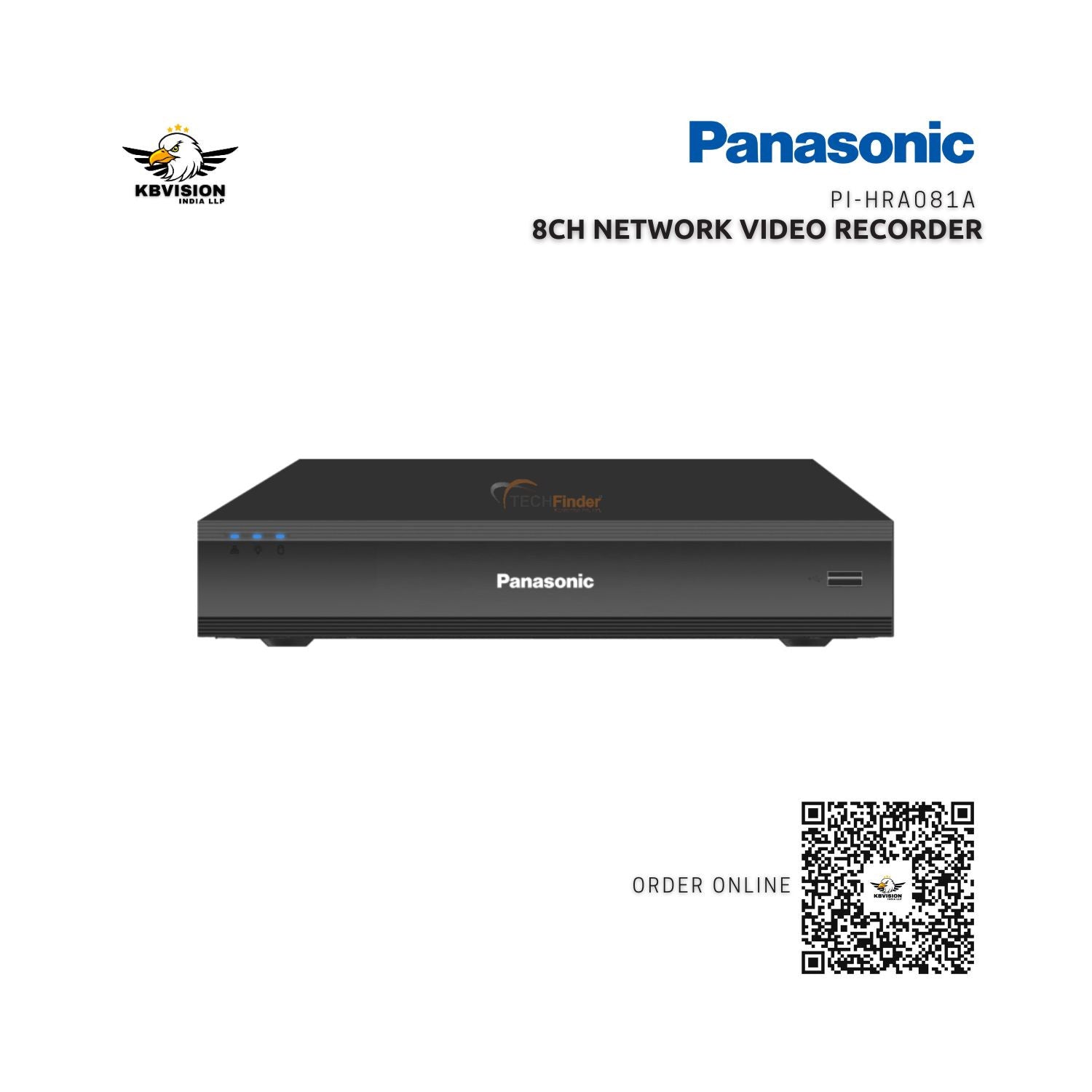

Panasonic PI-HRA081A 8port Netwrok Video Recorder NVR Lowest Price Buy Online Store

Product Specification :

• Network Video Input : 8-CH (Expandable upto 16-CH*)
• Operating System : Embedded Linux
• Network Access Bandwidth : 80Mbps
• Video Compression : H.265+/H.265/H.264
• Video Output : 1 CH VGA output (1920×1080, 1280×1024@50/60Hz) 1 CH HDMI output (3840x2160, 1920×1080, 1280×1024, 1440x990, 1024x768 @50/60Hz)
• Video Preview Mode : 8-CH & 16-CH*
• Video Bit Rate : 16Kbps-8Mbps
• Video Resolution : 8MP/5MP/3MP/1080P/720P/D1/VGA/CIF/QCIF
• Preview Capability : 8×8MP, 16x5MP@25/30fps (Mainstream), 8xD1, 16xD1@25/30fps (Sub Stream) Audio : 1 Output
• Image Display : 1/4/8/9/16 image displays
• Snapshot Mode : Support timing snapshot, manual snapshot, JPEG format
• Motion Detection : Support 396(22*18) surveyed area can be set in every screen and multi-level sensitivity adjustable
• Human Detection : Support Human detection on all channels (IPC Support Required)
• Area Intrusion Detection : Support Intrusion detection on all channels (IPC Support Required)
• Line Crossing Detection : Support Line Crossing detection on all channels (IPC Support Required)
• Privacy Mask : Support 4 zones IPC Support Required)
• Audio compression : G.711a
• Audio output : 1Ch, 3.5mm Jack
• Video Frame Rate : 1-30fps
• Record Mode : Manual/Schedule/Motion Detection/ Intelligent Analysis Alarm
• Playback Ability : Support 16/8CH
• Playback Mode : Instant playback, Local video, local image, External file playback
• Record Search : Time, calendar, channel search, event search, (regular video, motion detection video, alarm video)
• Video Playback : Start, stop, normal play, back play, forward 30 seconds, backward 30 seconds, fast play (1-256X), slow play(1 1/32X), frame play, display the hidden progress bar, backup, full screen, roller amplification time bar precise playback
• Storage Interface : 1 SATA
• HDD Capacity : Single max.10TB
• Disk Grouping : NA
• Disk Quota : NA
• Backup Location : Local, Network
• Backup Method : USB Device, network backup
• Network Protocol : TCP/IP, IPv4, HTTP, PPPoE, DHCP, DNS, 3G/4G, Wi-Fi, Google drive/Dropbox Storage(1CH), DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, FTP, P2P
• Interface Protocol : ONVIF, RTSP
• Protocol port : ONVIF/RTSP/HTTP
• Mobile Surveillance : Panasonic PHS for iOS, Android
• Web Browser Support : IE, Chrome, MS Edge, Firefox, Safari
• Event Actions : Send email, audible warning (buzzer), alarm on monitor, record, snapshot, preview, PTZ linkage
• User Management : Users add, delete, modify, permission management, Support dual password authentication, Auxiliary users (secondary password protection)
• Security Mode : Authorized username and password, HTTPS with password, RTSP Validation, IP Filter
• Manage IPC : Modify IPC parameters
• Network Interface : 1 X RJ45 10M/100M adaptive Ethernet port
• USB Interface : 3 USB2.0*
• Power Supply : DC12V 2Amp
• Power Consumption : ≤10W (Without HDD)
• Operation Temperature/ Humidity : -10°C ~ 60°C/10﹪-90﹪
• Dimension(mm) : Product 229x250x45mm
• Weight/PCS(g) : Product 770g
• Certificates : CE, FCC, IS:13252 (Part 1): 2010, BIS Registered

Extra Information

• SKU: PIHRA081A
• Warranty: 2 Years
• Brand: Panasonic
• Technology: IP
• Product Type: NVR
• PDF: View PDF
