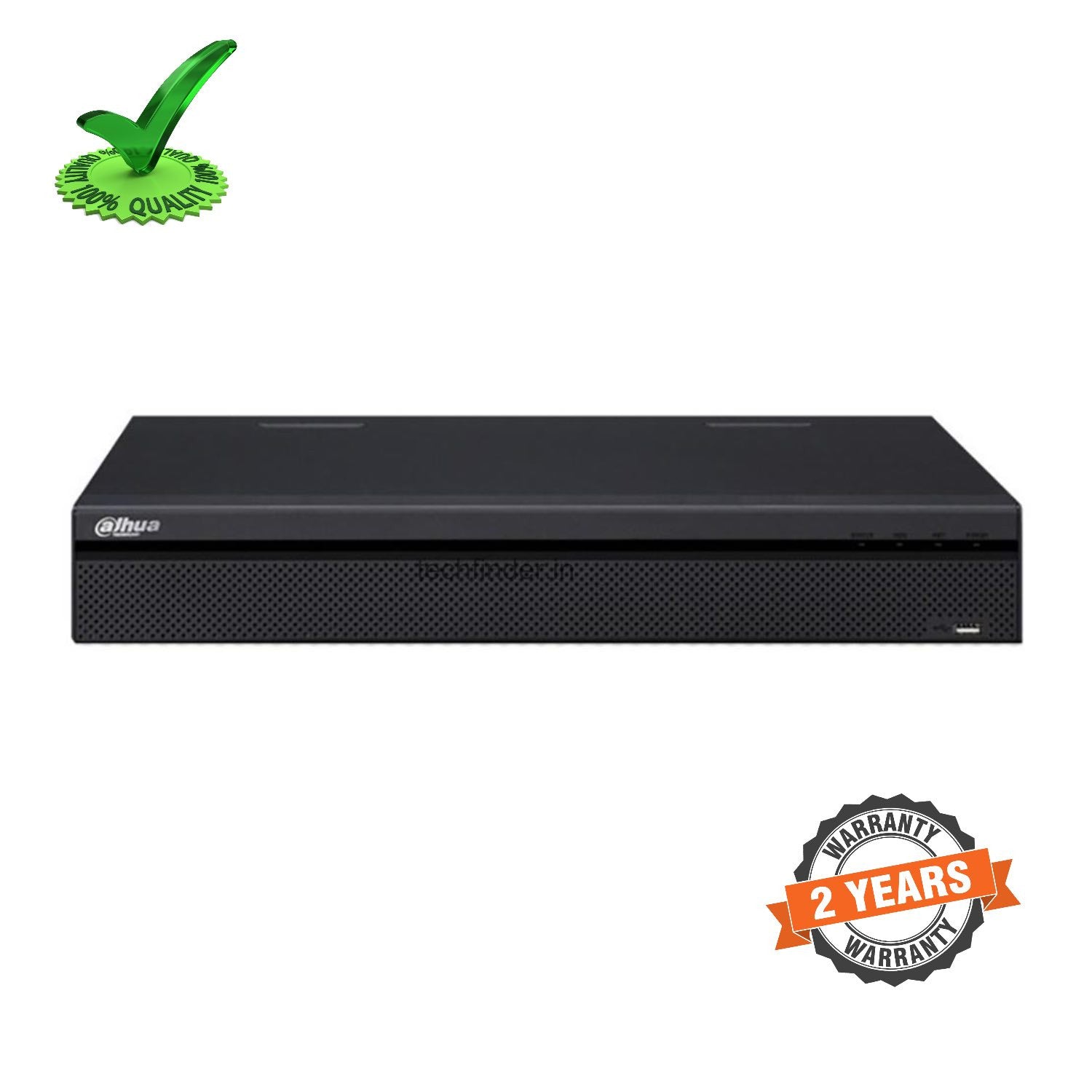

Dahua DHI-NVR2208-4KS2 08ch 80mbps 2 Sata 6TB Support NVR

System Overview

Dahua NVR2000-4KS2 is capable of transmitting 8MP image. It helps to save up to 50% HDD and storage space with its H.265 decoding technology compared with H.264.

Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as home safety, grocery, warehouse, education, and financial institutions.

The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with IP cameras.

Function

High Efficiency Video Coding (H.265)

The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers such impressive compression

by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.

Automatic Network Replenishment (ANR) Technology

Network Video Recorders with the ANR function automatically store video data on an IP camera SD card when the network is disconnected. After recovery of the network, the NVR automatically retrieves the video data stored on the camera.

Easy4ip

The Easy4ip app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access NVR devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at anytime from virtually anywhere.

Technical Specification

System

• Main Processor : Quad-core embedded processor
• Operating System : Embedded LINUX

Display

• Interface : 1 HDMI, 1 VGA
• Resolution : 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768, VGA: 1920×1080, 1280×1024, 1280×720
• Multi-screen Display : 8CH: 1/4, 8CH: 1/4/8/9
• OSD : Camera title, Time, Video loss, Camera lock, Motion detection, Recording
• Decoding Capacity : 1ch@8MP 30fps, 4ch@1080P 30fps

Video Detection and Alarm

• Trigger Events : Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
• Video Detection : Motion Detection, MD Zones: 396(22×18), Video Loss & Tampering
• Alarm input : 4 Channel, Low Level Effective, Green Terminal Interface
• Relay Output : 2 Channel, NO/NC Programmable, Green Terminal Interface

Playback and Backup

• Playback : 1/4
• Search Mode : Time/Date, Alarm, MD & Exact search
• Playback Function : Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
• Backup Mode : USB Device/Network

Storage

• Internal HDD : 2 SATA III Port, Up to 6 TB capacity for each HDD
• HDD Mode : Single
• eSATA : N/A

Auxiliary Interface

• USB : 2 USB Ports (1 USB2.0, 1 USB3.0)
• RS232 : N/A
• RS485 : N/A

Third-party Support

• Third-party Support ; Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more

Audio and Video

• IP Camera Input : 8 Channel
• Two-way Talk : 1 Channel Input, 1 Channel Output, RCA

Recording

• Compression : H.265/H.264
• Resolution : 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
• Record Rate : 80Mbps
• Bit Rate : 16Kbps ~ 20Mbps Per Channel
• Record Mode : Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
• Record Interval : 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Network

• Interface : 1 RJ-45 port (10/100Mbps)
• Ethernet Port : 1 Independent 1000Mbps Ethernet Port
• PoE : N/A
• Network Function : HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip
• Max. User Access : 128 users
• Smart Phone : iPhone, iPad, Android
• Interoperability : ONVIF 2.4, CGI Conformant

Electrical

• Power Supply : DC12V/4A
• Power Consumption : <6.9W (Without HDD)

Environmental

• Operating Conditions : -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
• Storage Conditions : -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

• Dimensions : 1U, 375mm×275mm×53mm (14.8" x 10.8" x 2.1")
• Net Weight : 1.5kg (3.31 lb) (without HDD)
• Gross Weight : 3.0kg(6.61 lb)(without HDD)

Certifications

• CE : EN55032, EN55024, EN50130-4, EN60950-1
• FCC : Part 15 Subpart B, ANSI C63.4-2014
• UL : UL60950-1+CAN/CSA C22.2 No.60950-1

Available Model

• Lite Series | DHI-NVR2204-4KS2
• Lite Series | DHI-NVR2208-4KS2
• Lite Series | DHI-NVR2216-4KS2

Extra Information

• SKU: DHINVR22084KS2
• Warranty: 2 Years
• Brand: Dahua
• Technology: IP
• Product Type: NVR
• PDF: View PDF
