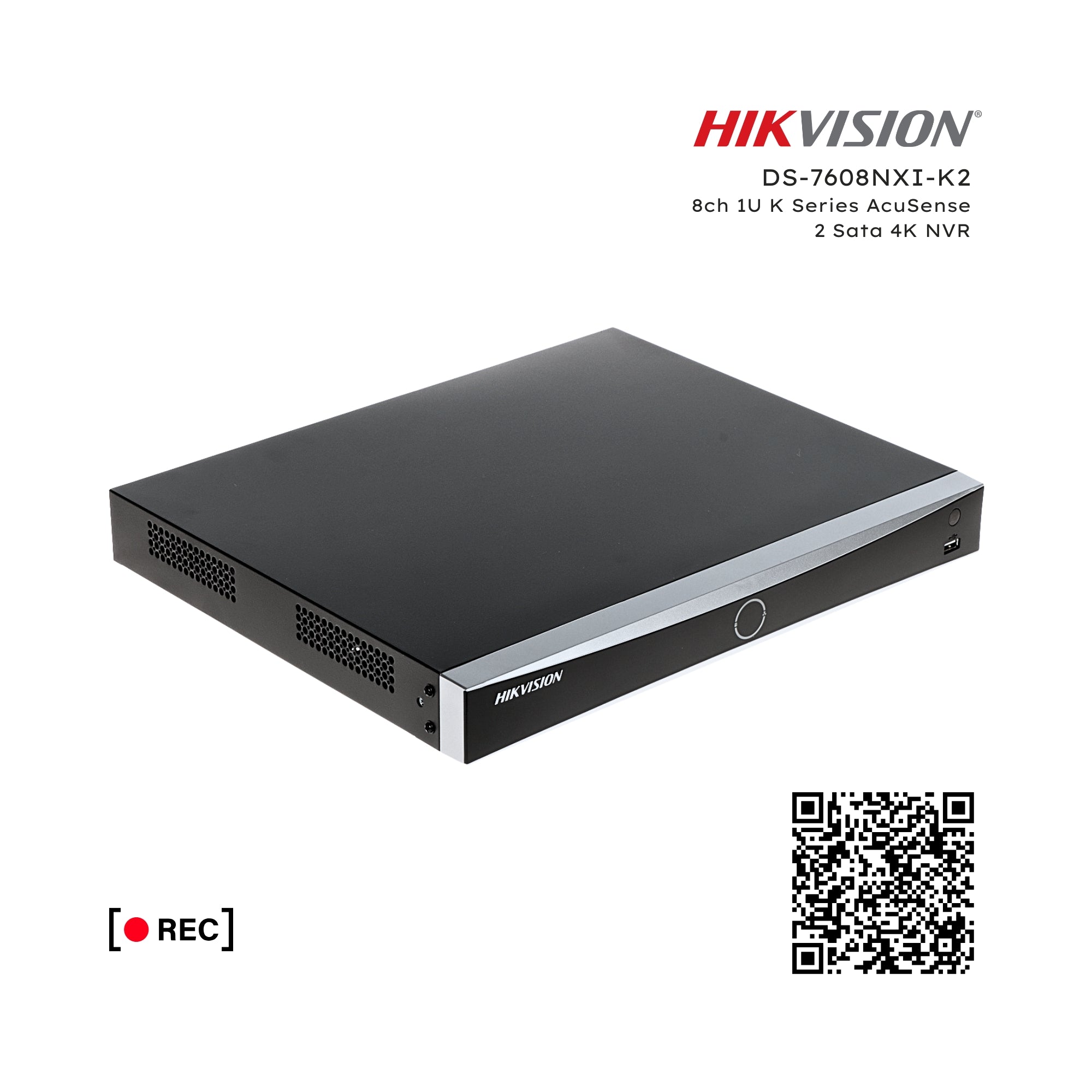

Hikvision DS-7608NXI-K2 8ch 1U K Series AcuSense 2 Sata 4K NVR

Intelligent Analytics

AI by Device

Facial recognition, perimeter protection, motion detection 2.0

AI by Camera

Facial recognition, perimeter protection, throwing objects from building, motion

detection2.0, ANPR, VCA

Facial Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Face Picture Library

Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4

MB, total capacity ≤ 1 GB)

Facial Detection and Analytics

Performance

1-ch, 8 MP

Face Picture Comparison

4-ch

Motion Detection 2.0

By Device

All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for

human and vehicle recognition to reduce false alarm

By Camera

All channels

Perimeter Protection

By Device

2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle

recognition to reduce false alarm

By Camera

All channels

Video and Audio

IP Video Input

8-ch

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

160 Mbps

HDMI Output

1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 ×

1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

VGA Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode

HDMI/VGA independent output

CVBS Output

N/A

Audio Output

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Two-Way Audio

1-ch, RCA (Linear, 1 KΩ)

Decoding

Decoding Format

H.265/H.265+/H.264+/H.264

Recording Resolution

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous playback

8-ch

Decoding Capability

AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30

fps)

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw/G.711alaw/G.722/G.726/AAC

Network

Remote Connection

128

API

ONVIF (profile S/G); SDK; ISAPI

Compatible Browser

IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,

UPnP™, HTTP, HTTPS

Network Interface

1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

2 SATA interfaces

Capacity

Up to 10 TB capacity for each HDD

USB Interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

Alarm In/Out

4/1

General

GUI Language

English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian,

Kyrgyz , Brazilian Portuguese, Indonesian

Power Supply

12 VDC, 3.3 A

Consumption

≤ 15 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0")

Weight

≤ 1 kg (without HDD, 2.2 lb.)

Certification

FCC

Part 15 Subpart B, ANSI C63.4-2014

CE

EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

Obtained Certification

CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
