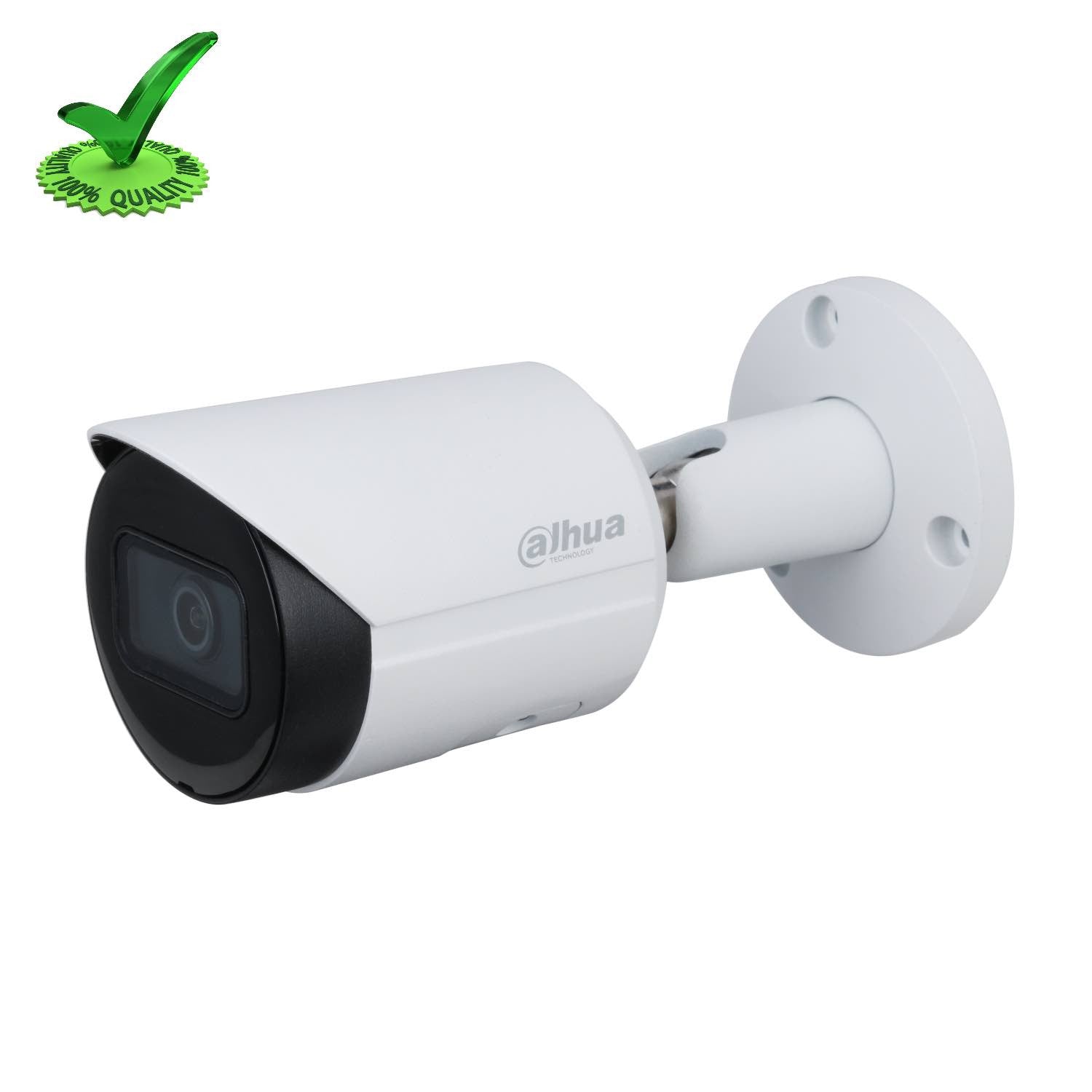

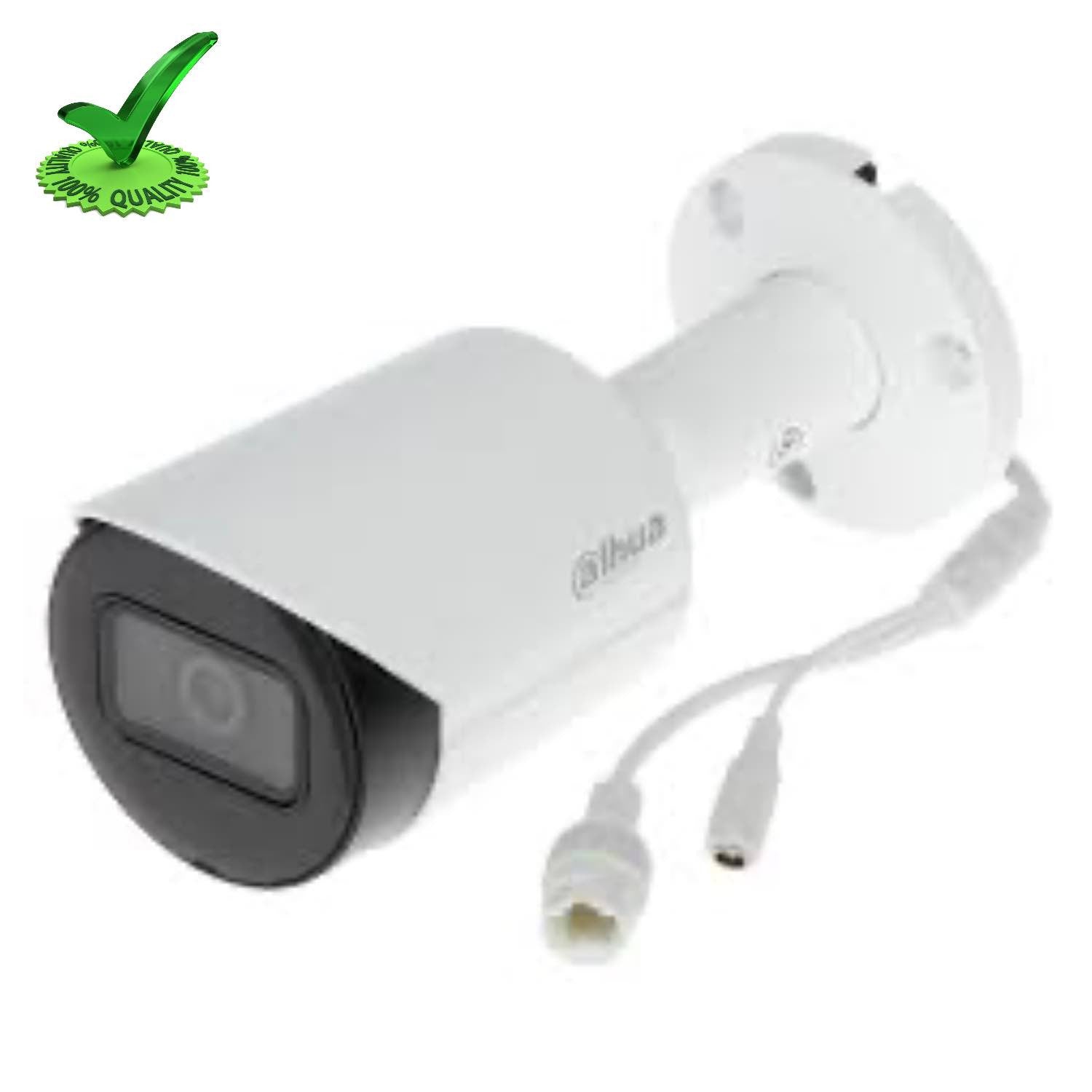

Dahua DH-IPC-HFW2831SP-S-S2 8MP IP Bullet Camera

Dahua DH-IPC-HFW2831SP-S-S2 8MP IP Bullet Camera Best Price

System Overview

• With upgraded H.265 encoding technology, Dahua Lite series network camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better color image in the condition of low illumination.
• It supports SD card storage, dust-proof function, waterproof function and vandal-proof function, complying to the standards of IP67 and IK10 (Supported by some select models).

Functions

Smart Codec

• With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

WDR

• With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.

Starlight

• Dahua Starlight technology mainly applies to the environment of
• low illuminance, and it can provide clear colorful video. Even in the environment of ultra-low illuminance, the technology can guarantee the good image effect.

IVS

• With advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.

Protection (IP67, wide voltage)

• IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.
• Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Technical Specification

Camera

• Image Sensor : 1/2.7” 8Megapixel progressive CMOS
• Effective Pixels : 3840 (H) × 2160 (V)
• ROM : 128MB
• RAM : 256MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
• Min Illumination : 0.009 Lux@F2.0
• IR Distance : 30 m (98.43 ft)
• IR On/Off Control : Auto/Manual
• IR LEDs Number : 1
• Pan/Tilt/Rotation Range : Pan: 0°–360°
• Tilt: 0°–90° Rotation: 0°–360°

Lens

• Lens Type : Fixed-Focal
• Mount Type : M12
• Focal Length : 2.8mm 3.6mm
• Max Aperture : F2.O F2.O
• Field Of View : 2.8 mm: Pan 105° × Tilt 56° × Diagonal 125° 3.6 mm: Pan 87° × Tilt 47° × Diagonal 104°
• Iris Type : Fixed
• Close Focused Distance : 2.8 mm: 1.0 m (3.3 ft) 3.6 mm: 1.9 m (6.2 ft)

Smart Event

• General IVS Analytics : Tripwire, Intrusion

Video

• Video Compression : H.265; H.264; H.264B; MJPEG
• Smart Codec : Yes
• Video Frame Rate : Main stream; 3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps) Sub stream; 704 × 576 (1 fps–25 fps)
• Stream Capability : 2 Streams
• Resolution : 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate COntrol : CBR/VBR
• Video Bit Rate : H.264: 32 Kbps–8192 Kbps H.265: 12 Kbps–8192 Kbps
• Day/Night : Auto(ICR)/Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : 120 db
• White Balance : Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control : Auto/Manual
• Noise Reduction : 3D DNR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Region Of Interest (Rol) : Yes (4 areas)
• Smart IR : Yes
• Image Rotation : 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)
• Mirror : Yes
• Privacy Masking : 4 areas

Network

• Network : RJ-45 (10/100 Base-T)
• Protocol : IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
• Interoperability : ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
• User/Host : 20
• Edge Storage : Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
• Browser : IE Chrome FireFox
• Management Software : Smart PSS; DSS; DMSS
• Mobile Phone : IOS; Android

Certification

• Certifications : CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

• Power Supply : 12V DC/PoE (802.3af)
• Power Consumption : < 5.5W

Environment

• Operating Conditions : –40°C to +60°C (–40°F to +140°F)/less than ≤ 95% RH
• Storage Temperature : –40°C to +60°C (–40°F to +140°F)
• Protection Grade : IP67

Structure

• Casing : Metal
• Dimensions : 166.2 mm × Φ70 mm (6.54" × Φ2.76")
• Net Weight : 0.48 kg (1.1 lb)
• Gross Weight : 0.57 kg (1.3 lb)

Extra Information

• SKU: DHIPCHFW2831SPSS2
• Warranty: 2 Years
• Brand: Dahua
• Megapixel: 8
• Technology: IP
• Camera Type: Bullet
• Product Type: Camera
• PDF: View PDF
