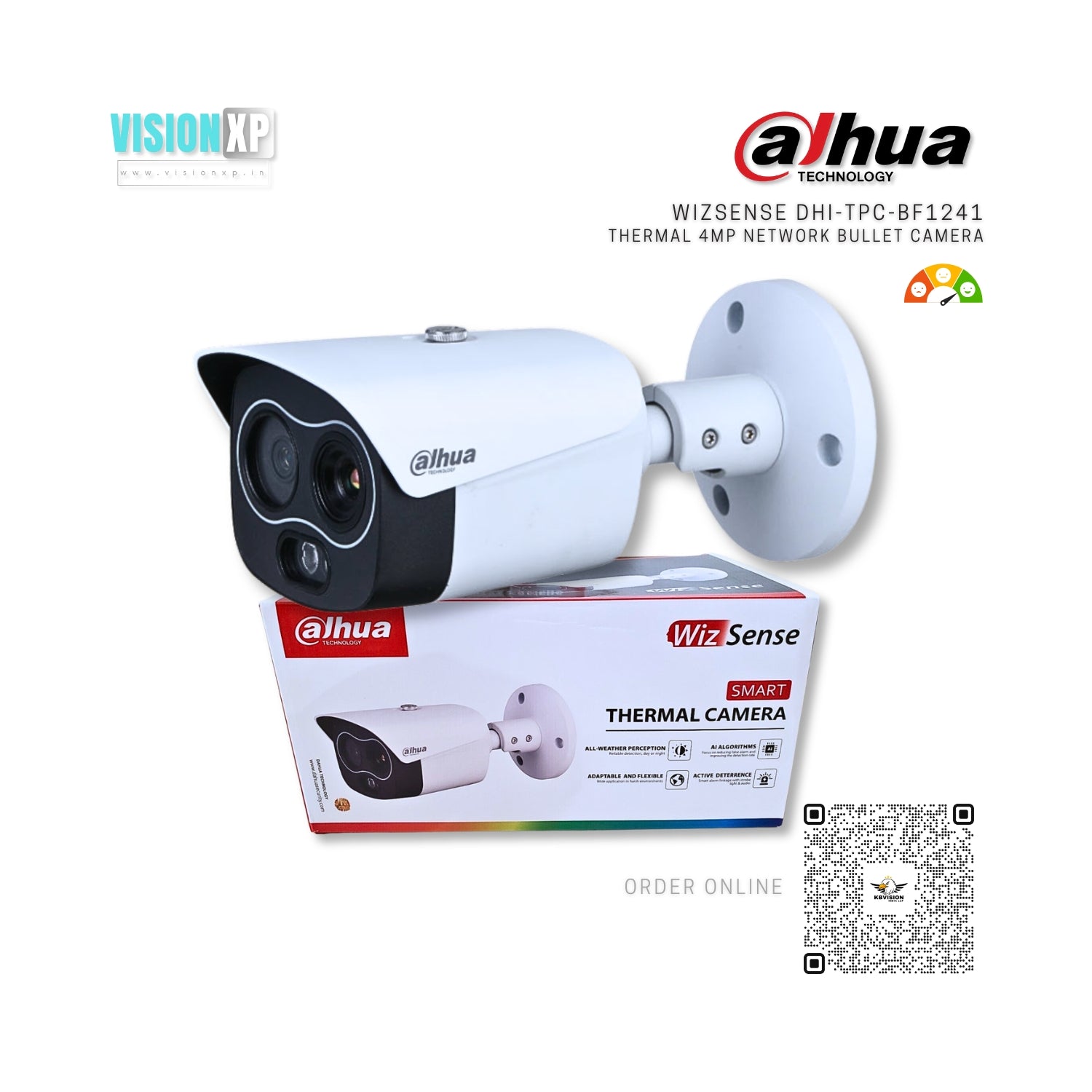

Dahua DHI-TPC-BF1241 WizSense Thermal 4Mp Network Bullet Camera

Name: Dahua DHI-TPC-BF1241 WizSense Thermal 4Mp Network Bullet Camera
Brand: Dahua
SKU: DHITPCBF1241
Price: 49709.0 INR
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: DHITPCBF1241

Available:

Only 7 items in stock

7 items in stock

In stock

Pre-order

Out of stock

Notes : ASK BEFORE ORDER!!

Dahua DH-TPC-BF1241

WizSense Thermal Network Bullet Camera

Key Features

Uncooled VOx thermal sensor technology
Athermalized lens (thermal camera), focus-free
1/2.7'' 4Megapixel progressive scan CMOS
Wi-Fi Optional
Support ROI, motion detection, color palettes
Smoking and call behaviour detection
Support fire detection & alarm
Built-in 1/1 alarm in/out
Micro SD memory, IP67, PoE
Smart linkage with strobe light & audio
Dual image fusion (visible and thermal images)

Rs. 49,709.00

~~Rs. 59,800.00~~

Want it delivered by

Data Sheet

Video

PDF

view pdf

Return & Refund Shipping Info

Description
Reviews

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

System Overview

Featuring a dual lens, fixed camera, this series provides an all-in-one solution for capturing video surveillance for indoor and outdoor applications. Together with Thermal and Visible Technology, the camera is the perfect solution for dark, small area monitoring applications. The series combines one thermal camera for monitoring in total darkness and one visible camera with Smart IR for confirming details.

Functions

Uncooled VOx Technology

Dahua thermal cameras use uncooled VOx sensor technology. Because of small size and better performance, it’s cost-effective solution for thermal security.

High Sensitivity

High thermal sensitivity (< 50 mK) makes cameras capture more image details and temperature difference information.

Fire Detection & Alarm

With built-in fire detect function, the camera has the ability to detect fire in a long distance. Thermal camera is sensitive to temperature, so the accuracy of fire detection will be higher than visible camera.

Intelligent Video System (IVS)

With built-in intelligent video analytics, the camera has the ability to detect and analyze moving objects for improved video surveillance. The camera provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as motion detection. IVS also supports tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed.

Smoking Detection

Dahua thermal camera can provide a real-time monitoring, in the use of deep-learning AI technology, to automatically detect people’s smoking behavior and provide intelligent voice and light warning (loudspeaker and white light, etc.) in an effort to dissuade smoker, and avoid potential risk and loss.

Environmental

With a temperature range of -30 °C to +60 °C ( -22 °F to +140 °F), the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.

Protection

Supporting ±20% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6kV lightning rating provides protectection against the camera and its structure from the effects of lightning.

Product Specifications

Thermal

Detector Type

Vanadium Oxide Uncooled FPA

Max. Resolution

256 × 192

Pixel Pitch

12 μm

Spectral Range

8 μm–14 μm

Thermal Sensitivity (NETD)

< 50 mK (@f/1.0,25Hz,300K)

Focal Length

3.5 mm

7 mm

10 mm

Field of View

H: 50.6°, V 37.8°

H: 24°, V: 18°

H: 17.3°, V: 13.1°

Close Focus Distance

0.5 m (1.64 ft)

1.0 m (3.28 ft)

2.0 m (6.56 ft)

Effective Distance
Human (1.8 m × 0.5 m)

D: 146 m (479 ft)

R: 38 m (125 ft)

I: 19 m (622 ft)

D: 292 m (958 ft)

R: 75 m (246 ft)

I: 38 m (125 ft)

D: 417 m (1368 ft)

R: 107 m (351 ft)

I: 54 m (177 ft)

Effective Distance

Vehicle (4.0 m × 1.4 m)

D: 389 m (1276 ft)

R: 97 m (318 ft)

I: 49 m (161 ft)

D: 778 m (2552 ft)

R: 194 m (636 ft)

I: 97 m (318 ft)

D: 1111 m (3645 ft)

R: 278 m (912 ft)

I: 139 m (456 ft)

Aperture

F1.0

Digital Detail
Enhancement (DDE)

Yes

Digital Zoom

16 ×

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

Image Flip

90°; 180°; 270°

Color Palettes

18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.)

Fusion Mode

3 (Warm color; cool color; Ironred)

Visible

Image Sensor

1/2.7'' CMOS

Max. Resolution

2336 × 1752

Pixel

4MP

Electronic Shutter Speed

1/30000 s–1 s

Min. Illumination

Color: 0.05 Lux

Black & white: 0.005 Lux

0 Lux (IR on)

IR Illumination Distance

≥ 30 m (98.43 ft)

IR Illuminator On/Off Control

Auto; Manual

Focal Length

4 mm

8 mm

12 mm

Aperture

F1.6

F2.0

Field of View

H: 71.2°

V: 52°

D: 92.6°

H: 33.4°

V: 25°

D: 41.9°

H: 22°

V: 16.6°

D: 26.9°

Focus Control

Fixed

Close Focus Distance

1.0 m (3.28 ft)

2.5 m (8.2 ft)

Day/Night

Auto (ICR); Color and B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/Natural

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥ 55 dB

Region of Interest (RoI)

Yes

Image Flip

90°; 180°; 270°

Exposure Compensation

Yes

Intelligence

General Intelligence

Tripwire, Intrusion

Advanced Intelligence

Fire Detection & Alarm
Cold & Hot Spot Trace
Human & Vehicle Classification

Smoking Detection

Call Detection

Video and Audio

Video Compression

H.265/H.264M/H.264H/H.264B/MJEPG

Resolution

Thermal:

Main Stream: 1280 × 960 (1.3M)/XVGA (1024 × 768)/VGA (640 × 480)/256 × 192, 1280 × 960 by default

Sub Stream: VGA (640 × 480)/256 × 192, 256 × 192 by default

Visual:

Main Stream: 2336 × 1752/1080P (1920 × 1080)/720P (1280 × 720)/D1 (704 × 576), 2336 × 1752 by default

Sub Stream: 720P (1280 × 720)/D1 (704 × 576)/CIF (352 × 288), 352 × 288 by default

Frame Rate

Thermal

50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default

60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Visual

50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default

60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Audio Compression

G.711a; G.711mu; PCM

Network

Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Edge Storage

Micro SD card (256 G)

Interoperability

ONVIF; CGI

Browser

IE: IE8 and the later, and explorer with IE core
Google: 42 and the earlier
Firefox: 42 and the earlier

User/Host

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

Certification

Certifications

CE: EN55032:2015; EN61000-3-2:2014

FCC:CFR 47 FCC Part15 subpart B; ANSI C63.4-2014

Port

Network

1 10M/100M Ethernet port (RJ-45)

Audio Input

Audio Output

Alarm Input

Alarm Output

RS-485

1 pair

Wi-Fi Optional

Standard No.:802.11

Frequency: 2.4GHz

Transmission rate: 150Mbps

Transmission distance: 150 m (no shield, no disturbance)

Power

Power Supply

12V±20% DC/PoE

Power Consumption

Basic: <8W (LED off)

Max: <14W (LED on, heater on)

Environment

Operating Temperature

–30°C to +60°C (–22°F to +140°F)

Storage Temperature

–30°C to +70°C (–22°F to ﹢158°F)

Operating Humidity

≤ 95%

Protection

IP67, anti-surge 6KV, anti-elctrostatic 6KV (touched by objects), anti-elctrostatic 8KV (air)

Structure

Product Dimensions

205.5mm × 90.4 mm × 90.1 mm (8.09'' × 3.56'' × 3.55'')

Packaging Dimensions

279 mm × 187 mm × 138 mm (10.98'' × 7.36'' × 5.43'')

Net Weight

≤ 0.9 kg (1.98 lb)

Gross Weight

≤ 1.3 kg (2.87 lb)

IVS Range

Focal Length

3.5 mm

7 mm

10 mm

Human (1.8 m × 0.5 m)

26 m

52.5 m

75 m

Vehicle (1.4 m × 4.0 m)

72.5 m

146.5 m

209 m

Accessories

PFA152-E (Optional)

Pole-mount bracket

PFA130-E (Optional)

Junction box

PFM320D (Optional)

Power adapter
