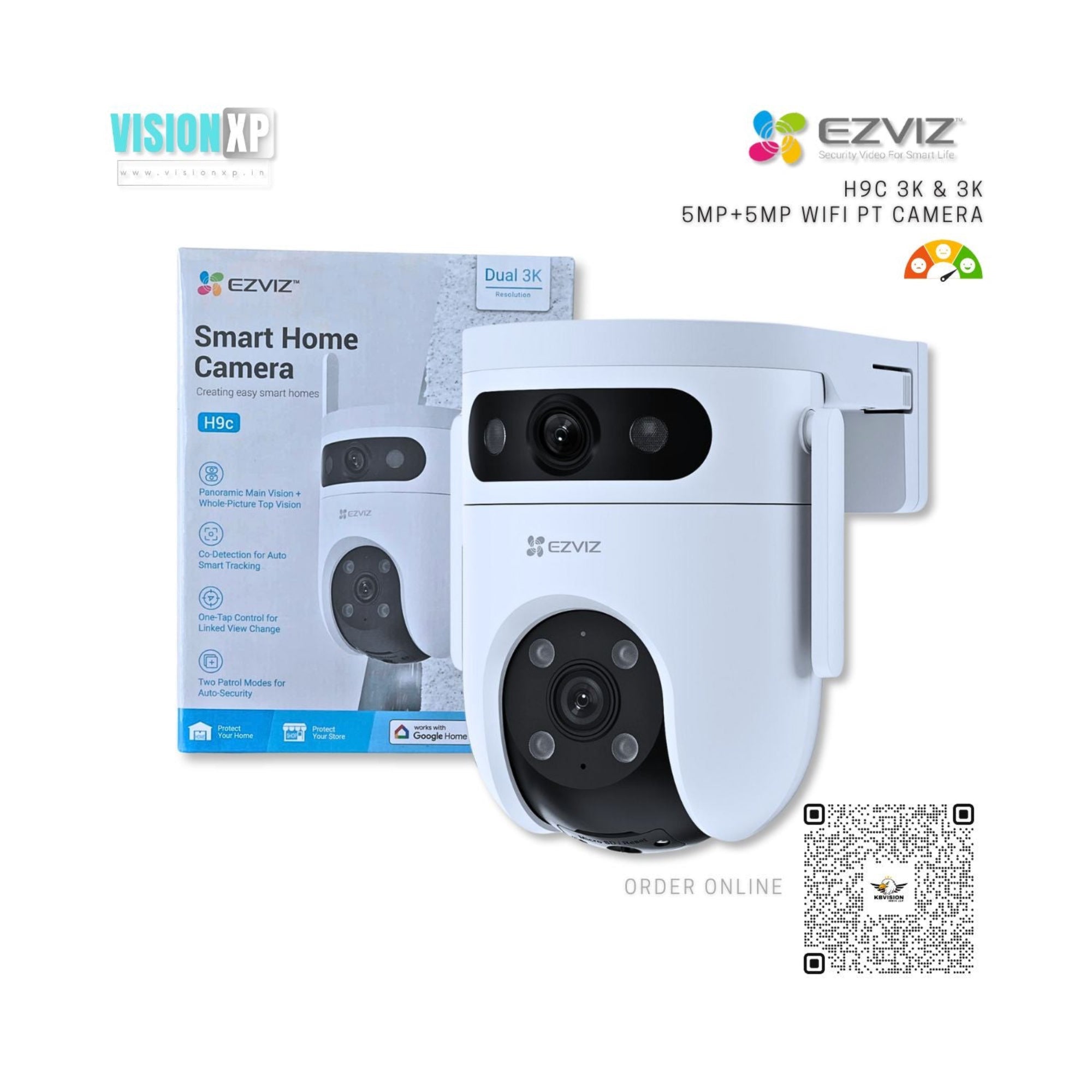

Ezviz H9c 3K + 3K (5MP + 5MP) 10mp Dual Dual-Lens Pan & Tilt Wi-Fi Smart Security Camera

Dual lenses. Double security.

• With EZVIZ’s unique dual-lens technology, the H9c provides unparalleled protection that’s beyond professional. It uses a wide-angle lens on top of a telephoto pan-and-tilt lens – the duo works independently or together in a way that is much smarter than your ordinary camera.

3K Wide-angle Lens

• Manually-adjustable 240° Horizontal Rotation 15° Tilting for Glare-free Viewing

3K Telephoto Lens

• Motorized Pan & Tilt for 360° View

See More

• Doubled views, clearer details

Function Smarter

• Interlinked co-detection, view change, and more

Worry Less

• Easy, automated area patrol

Next-level detection, unparalleled protection

• The H9c is equipped with dual-lens, co-enabled detection technology to safeguard even the most complex environments in a way that is tailored to your needs. You can use these advanced features at any time without committing to a subscription plan.
• AI-Powered Human/Vehicle Shape Detection (Available on Both Lenses)
• Customizable Detection Zones
• PT Lens Auto-Tracking (On Human Movements)
• AdjustableDetection Sensitivity
• Co-Detection for Interlinked Lens Auto-Actions
• NoSubscription Required its free

Face two directions, but follow the same activity

Even if the two lenses are set on opposite viewing angles to secure two different areas, they can complete a single smart tracking task through teamwork. When a human is detected by the upper lens, the PT lens will automatically rotate to such angle to lock on the person and record the whole activity.

Step 1 : The top lens

• detects a moving person in its ultra-wide 130° view

Step 2 : The bottom lens

• rotates and follows the moving person

Smarter alerts with upgraded vehicle detection

• It reduces alerts caused by falling leaves or flying insects, and informs you when someone parks in your property area without permission.

See much more than you can imagine

• A bigger space needs a wider view. That’s where the H9c 3K comes in handy. It can pan and tilt to take in a 360-degree field-of-view, and render details in 3K resolution to capture crucial moments clearly.

Click to check, with both wide and close-up views

• Understand the whole, big picture while paying attention to the important details, by using the EZVIZ App. You can tap the area of interest on the wide-angle viewing box, so a close-up view will be shown on the side at the same time.

Or, let the H9c 3K patrol smartly, so you don’t have to

• On set time intervals, the lower lens can complete rotational check-ups to eliminate blind spots. You can customize patrol routes for tailored focuses, or simply ask it to complete a full-circle spin.

Designed to make protection last all night

• Impressive, far- reaching color night vision1, with 4 built-in spotlights, Three useful night vision modes will suit any need

More convenience for various needs

High-quality audio to respond & warn

• Easily respond to any visitor by simply using your phone to speak remotely. The camera can also auto-play a recorded voice message when a motion is detected.

Active defense to deter & safeguard

• Upon detection of intruders, the camera will set off a loud siren and flash dazzling spotlights2 to let the invited strangers know they have been detected.

Powerful antennas, stable connection

• It boosts up to 220 m Wi-Fi coverage thanks to its high-performance dual antennas6. It also offers wired options for further convenience.

A neat design against all weathers

• The H9c 3K has a compact design, and is weatherproof to deliver long-standing performance, even in harsh weather conditions.

Smart integration for hands-free control

• The camera supports easy integration to your existing voice assistants. You can pull up the video feed by simply saying “Alexa” or “Hey Google”.4

H.265 for enhanced video experience

• The H.265 creates a smoother viewing experience while only using about 50% of the data storage space required by cameras with H.264.3

Versatile setups for almost any location

• Install the H9c 3K at the best spot you'd find to eliminate blind spots. Wall Mount | Ceiling Mount | Pole Mount (sold separately)

Large, safe storage options that you can trust

• You can secure your recorded videos on a local microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted cloud storage | Supports MicroSD Card | Supports EZVIZ CloudPlay Storage

We do our best to protect data and privacy

• EZVIZ has been awarded by DNV for information security (ISO/IEC 27001:2013), personal data protection (ISO/IEC 27701:2019), cloud security (CSA STAR) and more.
• If the two lenses point in the same direction, the maximum color night vision range is 40 meters. If this is not the case, the maximum distance is 30 meters, based on EZVIZ Lab test results under standard conditions.
• The spotlights will not flash when the color night vision mode is enabled.
• Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, as well as other environmental factors.
• Google Assistant is not available in some languages and countries.
• A local storage card must be purchased separately. Cloud storage service is only available in certain markets. Please verify the availability before making any purchase. 6 Data from EZVIZ Lab’s test results in open environment. Will vary with the Wi-Fi frequency, camera location, the transfer technology, and other environmental factors.

Specifications Model CS-H9c-R100-8G55WKFL

Camera

• Image Sensor : 1/2.7” Progressive Scan CMOS
• Shutter Speed : Self-adaptive shutter
• Lens : Fix Lens: 2.8mm@ F1.6, viewing angle: Diagonal 132°, Horizontal 110°, vertical 58° Pan&Tilt Lens: 6mm@F1.6, viewing angle: Diagonal 64°, Horizontal 56°, vertical 29°
• PT Angle : Pan: 350°, Tilt: 80°
• Minimum Illumination : 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
• Lens Mount : M12
• Day & Night : IR-cut filter with auto-switching
• DNR : 3D DNR
• WDR : Digital WDR
• Black & White Night Vision : 30m / 98ft

Video & Audio

• Max Resolution : 2880 × 1620
• Frame Rate : Max:15fps; Self-Adaptive during network transmission
• Video Compression : H.265 / H.264
• H.265 Type : Main Profile
• Video Bit Rate : Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
• Audio Bit Rate : Self-Adaptive

Network

• Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n
• Frequency Range : 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth : Supports 20MHz
• Security : WPA-PSK/WPA2-PSK
• Transmission Rate : 11b: 11Mbps, 11g: 54Mbps,11n: 150Mbps
• Wi-Fi Pairing : AP pairing
• Protocol : EZVIZ Cloud Proprietary Protocol
• Interface Protocol : EZVIZ Cloud Proprietary Protocol
• Wired Network : RJ45 × 1(10M/100M Adaptive Ethernet Port)

Function

• Smart Alarm : AI-Powered Human / Vehicle Shape Detection /Motion Detection
• Auto Tracking : Supports
• Customized Alert Area : Supports
• Two-way Talk : Supports
• Preset Locations : Supports
• General Function : Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage

• Local Storage : Micro SD Card Slot (Up to 512GB)
• Cloud Storage : EZVIZ Cloud Storage

General

• Operating Conditions : -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)
• IP Grade : Weatherproof Design
• Power Supply : DC 12V/1.5A
• Power Consumption : MAX. 12W
• Dimensions : 145 × 116 × 192 mm(5.71 × 4.57 × 7.56 inch)
• Packaging Dimensions : 150 × 150 × 194 mm(5.90 × 5.90 × 7.64 inch)
• Weight : Net Weight: 668 g With Package: 960 g

In the box

• H9c Camera (x1)
• Drilling Template (x1)
• Waterproof Kit (x1)
• Screw Kit (x1)
• Power Adapter (x1)
• Regulatory Information (x2)
• Quick Start Guide (x1)

Certifications

• CE / UKCA/WEEE / RoHS / REACH

Extra Information

• SKU: H9C3K3K
• Warranty: 1 Year
• Brand: Ezviz
• Megapixel: 5+5 Megapixel
• Technology: IP
• Camera Type: Special Camera
• Product Type: Camera
