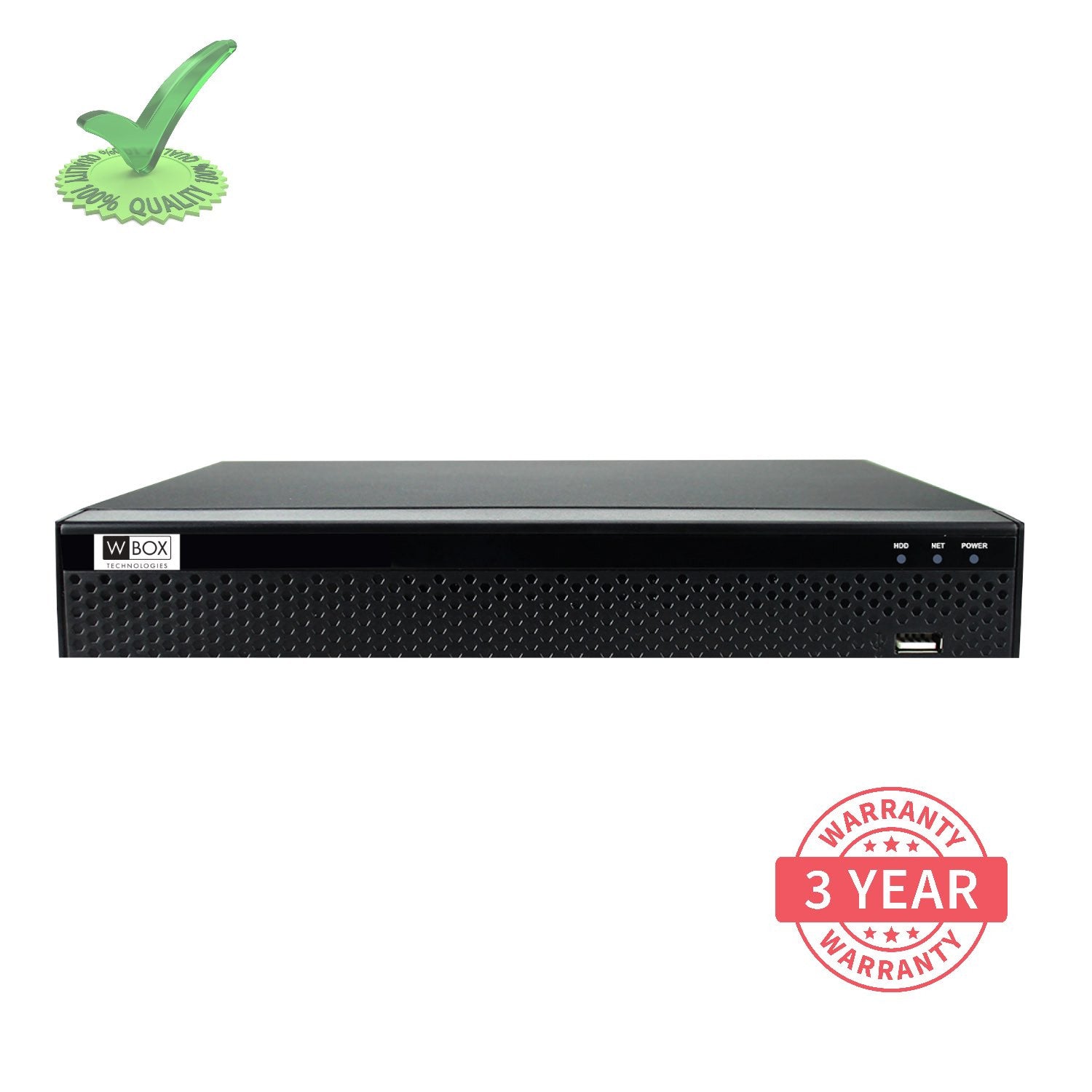

W Box WBC0E-CLNM09T1 9channel 1sata 5mp Nvr

WBox WBC0E-CLNM09T1 9channel 1sata 5mp Network Video Recorder

WBOX NVR supports IP channels to effortlessly connect. WBC0E-CLNM09T1 model supports up to 9 channels of IP inputs. It has 9 channels split screen for local live-view and maximum 4 playback channels. NVR supports P2P connectivity and can be accessible from Android and I Phone app. It is ideal for a wide range of applications such as public safety, retail store, home protection and education.

Specifications

Model : WBC0ECLN09T1

System

• Operating system : Embedded LINUX

Video

• Input : 9CH (2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
• Output : 1 VGA, 1 HDMI

Audio

• Output : 1 Port 3.5mm (Linear, 1kΩ)
• Audio Bit Rate : 64kbps
• Audio Compression standard : G711u, G711a, G726

Alarm

• Motion Detection : 9 Channel, MD Zones: 396 (22 × 18)
• Trigger Events : Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output

Display

• HDMI1 : Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA : Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Display Split : 9CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP
• Digital Zoom : YES
• OSD : Camera Title, Time, Recording, Motion Detection

Recording

• Video Compression : H265/H264/H265+/H264+
• Resolution : 5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080) ,960P(1280x960),720P(1280×720),D1 (720×576/720×480)
• Record Rate : PAL :5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp NTSC: 5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp
• Record Mode ; ManualTimerMotion Detection

Playback & Backup

• Local Sync Playback : 1CH 5MP@25fps, 1CH 4MP@25fps, 2CH 3M@25fps, 4CH 1080P@20fps, 4CH 960P@25fps, 4CH 720P@25fps
• Decode Capability : 4CH 1080P@20fps
• Remote Sync Playback : Yes
• Search Mode : ALL, Channel, Manual, Time, Date, Motion Detection
• Playback Functions : Play, Pause, Stop, Fast Play, Digital Zoom
• Backup Mode : USB Device/Network

Network

• Interface : 1 RJ45 10M/100M Adaptive Ethernet Interface
• Incoming Bandwidth : 60Mbps
• Outgoing Bandwidth : 48Mbps
• Network Functions : TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
• Onvif Version : Support Onvif 2.4
• Web Browser : IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
• CMS Software : Support Windows 7/ Windows 8/Windows 10
• Cloud Support(P2P) : YES
• Smart Phone : Android & iPhone

Storage

• Interface Type : 1 SATA Interface
• Capacity : Up to 6TB capacity

General

• Language : Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek
• USB Interface : 2 USB 2.0 Interfaces
• Power Supply : DC12V/2A
• Working Environment : -10~55°C/10~90%
• Dimension(W×D×H) : 260*215*43(mm)
• Weight : 2KG (without HDD)

Extra Information

• SKU: WBC0ECLNM09T1
• Warranty: 3 Years
• Brand: W Box
• Technology: IP
• Product Type: NVR
• PDF: View PDF
