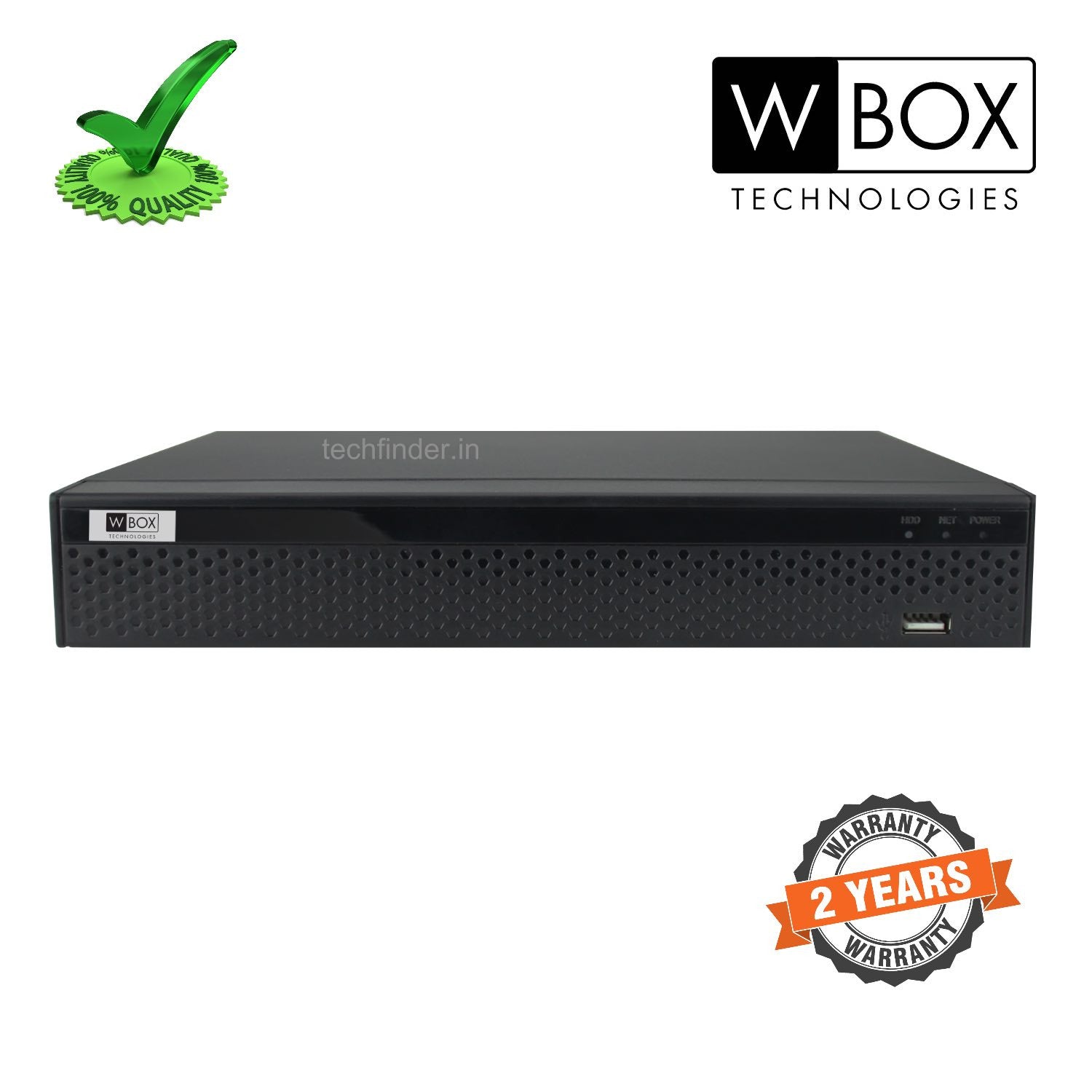

W Box WBC0E-CLDM08X1 8Ch 5mp 16ip 8TB 1 Sata AHD DVR

W box DVR supports multiple connectivity technology such as HDCVI, AHD, TVI, CVBS and IP to effortlessly integrate multiple cameras. WBC0E-CLDM08X1 model supports up to 8 channels of HDCVI/AHD/TVI/CVBS inputs and maximum 16 channels IP cameras in pure IP mode, there is a mixed mode to have multiple analog and IP camera. It has 36 channels split screen for local live-view and maximum 8 playback channels in pure analog. Designed as a full compatible product, W Box DVR is able to provide end user the simplicity of analog system, low in cost, simple installation and use of existing coaxial cable. DVR supports P2P connectivity and can be accessible from Android and I Phone app. It is ideal for a wide range of applications such as public safety, retail store, Residential and education.

Specifications

System

• Model : WBC0E-CLDM08X1
• Operating system : Embedded LINUX

Video

• Input : Normal Mode: Analog: 8*(AHD/TVI/CVI:8M; TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H) Lite Mode: Analog: 8*(AHD/TVI/CVI: 1080P/720P; Analog: 960H) Analog+Network: 6*Analog(1080P)+3*network(Max 8MP), 4*Analog(1080P)+5*network(Max 8MP),2*Analog (1080P)+7*network(Max 8MP) Network: 16*8MP/5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth ≤80M)
• Input : 8CH BNC
• Signal Type : Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
• Output : 1 HDMI,1 VGA

Audio

• Input : 4Channel, RCA
• Output : 1 Channel, RCA

Digital Alarm

• Motion Detection : 16 Channel(max 32 Channel in pure network mode)
• Trigger Events : Recording, Alarm, Email, Screen tips, Buzzer
• Email Alarm : Send Image to The Designated E-mail

PTZ

• Interface : Rs485
• Protocol : Pelco-D, Pelco-P
• Baud Rate : 110~921600
• Address : 0~255

Display

• VGA : Resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
• HDMI : Resolution: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
• Display Split : 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
• Privacy Masking : 3 Rectangular Zones (Each camera)
• OSD : Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

• Video Compression : H.265/H.265+/H.264/H.264+
• Audio Compression : G711u
• Encode Resolution : 5MP(2592×1944),5MP_HALF(1296×1944),4MP(2560×1440),4MP_ HALF(1280×1440),3MP(2048×1536),1080P(1920×1080), 720P(1280×720),960H(P:960×576/N:960×480)
• Video Quality : worst/worse/ordinary/well/best
• Record Rate  :Normal Mode: Analog: PAL:8MP_LITE(1920×2160 8*8fps),5MP(2592×1944 8*6fps), 5MP_LITE(1296×1944 8*10fps),4MP(2560×1440 8*8fps),4MP_LITE (1280×1440 8*15fps),3MP(2048×1536 8*9fps),1080P (1920x1080 8*15fps),720P(1280×720 8*25fps), 960H(960×576 8*25fps) Lite Mode:Analog: Half 1080P(960x1080 8*25fps),720P(1280×720 8*25fps), 960H(960×576 8*25fps) Pure IP(H.265): PAL :4k@8x25fps, 5MP@12x25fps,4MP@16x25fps, 3MP@16x25fps, 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps

Record Mode

• Decode Capability : 4CH 1080P@25fps
• Sync Playback : Pure Analog: 8CH 5M@6fps, 4CH 8M_Lite@8fps, 8CH 4M@8fps, 8CH 3M@9fps, 8CH 1080P@15fps, 8CH 1080N@25fps Mix Mode: 4CH 5M@6fps, 4CH 4M@8fps, 4CH 3M@9fps, 4CH 1080P@ 15fps,1CH 8MP@25fps,2CH 5MP@25fps,2CH 4MP@25fps,2CH 3MP @25fps Pure IPC: 1CH 4K@25fps, 2CH 5MP@25fps, 3CH 4MP@25fps, 4CH 3M@25fps, 4CH 1080P@25fps, 4CH 960P@25fps, 4CH 720P@25fps
• Remote Playback : 4 Channel / 1 Channel
• Search Mode : ALL, Channel, Manual, Time, Date, Motion Detection
• Playback Functions : Play, Pause, Stop, Fast play, Rewind
• Smart Phone Playback : 4 Channel
• Backup Mode : USB Device/Network

Network

• Interface : 1 RJ45 10M/100 Adaptive Ethernet Interface
• Network Functions : TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
• DDNS : Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE
• Web Browser : IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
• CMS Software : Support Windows 7/ Windows 8/Windows 10
• Extra Stream : CIF(1~25fps)
• Smart Phone : iPhone & Android

Hard Disk Driver

• Interface Type : 1 SATA Interface
• Capacity : 2.5"/3.5" SATA, Up to 8TB

General

• Language : Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
• UTC Control : YES
• USB Interface : 2 USB 2.0 Interfaces
• Power consumption : DC 12V ≤10W (Without Hard Disk)
• Working Environment : -10~55°C/10~90%
• Dimension (W×D×H) : 260 x 215 x 43(mm)
• Weight : 2.0kg (Without HDD)

Extra Information

• SKU: WBC0ECLDM08X1
• Warranty: 3 Years
• Brand: W Box
• Technology: Analogue
• Product Type: DVR/XVR
