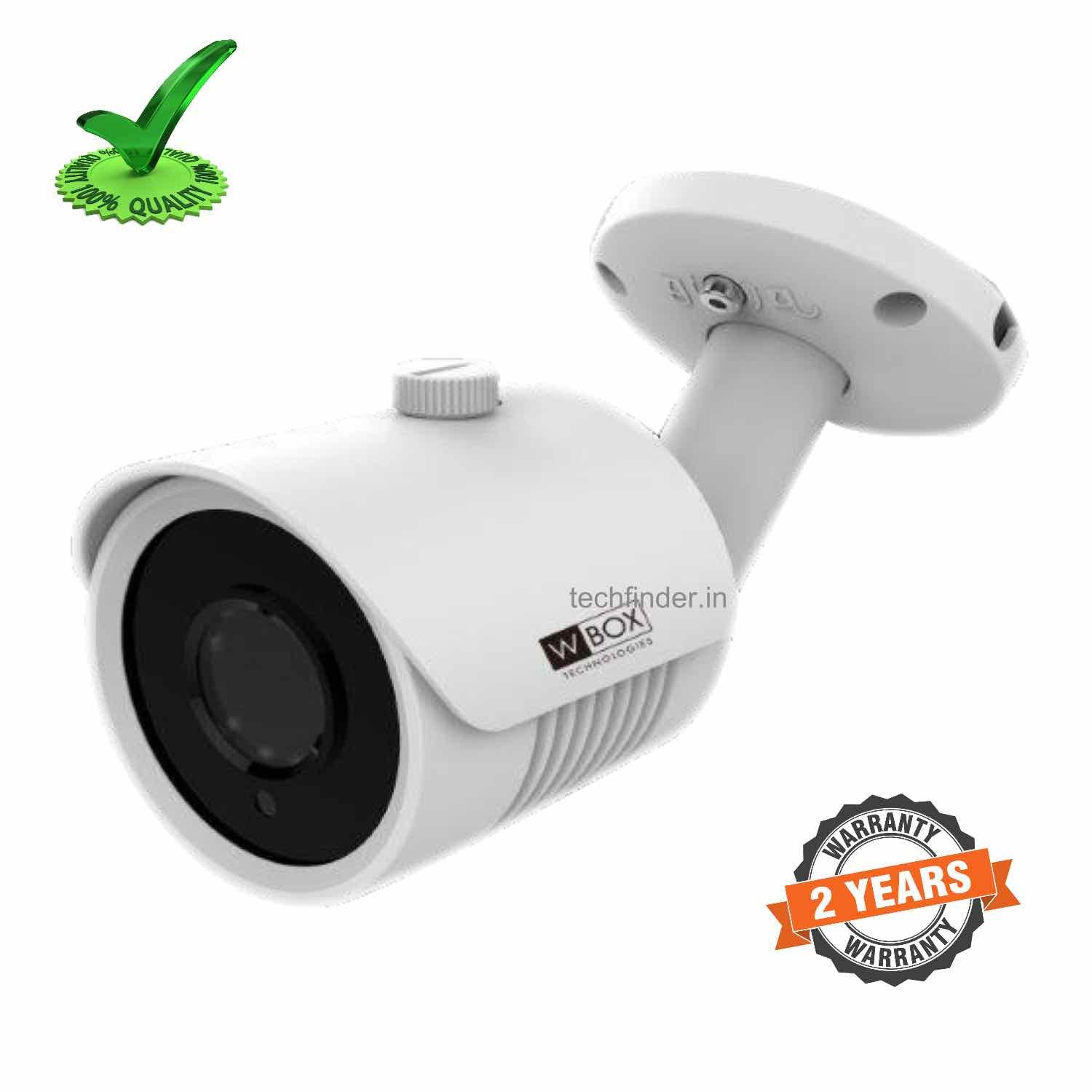

W Box WBC-0ECLHB5R3FME AHD 5mp Metal Body IR Bullet Camera

The WBC-0ECLHB5R3FME is a 5 MP full HD resolution metal body IR Bullet Camera constructed with a 3.6mm Lens with switchable AHD/CVI/TVI/CVBS video outputs. IR LEDS provide 25M IR viewing distance. Camera comes with OSD which allows video quality adjustment PART# : WBC-0ECLHB5R3FME Length : 157(W) x 70(H) X 66(D)mm Weight : 650g

Specifications

Model : WBC-0ECLHB5R3FME

Camera

• Image Sensor : 1/2.5" CMOS Sensor
• Resolution : 5MP:2592*1944 4MP:2560*1440
• Video Output : AHD/TVI: 5M@20fps/12.5fps, 4M@25fps/15fps, 2M@25fps; CVI: 4M@25fps, 2M@25fps
• TV System : PAL/NTSC
• Electronic Shutter Time : 1/25s~1/50,000s , 1/30s~1/60,000s
• S/N Ratio : ≥50dB
• Scanning System : Progressive Scan

Lens

• Focus Length : 3.6mm
• Lens Type : Fixed

Night Vision

• Infrared LED ; 14μ x 20PCS
• Infrared Distance : 25M

Camera Features

• Day/Night : Yes
• OSD Support : Yes
• White Balance : Auto/Manual
• Gain Control : Auto
• Noise Reduction : DNR
• Picture Adjustment : Yes
• DWDR : Yes

Weight

• Housing : Metal, IP66
• IR Cut Filter : Yes
• Operation Temperature : -10°C ~ +50°C RH95% Max
• Power Source : DC12V±10%, 600mA
• Dimension : 157(W) x 70(H) x 66(D)mm
• Weight : 650g

Extra Information

• SKU: WBC0ECLHB5R3FME
• Warranty: 2 Years
• Brand: W Box
• Megapixel: 5 Megapixel
• Technology: Analogue
• Camera Type: Bullet
• Product Type: Camera
• PDF: View PDF
