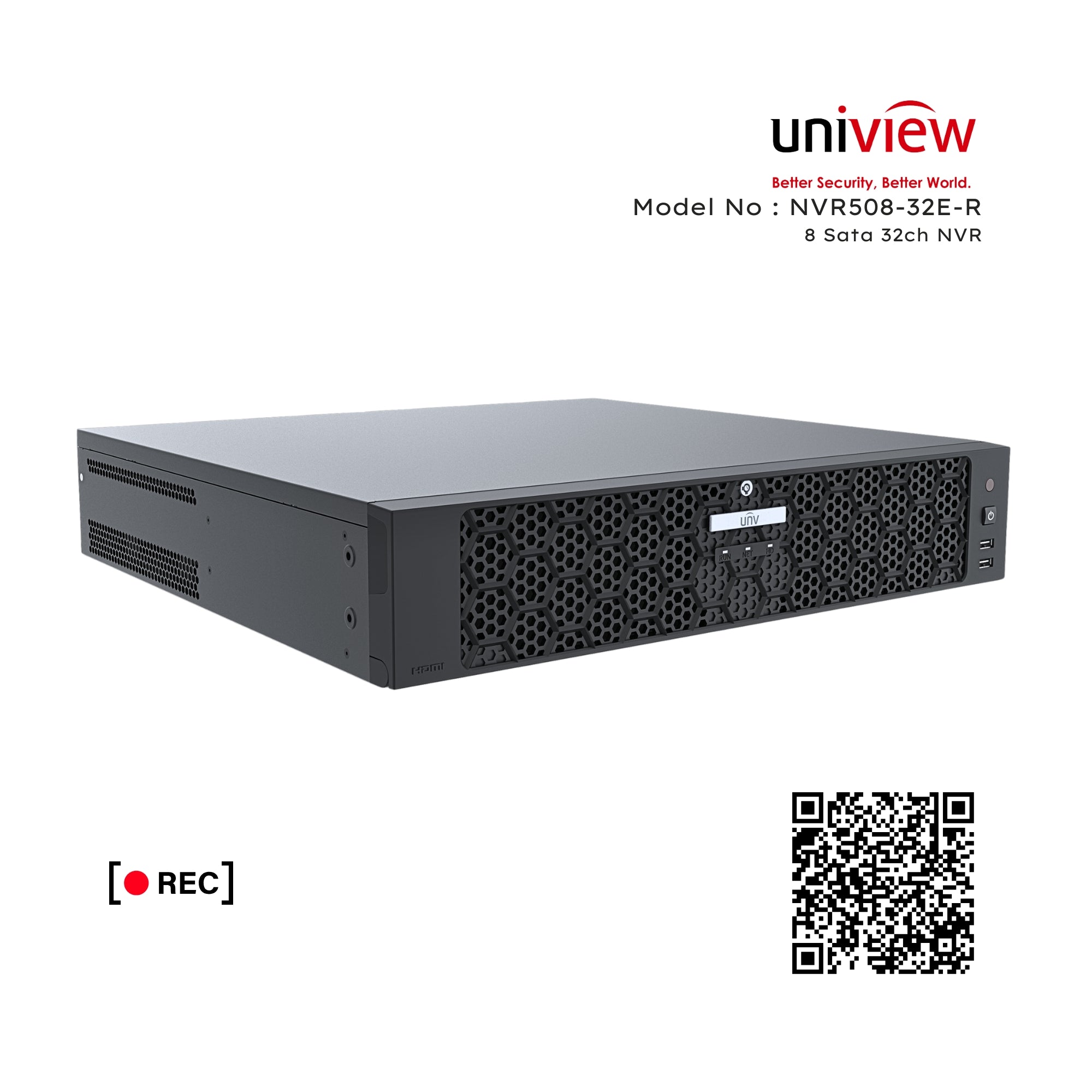

UNV Uniview NVR508-32E-R Series 8 Sata 32Ch NVR Network Video Recorder
Key Features
- Support Ultra 265/H.265/H.264 video formats
- 32/64/128-channel input
- Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
- Up to 32 Megapixels resolution recording
- Support N+1 Hot spare
- Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
- Redundant power supply optional
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
|
Model |
NVR508-32E-R |
NVR508-64E-R |
NVR508-128E-R |
|
Decoding |
|||
|
Decoding Format |
Ultra 265, H.265, H.264 |
||
|
Decoding Capability |
2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30 |
2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30 |
2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30, 128 x D1 |
|
Decoding Capability Description |
The resolution of each channel cannot exceed 8192 pixels in length or width |
||
|
Audio Compression |
G.711A, G.711U |
||
|
Network |
|||
|
Incoming Bandwidth |
384 Mbps |
||
|
Outgoing Bandwidth |
384 Mbps |
||
|
Remote Users |
128 |
||
|
Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
||
|
Browser (Plugin) |
IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
||
|
Video/Audio Input |
|||
|
RCA Audio Input |
1-ch |
||
|
Video/Audio Output |
|||
|
HDMI Output |
4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
||
|
VGA Output |
1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
||
|
RCA Audio Output |
2-ch |
||
|
Liveview Display |
1/4/6/8/9/16/25/32 |
HDMI1/VGA1:1/4/6/8/9/16/25/ 36/64, HDMI2/VGA2:1/4/6/8/9/16/25/ 36 |
HDMI1/VGA1:1/4/6/8/9/16/25/ 36/64, HDMI2/VGA2:1/4/6/8/9/16/25/ 36 |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16/32 |
||
|
Two-way Audio |
|||
|
Two-way Audio |
1-ch, RCA (Using the audio input and output) |
||
|
Snapshot |
|||
|
FTP/Schedule/Event Snapshot |
16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
||
|
Recording |
|||
|
Recording Resolution |
32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
||
|
Synchronous Playback in Local |
16-ch |
||
|
Smart |
|||
|
VCA Detection by IPC |
Face Detection, Face Comparison, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring |
||
|
VCA Search |
Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
||
|
Smart by IPC |
All channels (up to 16 images/s in total)Face Detection, Face Comparison, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
||
|
Vehicle Picture Library |
Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
||
|
Alarm |
|||
|
General Alarm |
Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
|
Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|
GUI Language |
|
|
GUI Language |
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
|
Hard Disk |
|
|
SATA |
8 SATA Interfaces |
|
Capacity |
Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
|
Disk Group |
Support |
|
Disk Array Type |
RAID 0, 1, 5, 6, 10 |
|
Hot Swap |
Support |
|
External Interface |
|
|
Network Interface |
2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
|
USB |
Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0 |
|
RS485 |
1 |
|
RS232 |
1 |
|
Alarm In |
16-ch |
|
Alarm Out |
10-ch |
|
eSATA |
1 |
|
Power Output |
12 V |
|
Power Supply |
AC 100 to 240 V |
|
Working Environment |
|
|
Working Temperature |
-10 ℃ to 55 ℃ (14 ℉ to 131 ℉) |
|
Working Humidity |
≤ 90% RH (non-condensing) |
|
Power Consumption (without HDD) |
≤ 35W |
|
Dimensions |
|
|
Weight (without HDD) |
≤ 6Kg (13.23lb) |
|
Dimensions |
442mm × 448mm × 93mm (17.4" × 17.6" × 3.7") |
|
Certification |
|
|
Certification |
CE; FCC; UL; RoHS; WEEE |
|
CE |
EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
|
FCC |
Part15 Subpart B |
|
