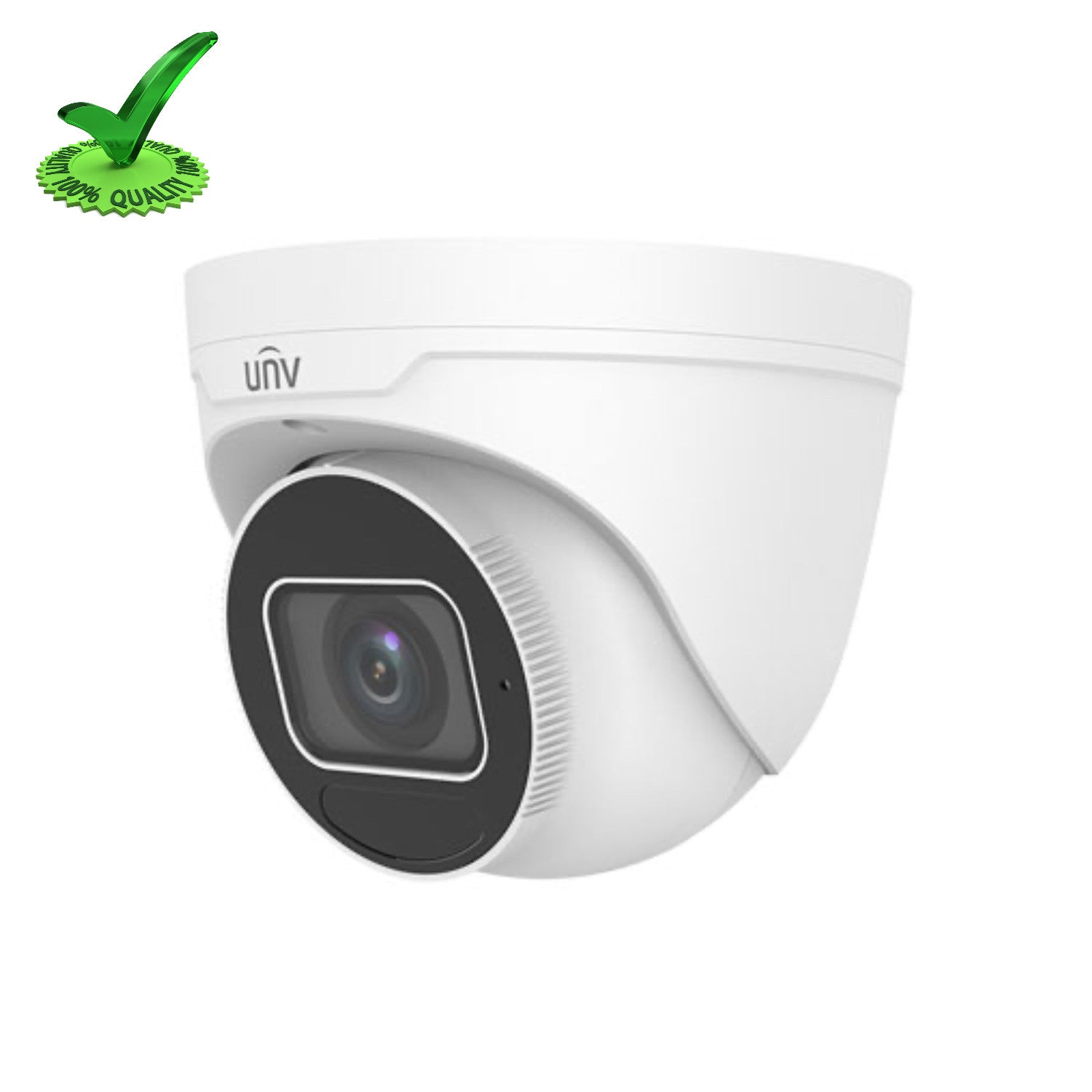

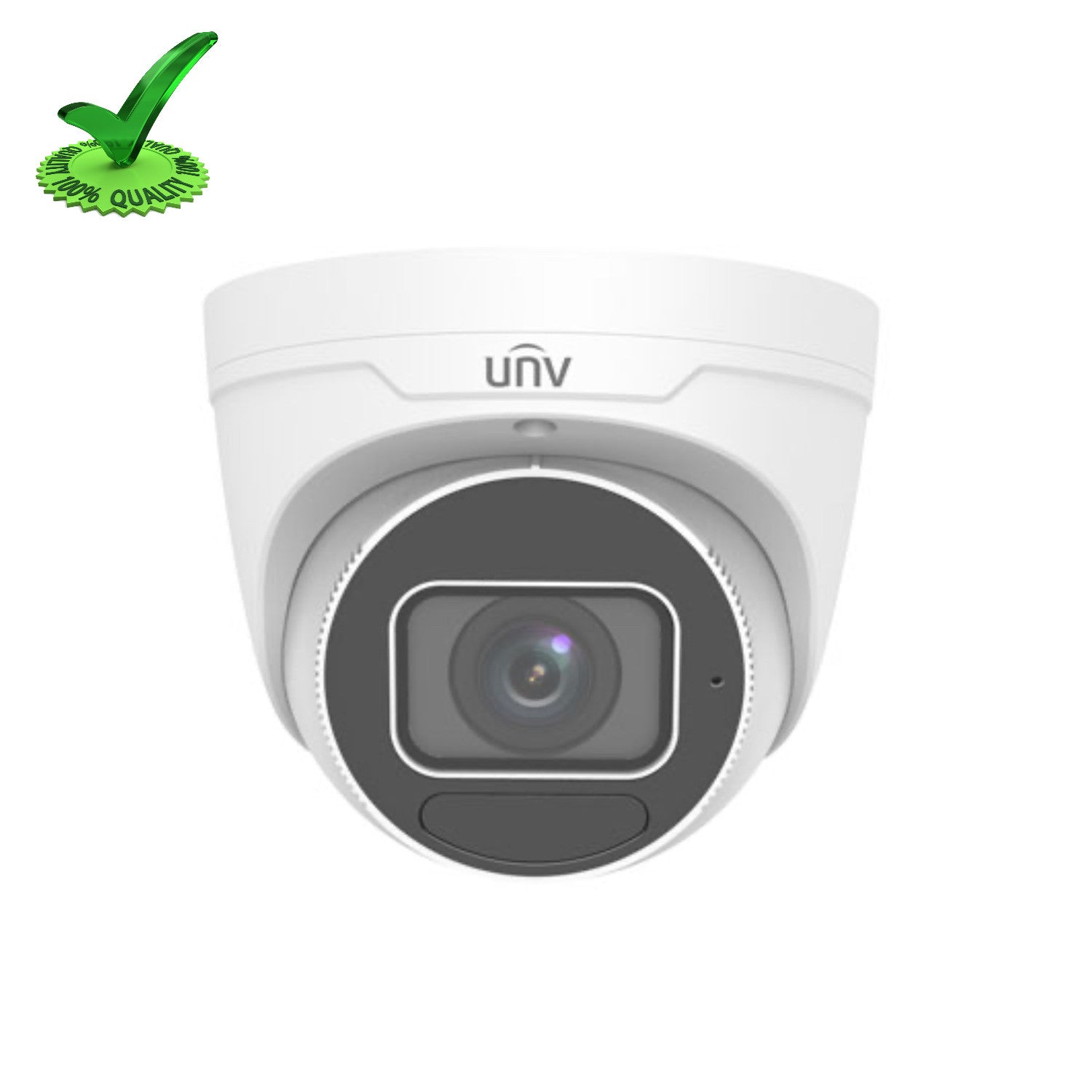

Uniview IPC3635SB-ADZK-I0 4MP IP Network IR Dome Camera

Specifications

Camera

• Sensor : 1/2.7", 5.0 megapixel, progressive scan, CMOS
• Lens : 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
• Angle of view (H) : 106.25°~ 30.42°
• Angle of View (V) : 56.36°~ 17.22°
• Angle of View (O) : 110.34°~34.18°
• Adjustment angle : Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotate: 0° ~ 360°
• Shutter : Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination : Colour: 0.002Lux (F1.2, AGC ON) 0Lux with IR
• Day/Night : IR-cut filter with auto switch (ICR)
• Digital Noise Reduction : 2D/3D DNR
• S/N : >56dB
• IR Range : Up to 40m (131ft) IR range
• Wavelength : 850nm
• IR On/Off Control : Auto/Manual
• Defog : Digital Defog
• WDR : 120dB

Video

• Video Compression : Ultra 265,H.265, H.264, MJPEG
• H.264 code profile : Baseline profile, Main profile, High profile
• Frame Rate : Main Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P  (1920*1080), Max 30fps;  Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps;  CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate : 128 Kbps~16 Mbps
• OSD : Up to 8 OSDs
• Privacy Mask : Up to 4 areas
• ROI : Up to 8 areas
• Motion Detection : Up to 4 areas


• White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Smart IR : Support
• Flip : Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping : N/A
• HLC : Supported
• BLC : Supported

Audio

• Audio Compression : G.711
• Suppression : Supported
• Sampling Rate : 8KHZ

Storage

• Edge Storage : Micro SD, up to 256GB
• Network Storage : ANR

Network

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP
• Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API
• Client : EZStation  EZView EZLive
• Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Built-in Mic : Supported
• Network : 1 RJ45 10M/100M Base-TX Ethernet

Certifications

• Certifications : CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15

General

• Power : DC 12V±25%, PoE (IEEE 802.3af)Power consumption: Max 7.0 W
• Dimensions (Ø x H) : Φ129 x 110mm (Ø5.1” x 4.3”)
• Net Weight : 0.70kg (1.52lb)
• Material : Metal
• Working Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection : 6KV
• Ingress Protection : IP67
• vandal resistant : IK10
• Reset Button : Supported

Extra Information

• SKU: IPC3635SBADZKI0
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 4
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
