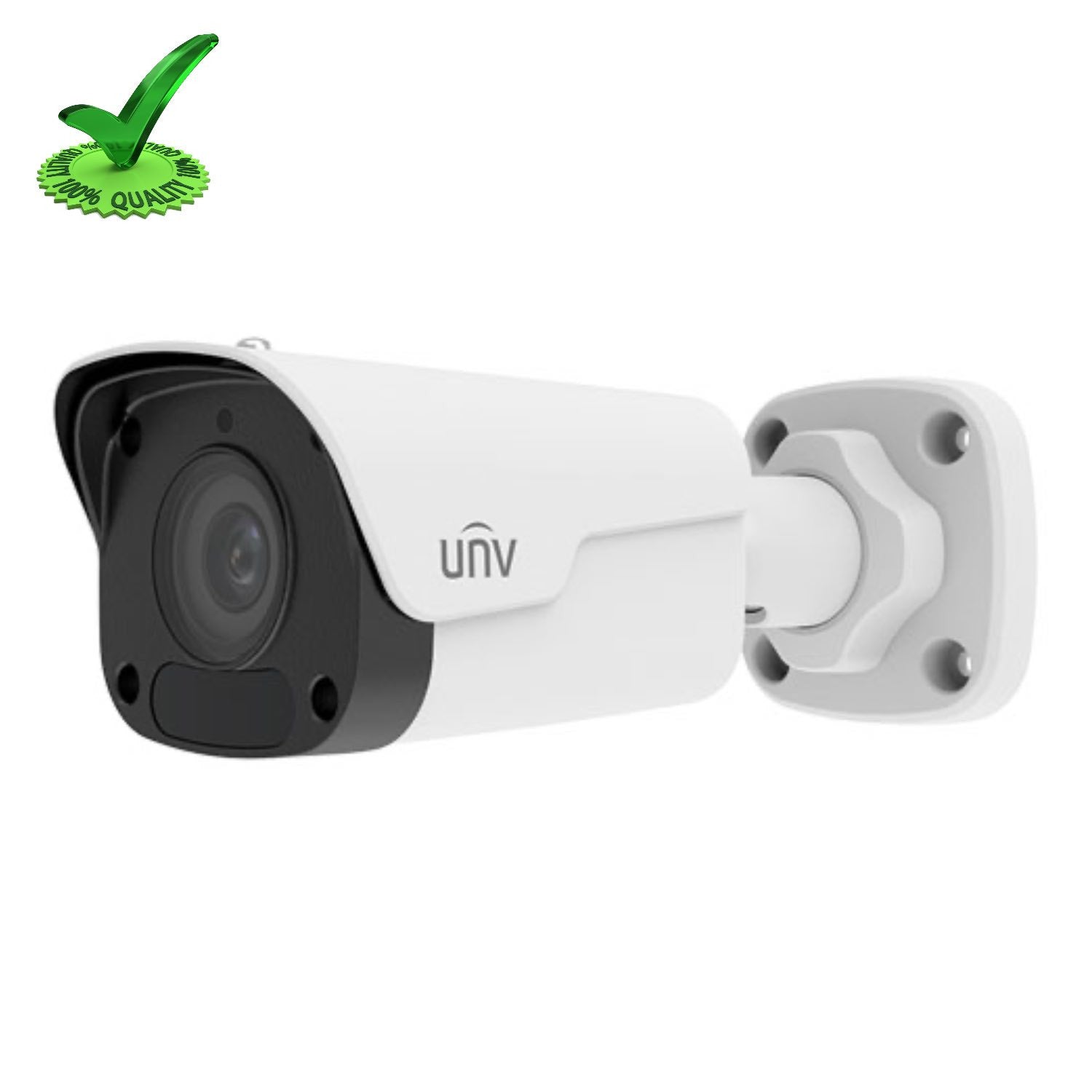

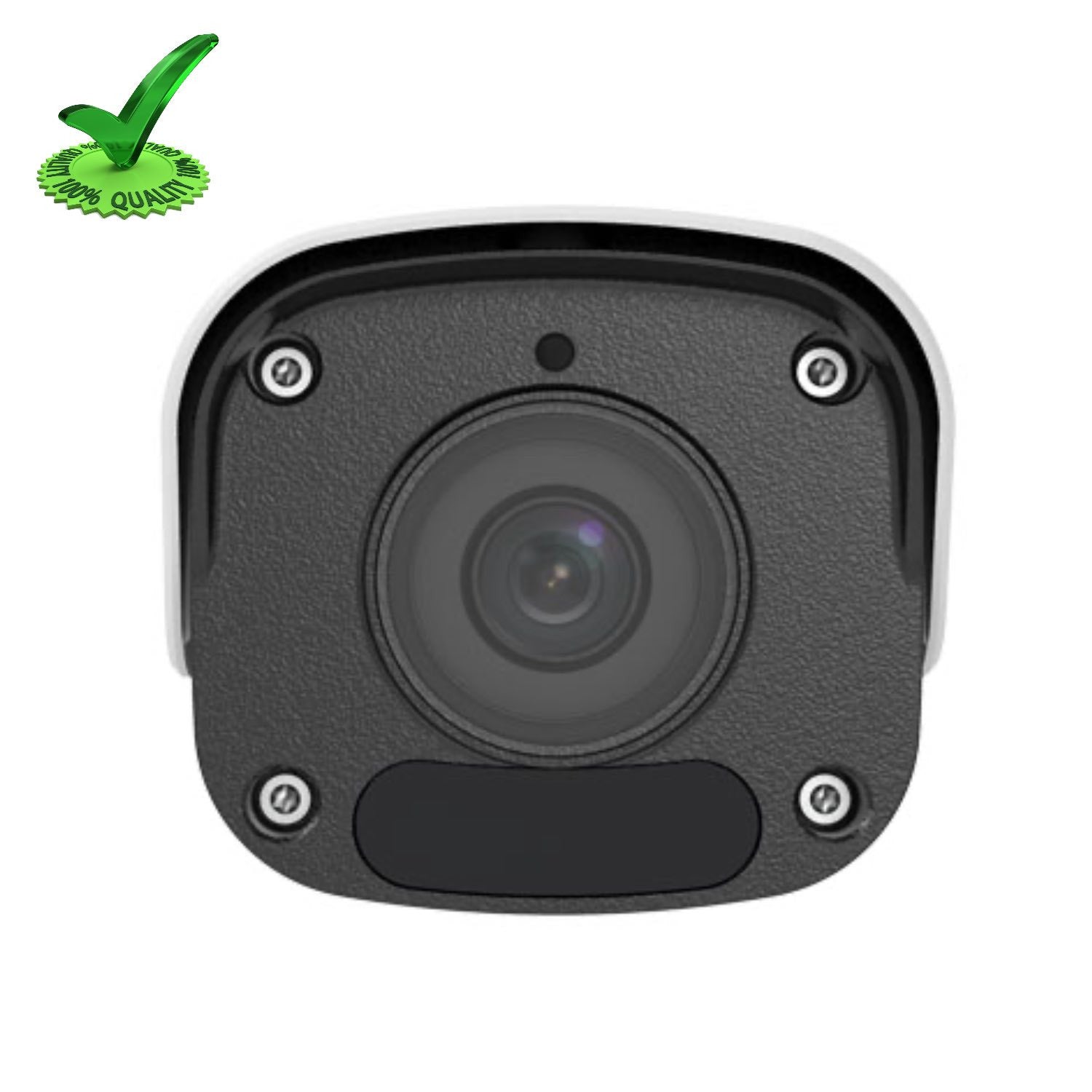

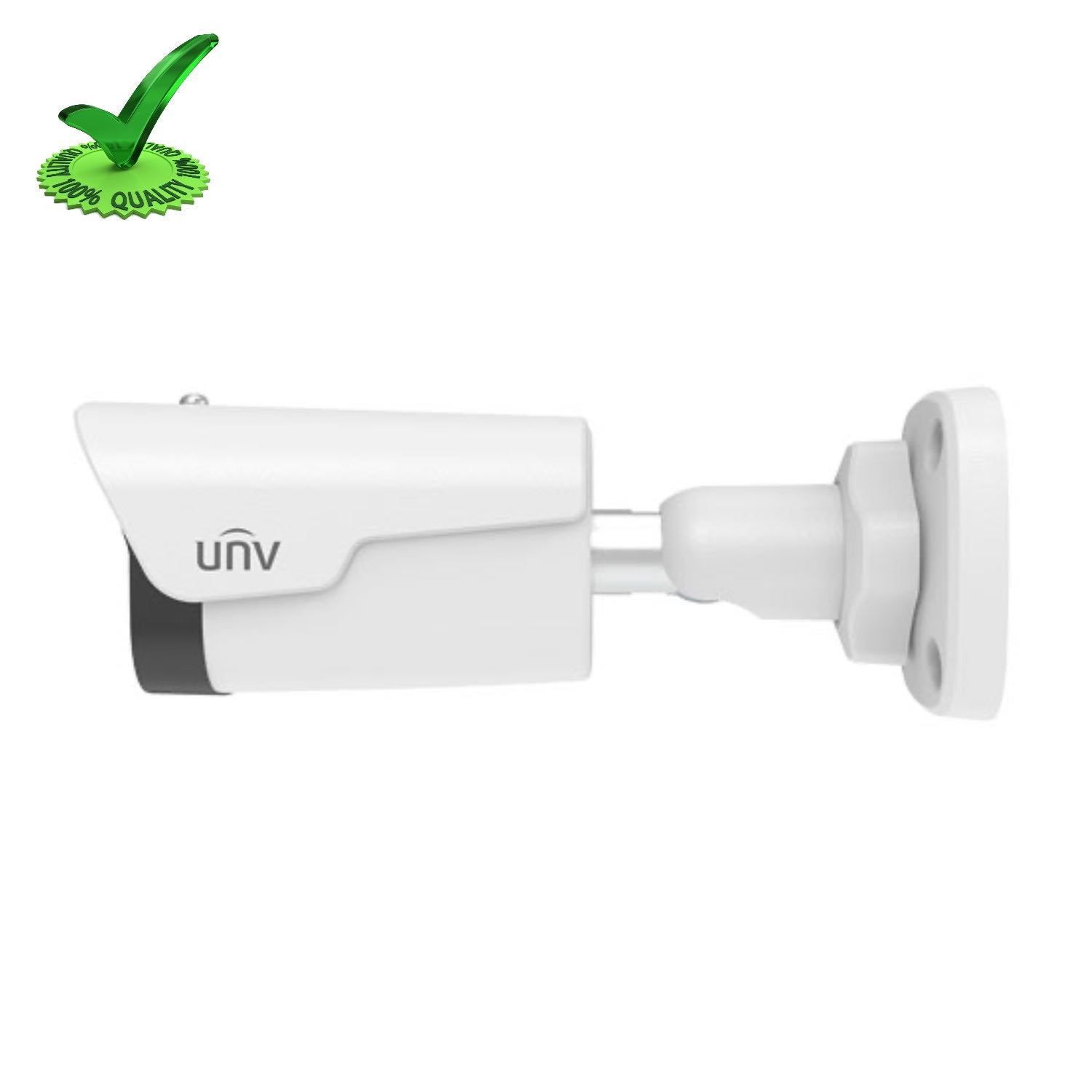

Uniview IPC2122LB-ADF28(40)KM-G 2MP IP IR Bullet Camera

Specification

Camera

• Sensor : 1/2.7", 2.0 megapixel, progressive scan, CMOS
• Lens : 2.8mm@F2.0
• Angle of View (H) : 112.9°
• Angle of View (V) : 59.1°
• Angle of View (O) : 121.2°
• Adjustment Angle : Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
• Shutter : Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination : Colour: 0.01Lux ( F2.0, AGC ON) 0Lux with IR
• Day/Night : IR-cut filter with auto switch (ICR)
• Digital Noise Reduction : 2D/3D DNR
• S/N : >52dB
• IR Range : Up to 30m (98ft) IR range
• Wavelength : 850nm
• IR On/Off Control : Auto/Manual
• Defog : Digital Defog
• WDR : 120dB

Video

• Video Compression : Ultra 265, H.265, H.264, MJPEG
• H.264 code profile : Baseline profile, Main profile, High profile
• Frame Rate : Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps;  CIF(352*288), Max 30fps;
• Video Bit Rate : 128 Kbps~16 Mbps
• OSD : Up to 4 OSDs
• Privacy Mask : Up to 4 areas
• ROI : Up to 8 areas
• Motion Detection : Up to 4 areas


• White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction : 2D/3D DNR
• Smart IR : Supported
• Flip : Normal/Vertical/Horizontal/180°
• Dewarping : N/A
• HLC : Supported
• BLC : Supported

Network

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL,  SNMP
• Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API
• Client : EZStation  EZView EZLive

Audio

• Audio Compression : G.711
• Suppression : Supported
• Sampling Rate : 8KHZ

Storage

• Edge Storage : Micro SD, up to 128GB
• Network Storage : ANR,NAS(NFS)

Interface

• Network : 10/100M Base-TX Ethernet
• Built-in Mic : Supported

Certifications

• Certifications : CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15

General

• Power : DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 7.0W
• Dimensions (L × W × H) : 165 × 63 × 62mm (6.5” × 2.5” × 2.5”)
• Net Weight : 0.39kg (0.86lb)
• Material : Metal + plastic
• Working Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection : 2KV
• Ingress Protection : IP67
• Reset Button : N/A

Extra Information

• SKU: IPC2122LBADF2840KMG
• Warranty: 2 Years
• Brand: Uniview
• Megapixel: 2
• Technology: IP
• Camera Type: Bullet
• Product Type: Camera
• PDF: View PDF
