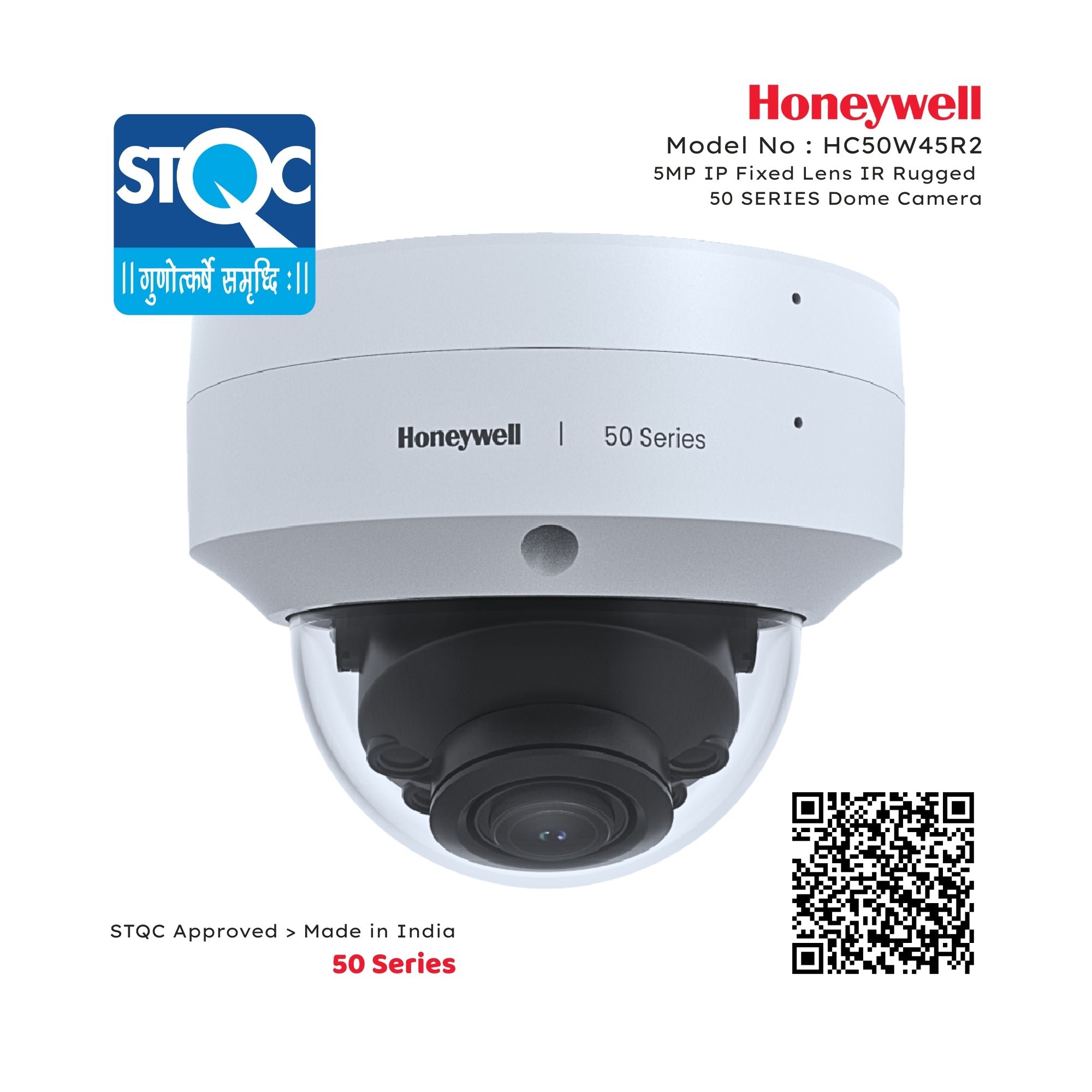

Honeywell HC50W45R2 5MP IP MFZ Lens IR Rugged 50 SERIES Dome Cameras

OPERATIONAL

NETWORK

Video Standard

NTSC/PAL

Ethernet

10 Base-T/100 Base-TX Ethernet (RJ-45)

Scanning System

Progressive

Supported Web Browsers

Microsoft Edge, Chrome

Image Sensor

1/2.8” CMOS

Supported OS

Microsoft Windows 10, Windows 11

Lens

2.7 ~ 13.5 mm, MFZ, DC-Iris, F1.4 ~ F3.6

Protocols**

IPv4, IPv6, TCP/IP, HTTP, HTTPS, RTSP/RTP/RTCP, IGMP/ Multicast, SMTP, SNMP, DHCP, NTP, DNS, DDNS, CoS, QoS, 802.1X, UPnP, mDNS(Bonjour), UDP, ICMP, ARP, TLS, SFTP

Number of Pixels (H x V)

5MP (2592×1944)

Minimum Illumination (Color/BW)

Color: 0.005 Lux @ F1.6 B/W: 0 Lux IR ON

Interoperability

ONVIF Profi le S/G/T/M

Maximum Users Access

10 Users

S/N Ratio

55 dB

Security

Firmware encrypted & Signed, SD card encryption, User account and password protection, HTTPS, IP Filter, Digest authentication, Device Certifi cate, TLS 1.2 & 1.3, Stream encryption, AES128/256, SSH/Telnet closed, PCIDSS com-pliance, Secure boot, Prevent brute-force attack, Audit User Access/System/Event log management

Electronic Shutter Speed

1/3 to 1/1,00,000s

IR Distance

50 Mtrs

IR Light Control

Smart IR (Auto/Manual)/OFF

Day/Night

Auto/Day/Night/Timing

Languages Supported

English, French, German, Italian, Japanese, Portuguese, Spanish

Backlight Compensation

WDR, BLC, HLC

Wide Dynamic Range

130 dB

EVENTS/ANALYTICS

Noise Reduction

2D/3D DNR

Video Analytics

Motion Detection, Scene Change, Tamper Detection, Smart Motion, Smart Intrusion, Smart Loitering, Smart Line Crossing Detection, Unattended Object Detection, Missing Object Detection, People Counter, Queuing, Crowd Gathering, Heat Map, Face Detection

Electronic Image Stabilization

Supported

G-Sensor

Supported

Privacy Masking

Off/On (5 Areas)

Event Type

Analytics alarm, Disk alarm, Recording alarm, Tampering, Alarm input, Audio detection

Defog

Supported

Local Storage

Micro SD/SDHC/SDXC card slot (2TB)

Event Linkage

Email, SD card recording, SFTP recording, NAS recording, Digital output

IR-Cut Filter

Supported

White Balance

Auto/Fixed Current/Manual

Region of Interest

6

Gain Control

0 ~ 100%

Event Notification

HTTPS, HTTP, SMTP, ONVIF, Digital output

Angle of View (H x V)

H:100° ~ 28.5° V: 73° ~ 21.4°

ELECTRICAL

Alarm Inputs / Outputs

1 in/1 out

Power Supply

DC12V, PoE (IEEE 802.3af)(Class 0)

Reset

Supported

Power Consumption (Max)

10.57 W

VIDEO

MECHANICAL

Video Compression

H.265 HEVC/H.264/MJPEG, Smart Codec

Dimensions

Ø140 × 113.5 mm (5.5” x 4.47”)

Number of Video Streams

4

Dome Diameter

Ø99.1 mm (3.90”)

Resolution*

Main Stream: 2592 x 1944/2592 x 1520/2304 x1296 1920 x 1080/1280 x 720/704 x 576/640 x 480

352 x 288/320 x 240

Second Stream: 2592 x 1944/2592 x 1520/2304 x 1296 1920 x 1080/1280 x 720/704 x 576/640 x 480

352 x 288/320 x 240

Third Stream: 1920 x 1080/1280 x 720/704 x 576 640 x 480/352 x 288/320 x 240

Fourth Stream: 640 x 480/352 x 288/320 x 240

Product Weight

0.84 kg (1.85 lb)

Package Weight

1.09 kg (2.4 lb)

Body Material

Aluminium + Polycarbonate

Color

White (RAL9003)

DORI*** (EN62676-4 STANDARD)

Detect

59.4(W)~208.4(T) Mtrs

Frame Rate*

Main Stream: Max@50fps Second Stream: Max@50fps Third Stream: Max@50fps Fourth Stream: Max@50fps

Observe

23.6(W)~82.7(T) Mtrs

Recognize

11.9(W)~41.7(T) Mtrs

Identify

5.9(W)~20.8(T) Mtrs

Bit Rate

100 K ~ 12 Mbps

*Refer to resolution-frame rate reference document for more details.

** Some development may be required in specific user cases to support some of these protocols in the fi eld as they mature over time.

***The table is for reference only. The detection value is a theoretical value and may differ from the actual detection value. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site and more.

AUDIO

Audio Compression

G.711a/G.711Mu/G.726/AAC

Audio Stream

2-Way, Full duplex

Audio Interface

Line in/out, Built-in Mic

ENVIRONMENTAL

REGULATORY

Operating Temperature

-30°C ~ 60°C (-22°F ~ 140°F) (IR off)

Emissions

FCC PART 15, CE (EN 55032), ICES-003

Relative Humidity

Less than 95 %, Non-condensing

Immunity

CE (EN 50130-4, EN 55035)

Ingress Protection

IP66, IP67

Safety

UL listed to UL/CSA 62368-1, BIS IS 13252 (Part 1)/IEC 69050-1

Impact Resistance

IK10

Environment

RoHS, REACH, WEEE

Reliability

IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78,

IEC 60068-2-11, IEC 60068-2-27, IEC 60068-2-64

Cyber Security

BIS ER, STQC

Gore Vent

Supported

Country of Origin

India
