- Home
- 4 Channel Hd Dvr
- Hikvision DS-7B04HUHI-K1 Series 4ch 5mp 1Sata DVR Hikvision DS-7B04HUHI-K1 Series 4ch 5mp 1Sata DVR
2% Rs. 200.00






Hikvision

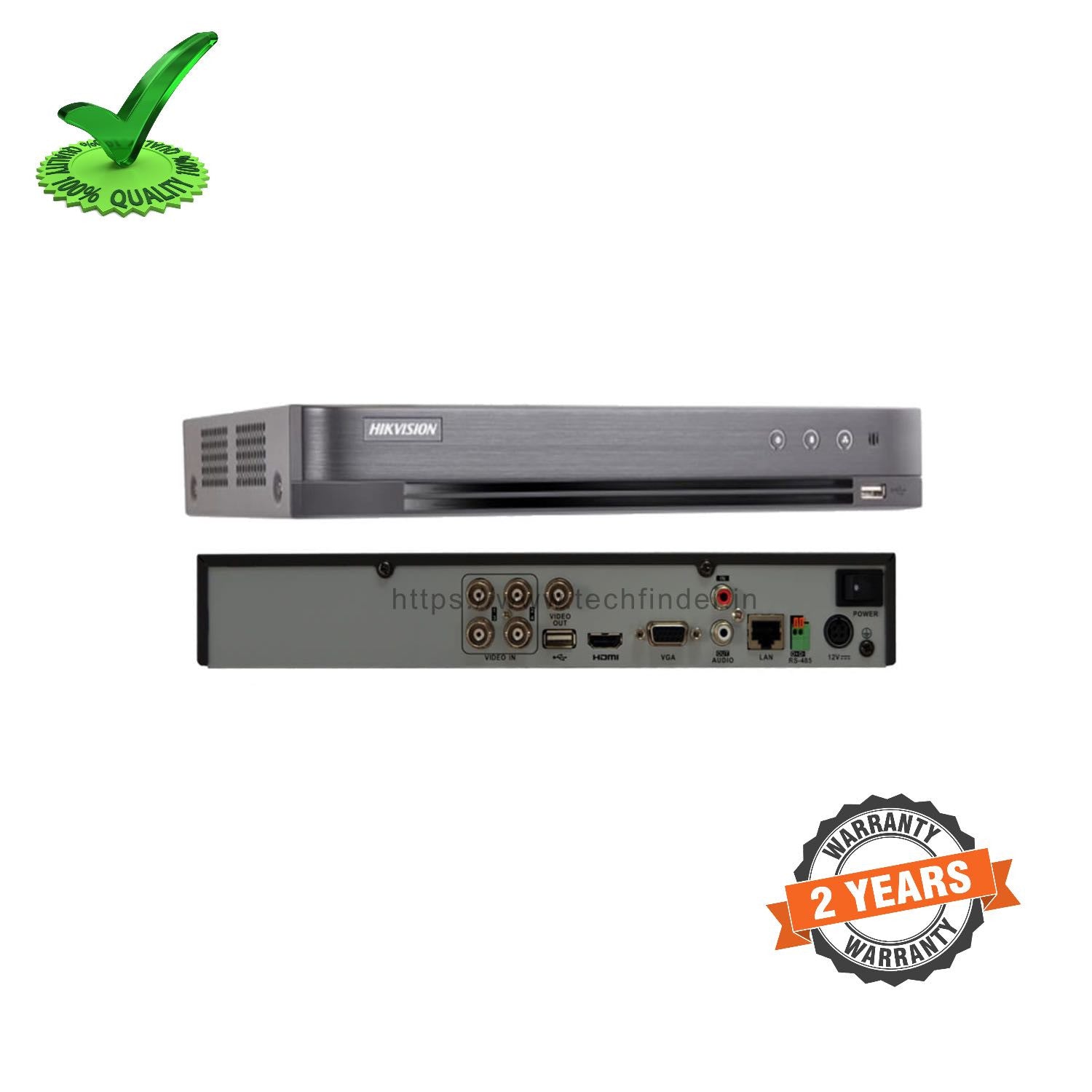

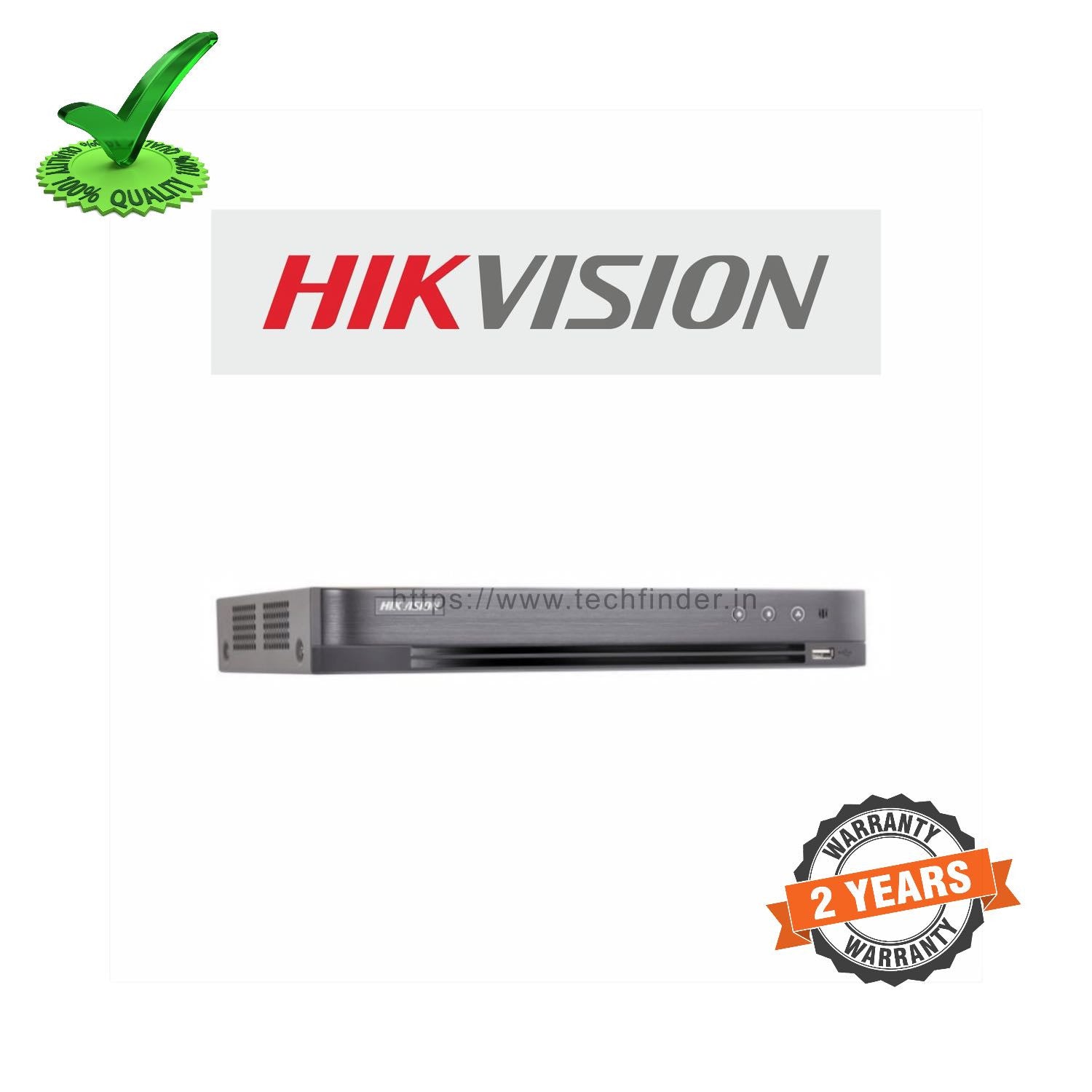

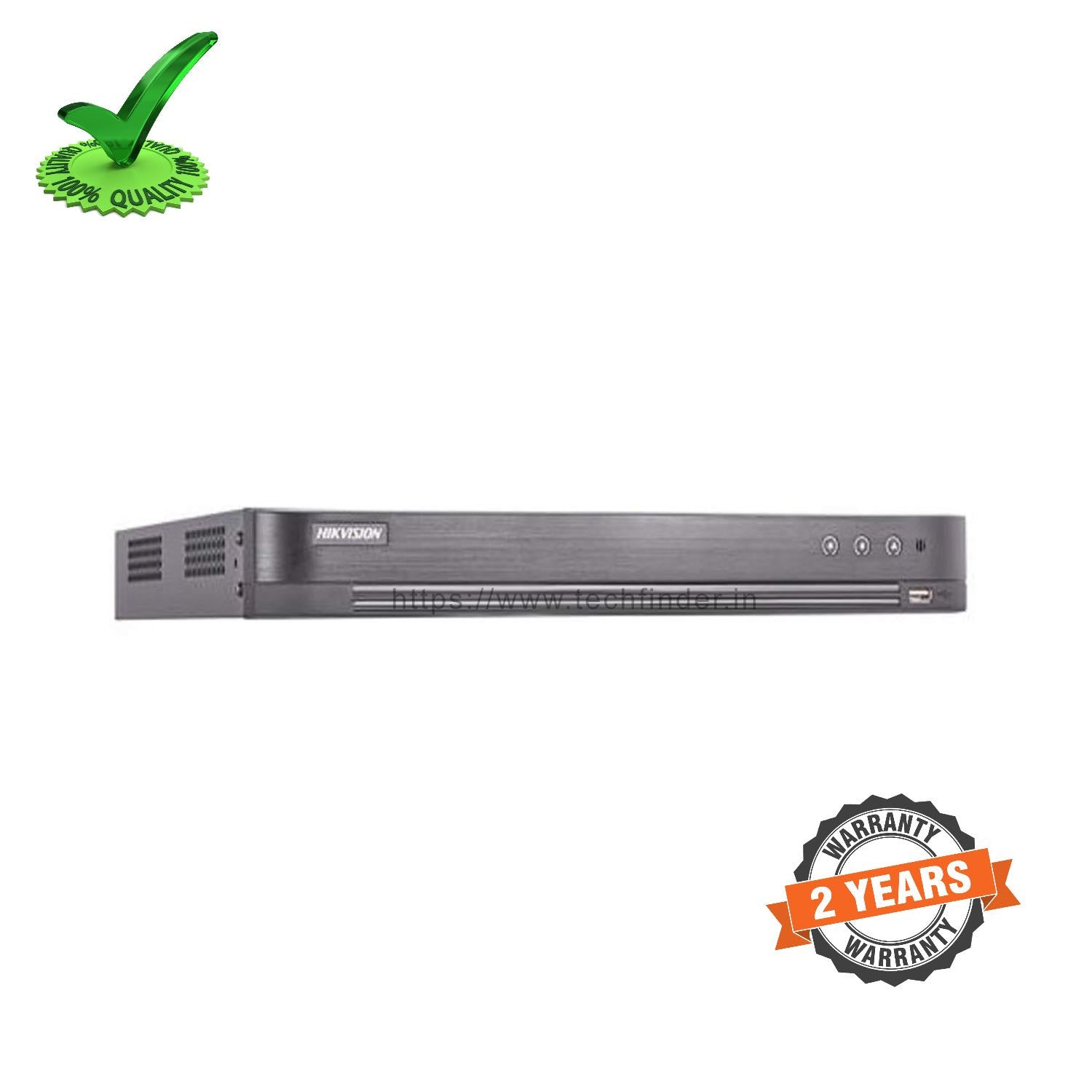

Hikvision DS-7B04HUHI-K1 Series 4ch 5mp 1Sata DVR
No reviews
Product SKU: DS7B04HUHIK1
Available:
Only 100 items in stock
100 items in stock
In stock
Pre-order
Out of stock
Hikvision DS-7B04HUHI-K1 Series 4port 5megapixel support up to 8tb 1Sata Hard Disk DVR
Features and Functions
Video Input and Transmission
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Up to 2-ch 6 MP IP cameras input
- 5 MP/4 MP HDTVI video input and live view
- Defogging function enabled for the supported analog cameras
- Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
Compression and Recording
- H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
- Connectable to H.265+/H.265/H.264+/H.264 IP cameras
- H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
- Full channel recording at up to 5 MP resolution
Video Output
- Simultaneous HDMI/VGA output
- HDMI output at up to 4K (3840 × 2160) resolution for DS-7B08HUHI-K1
- Separate CVBS output
- Storage and Playback
- 1 SATA interface (up to 8 TB capacity per HDD)
- 4/8-ch synchronous playback
- Smart search for efficient playback
- Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
- Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
- Supports line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection
- VCA information overlay in live view and smart playback
- VQD (Video Quality Diagnostics)
- Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- RJ45 10M/100M self-adaptive Ethernet interface for DS-7B04HUHI-K1, and 1 RJ45 10M/100M/1000M self-adaptive
- Ethernet interface for DS-7B04HUHI-K1 and DS-7B08HUHI-K1
- Output bandwidth limit configurable
- Description
- Reviews
Hikvision DS-7B04HUHI-K1 Series 4channel 5mp support camera and 1Sata Hard Disk DVR
Specifications
Video/Audio input
- Model : DS-7B04HUHI-K1
- Video compression : H.265+/H.265/H.264+/H.264
- Analog video input : 4-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI input : 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
- AHD input : 1080p25, 1080p30, 720p25, 720p30
- HDCVI input : 1080p25, 1080p30, 720p25, 720p30
- CVBS input : PAL/NTSC
- IP video input : 2-ch, Up to 6 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras
- Audio compression : G.711u
- Audio input : 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio output
- CVBS output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- HDMI/VGA output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Encoding resolution : 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame rate : Main stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
- Video bit rate : 32 Kbps to 10 Mbps
- Audio output : 1-ch, RCA (Linear, 1 KΩ)
- Audio bit rate : 64 Kbps
- Dual stream : Support
- Stream type : Video, Video & Audio
- Synchronous playback : 4-ch
Network management
- Remote connections : 128
- Network protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPTM, HTTPS, ONVIF
Hard disk
- SATA : 1 SATA interface
- Capacity : Up to 8 TB capacity for each disk
External interface
- Two-way audio input : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
- Network interface : 1, RJ45 10M/100M self-adaptive Ethernet interface
- USB interface : 2 × USB 2.0
- Serial interface : RS-485 (half-duplex)
General
- Power supply : 12 VDC
- Consumption (without HDD) : ≤ 10 W
- Working temperature : -10 oC to +55 oC (+14 oF to +131 oF)
- Working humidity : 10% to 90%
- Dimensions (W × D × H) : 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weight (without HDD) : ≤ 1.16 kg (2.6 lb)
Extra Information
- SKU: DS7B04HUHIK1
- Warranty: 2 Years
- Brand: Hikvision
- Technology: Analogue
- Product Type: DVR/XVR
- PDF: View PDF
