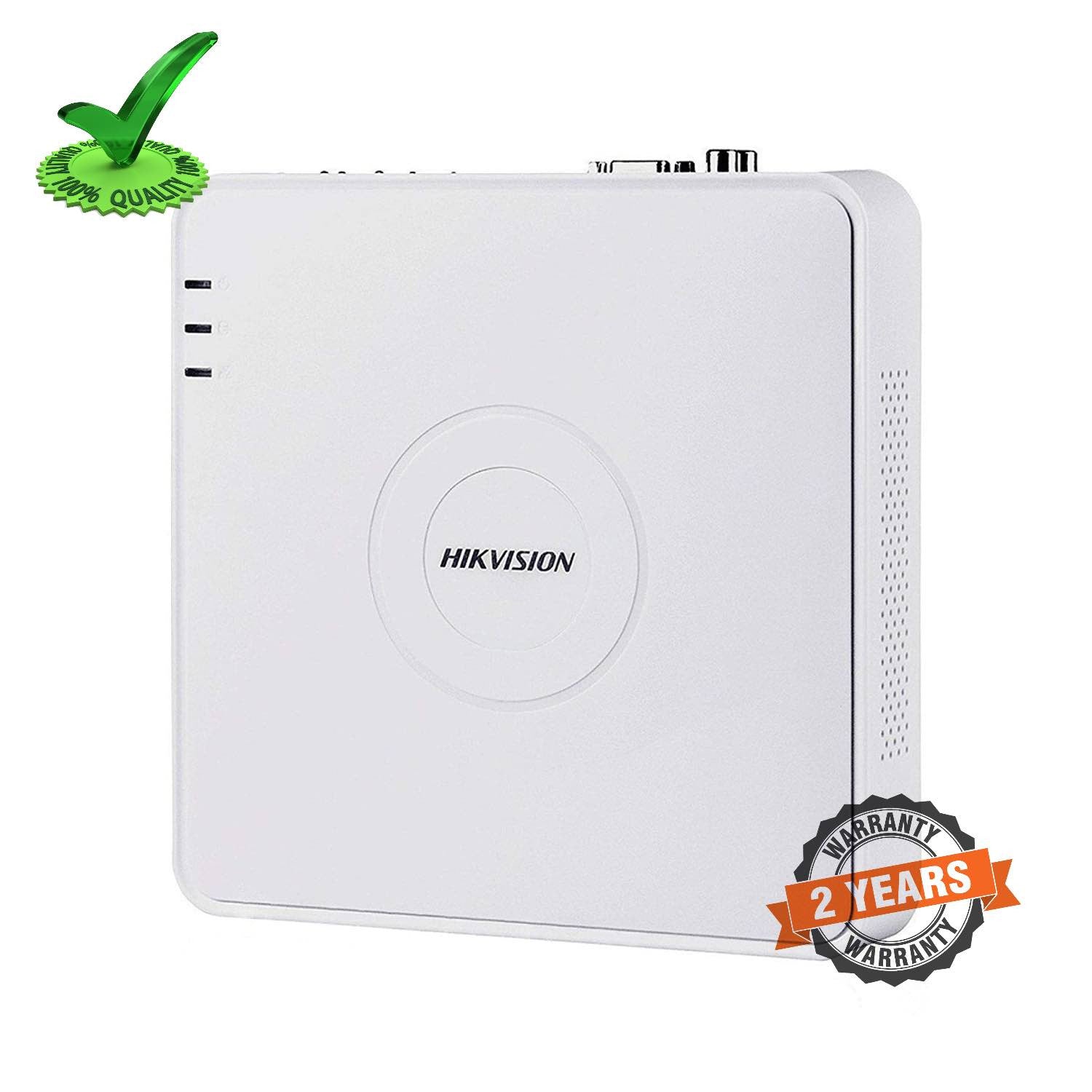

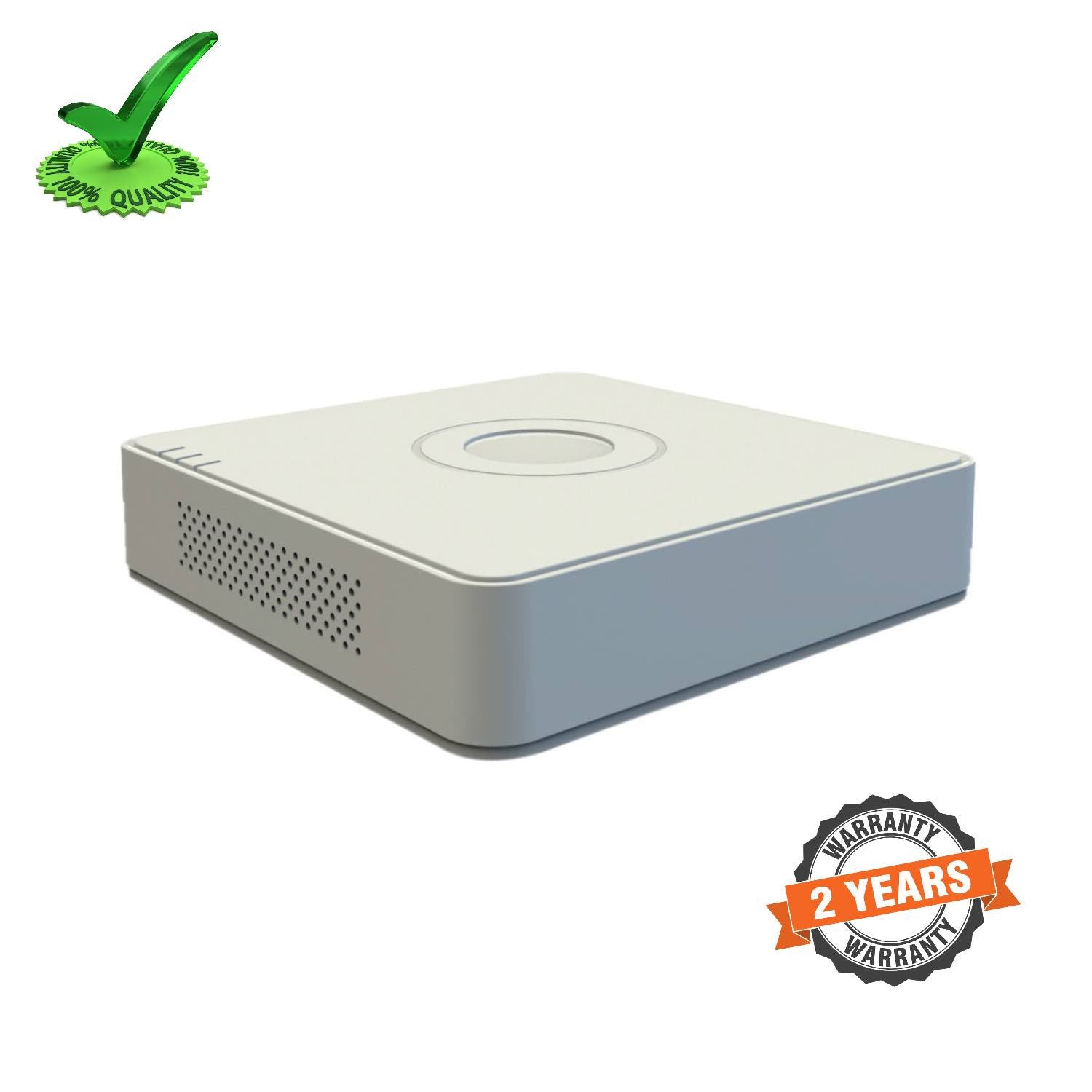

Hikvision DS-7A04HGHI-F1 Eco Model 4ch Turbo HD Dvr

Hikvision DS-7A04HGHI-F1 Eco Model 4ch Turbo HD Dvr

Video/Audio input

• Video compression : H.264+/H.264
• Analog video input : 4-ch 8-ch 16-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• Turbo HD input : 1080p25, 1080p30, 720p25, 720p30
• AHD input : 1080p25, 1080p30, 720p25, 720p30
• HDCVI input : 1080p25, 1080p30, 720p25, 720p30
• CVBS input : Support
• IP video input : 1-ch(up to 5-ch), 2-ch(up to 10-ch), 2-ch(up to 18-ch), Up to 1.3MP resolution
• Audio compression : G.711u
• Audio input/Two-way audio input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Video/Audio output

• HDMI/VGA output  : 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Encoding resolution : When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF, When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
• Frame rate : Main stream:When 1080p lite mode enabled:1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N), When 1080p lite mode not enabled:For 720p stream access:720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N), For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N), Sub-stream:CIF/QVGA/QCIF@25fps (P)/30fps (N)
• Video bit rate : 32 Kbps to 4 Mbps
• Audio output : 1-ch, RCA (Linear, 1 KΩ)
• Audio bit rate : 64 Kbps
• Dual stream : Support
• Stream type : Video, Video & Audio
• Synchronous playback : 4-ch 8-ch 16-ch

Network management

• Remote connections : 32 128
• Network protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI,, UPnP™, HTTPS

Hard disk

• SATA : 1 SATA interface
• Capacity : Up to 6 TB capacity for each disk

External interface

• Network interface : 1, RJ45 10M/100M self-adaptive Ethernet interface
• USB interface : Rear panel: 2 × USB 2.0

General

• Power supply : 12 VDC
• Consumption (without HDD) : ≤ 8 W ≤ 12 W ≤ 20 W
• Working temperature : -10 ºC to +55 ºC (14 ºF to 131 ºF)
• Working humidity : 10% to 90%
• Dimensions(W × D × H) : 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
• Weight(without HDD) : ≤ 0.8 kg (1.8 lb) ≤ 1.2 kg (2.6 lb)

Extra Information

• SKU: DS7A04HGHIF1
• Warranty: 2 Years
• Brand: Hikvision
• Technology: Analogue
• Product Type: DVR/XVR
• PDF: View PDF
