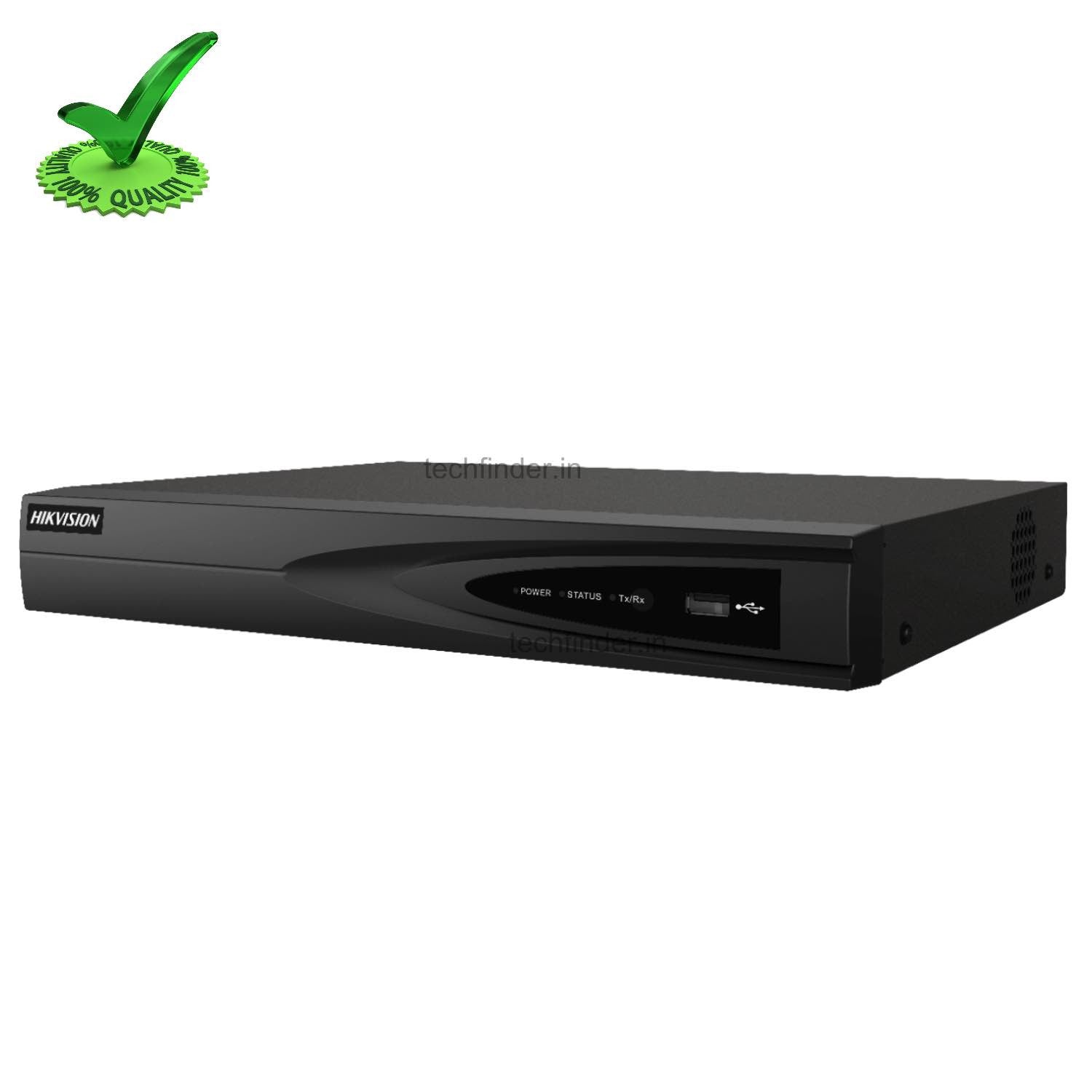

Hikvision DS-7604NI-Q1/4P 4CH NVR

Features and Functions

HD Input

• H.265+/H.265/H.264/H.264+ video formats
• Connectable to the third-party network cameras
• Up to 8 IP cameras can be connected
• Recording at up to 8 MP resolution
• Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
  HD Output
• HDMI/VGA simultaneous output (DS-7604NI-Q1/4P)
• HDMI and VGA independent outputs (DS-7608NI-Q1/8P)
• HDMI Video output at up to 4K (3840 × 2160) resolution
  HD Storage
• 1 SATA interface connectable for recording and backup
• H.265+ compression effectively reduces the storage space and costs by up to 75%
  HD Transmission
• 1 self-adaptive 10/100/1000 Mbps network interface
• 4/8 independent PoE network interfaces are provided
  Various Applications
• Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
• Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
• VCA detection alarm is supported
• Instant playback for assigned channel during multi-channel display mode
• Smart search for the selected area in the video; and smart playback to improve the playback efficiency
• Hik-Connect for easy network management

Professional and Reliability

• H.265+ compression effectively reduces the storage space by up to 75%

HD Video Output

• Providesimultaneous HDMI and VGA outputs
• HDMI video output at up to 4K resolution

Storage and Playback

• 1 SATA interface for HDD connection (up to 8 TB capacity per HDD)
• Smart search/smart playback to improve the playback efficiency

Smart Function

• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting

Network & Ethernet Access

• 4 independent PoE network interfaces
• 1 self-adaptive 10/100 Mbps Ethernet interface
• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Model

• DS-7604NI-Q1/4P
• DS-7608NI-Q1/8P

Video/Audio input

• IP video input : 4-ch Up to 8 MP resolution
• Two-way audio : 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Network

• Incoming bandwidth : 40 Mbps 80 Mbps
• Outgoing bandwidth : 80 Mbps

Video/Audio output

• Recording resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• HDMI output resolution : 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;, HDMI/VGA simultaneous output : 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA output resolution : 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous, output. 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio output : 1-ch, RCA (Linear, 1 KΩ)

Decoding

• Decoding format : H.265/H.265+/H.264/H.264+/MPEG4
• Live view / Playback resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback : 4-ch
• Capability : 1-ch @ 8 MP / 4-ch @ 1080p

Network management

• Network protocols : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Hard disk : SATA 1 SATA interface
• Capacity : Up to 6TB capacity for each disk

External interface

• Network interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• USB interface : 2 × USB 2.0

POE Interface

• Interface : 4, RJ-45 10/100 Mbps, self-adaptive Ethernet, interface 8, RJ-45 10/100 Mbps, self-adaptive Ethernet interface
• Power : ≤ 50W, ≤ 75W
• Standard : IEEE 802.3 af/at

General

• Power supply : 48 VDC
• Power : ≤ 65 W, ≤ 90 W
• Consumption(without hard disk) : ≤ 10 W (without enabling PoE)
• Working temperature : -10 to +55º C (+14 to +131º F)
• Working humidity : 10 to 90 %
• Chassis : 1U chassis
• Dimensions(W × D × H) : 315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
• Weight(without hard disk) : ≤ 1 kg (2.2 lb)
