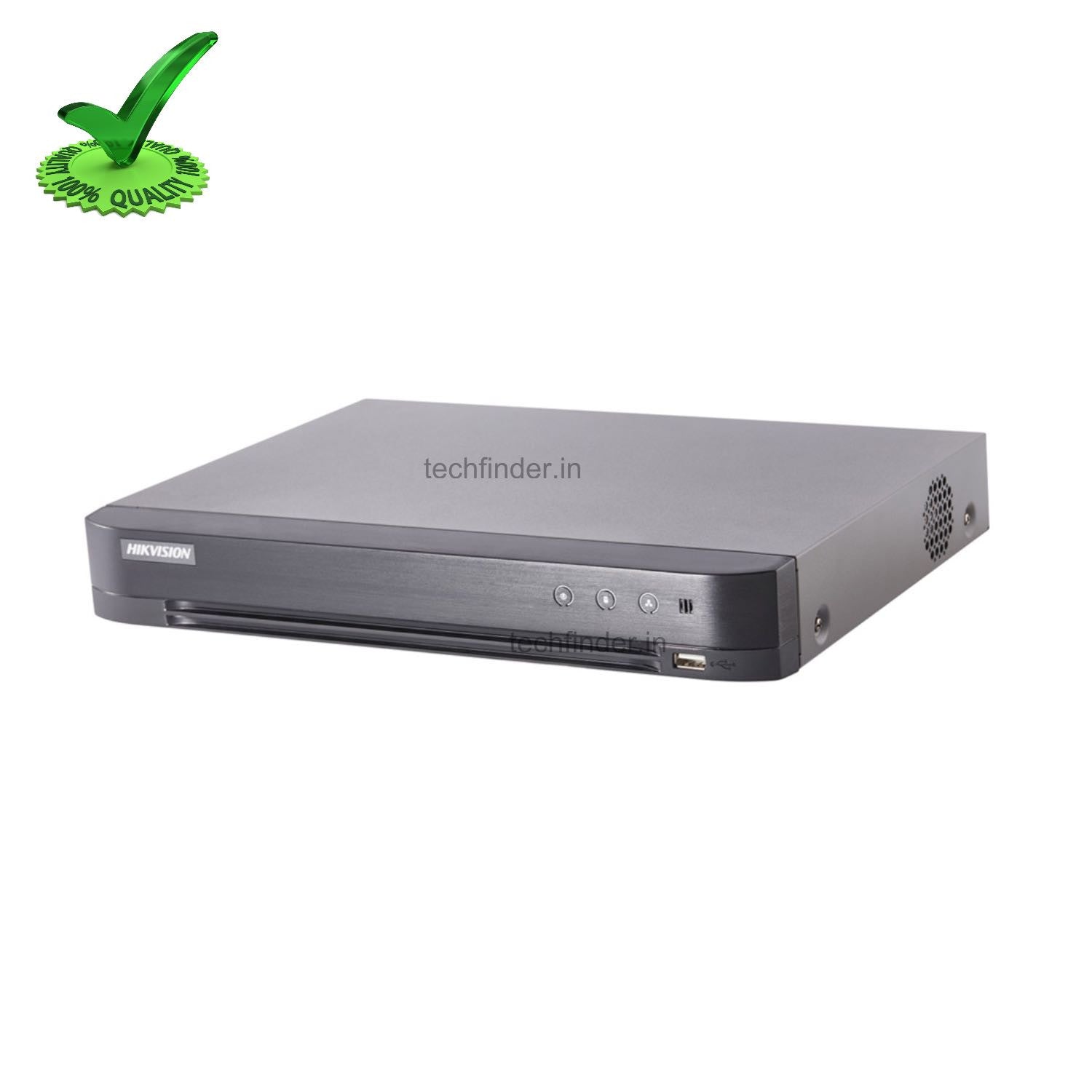

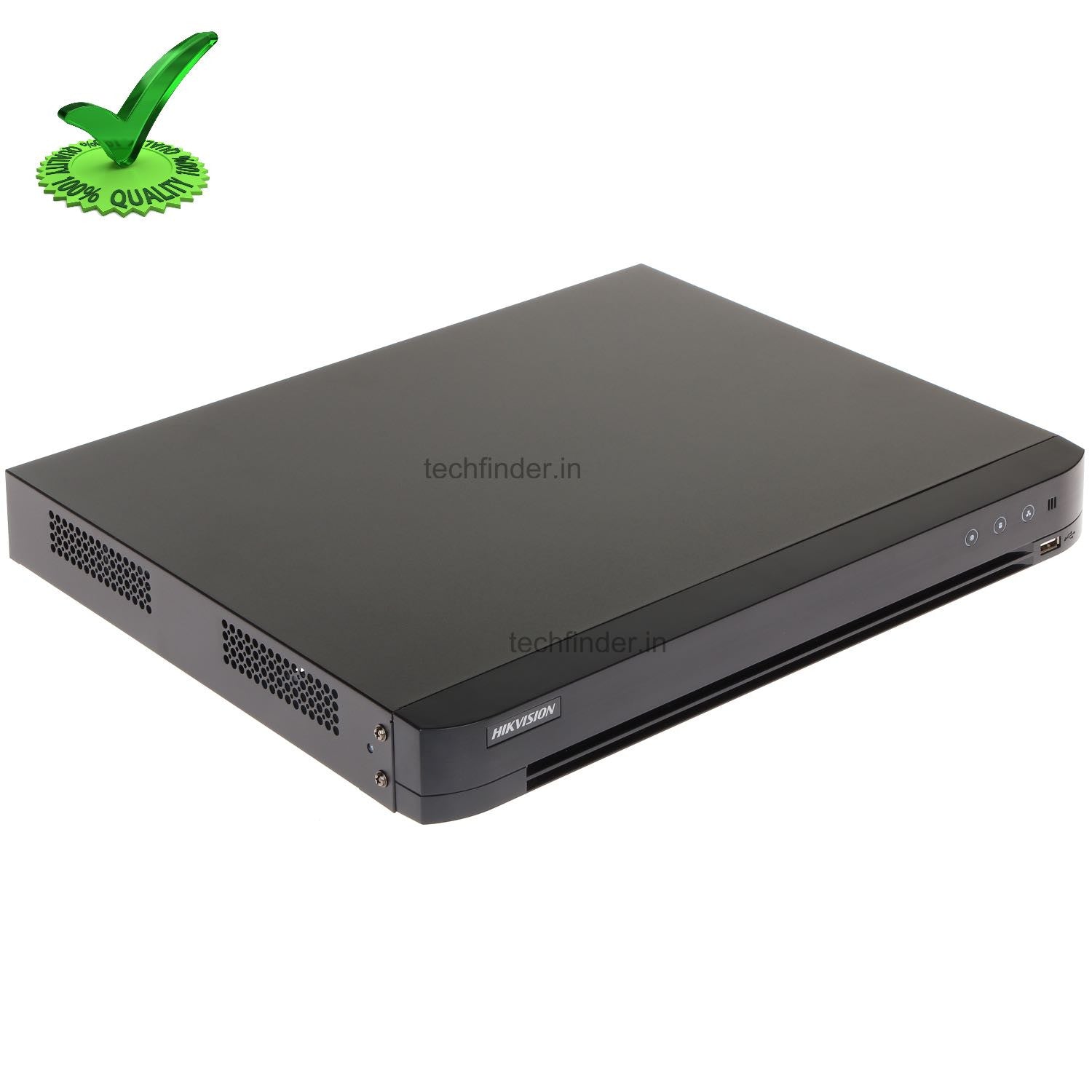

Hikvision DS-7208HTHI-K2 8Ch HD DVR

Compression and Recording

• H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
• Full channel recording at up to 8 MP lite resolution

Storage and Playback

• Two SATA interfaces
• Smart search for efficient playback
• Support the third party cloud storage

Smart Function

• Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• Support line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection

Network & Ethernet Access

• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• Output bandwidth limit configurable

Specification

Model : DS-7204HTHI-K2 DS-7208HTHI-K2

Perimeter Protection

• Line Crossing Detection/Intrusion Detection : 4-ch, 8-ch

Recording

• Video compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding resolution : 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame rate : Main stream:8 MP@15 fps/5 MP@20 fps/3K@20 fps/3 MP@18 fps, 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N), Sub-stream:WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• Video bit rate : 32 Kbps to 16 Mbps
• Dual stream : Support
• Stream type : Video, Video & Audio
• Audio compression : G.711u
• Audio bit rate : 64 Kbps

Video and Audio

• IP video input : 4-ch (up to 8-ch) 8-ch (up to 16-ch), Up to 8 MP resolution, Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog video input : 4-ch 8-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI input : 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
• AHD input : 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI input : 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS input : PAL/NTSC
• CVBS output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDM output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio input : 4-ch RCA (2.0 Vp-p, 1 KΩ) 4-ch RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable 8-ch via coaxial cable
• Audio output : 1-ch, RCA (Linear, 1 KΩ)
• Two-way audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous playback : 4-ch, 8-ch

Network

• Total bandwidth : 128 Mbps
• Remote connection : 32, 64
• Network protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network interface : 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary interface

• SATA : 2 SATA interfaces
• Capacity : Up to 10 TB capacity for each disk
• Serial interface : RS-485 (half-duplex)
• USB interface : Front panel: 1 × USB 2.0, Rear panel: 1 × USB 3.0
• Alarm in/out : 4/1 8/4

General

• Power supply : 12 VDC, 2.3 A 12 VDC, 3.1 A
• Consumption (without HDD) : ≤15 W ≤ 20 W
• Working temperature : -10 °C to +55 °C (+14 °F to +131 °F)
• Working humidity : 10% to 90%
• Dimension (W × D × H) : 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Weight (without HDD) : ≤ 1.5 kg (3.3 lb), ≤ 2 kg (4.4 lb)

Extra Information

• SKU: DS7208HTHIK2
• Warranty: 2 Years
• Brand: Hikvision
• Technology: Analogue
• Product Type: DVR/XVR
