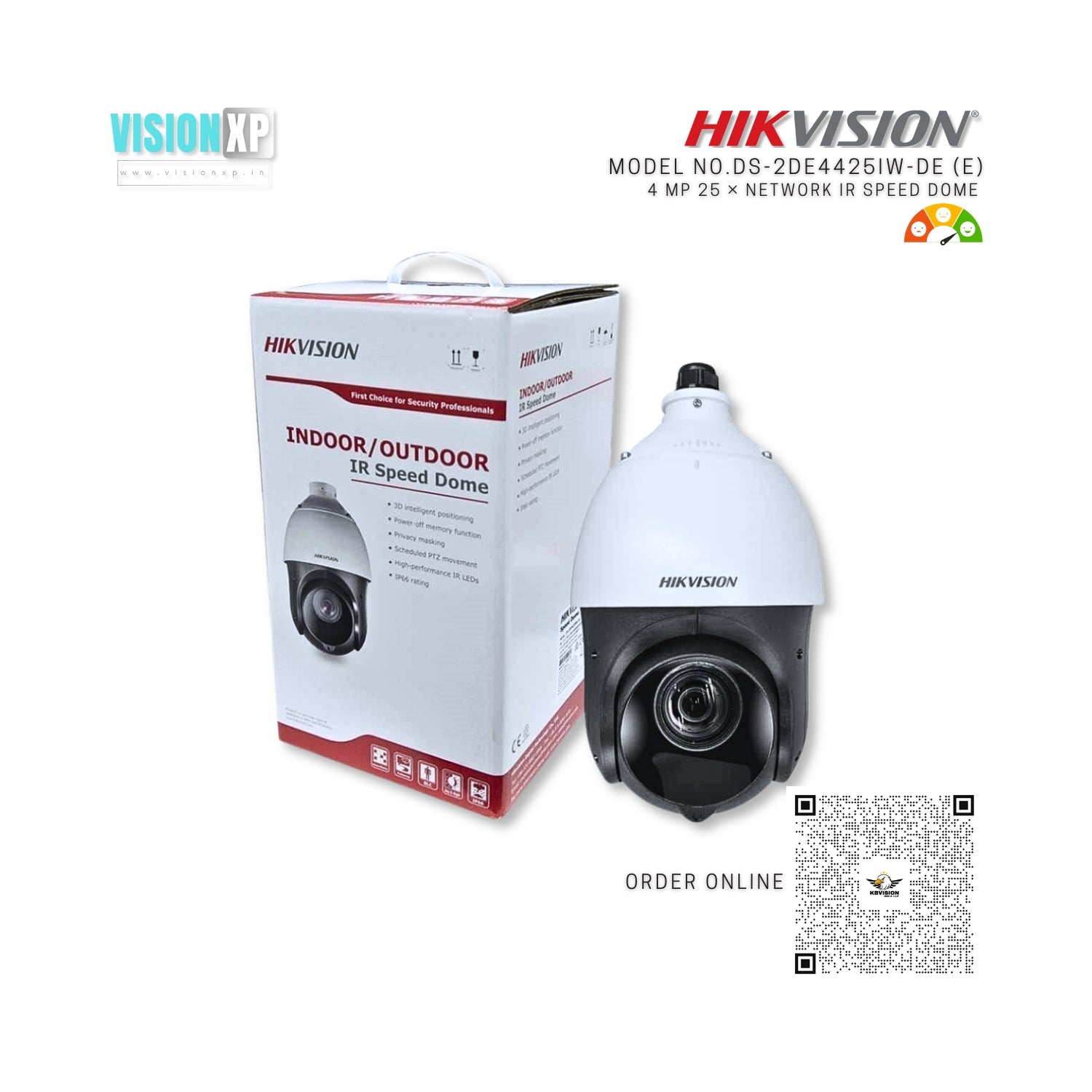

Hikvision DS-2DE4425IW-DE (E) 4 MP 25 × Network IR Speed Dome Camera

DORI

Detect

Observe

Recognize

Identify

Definition

25 px/m

63 px/m

125 px/m

250 px/m

Distance (Tele)

2400.0 m (7874.0 ft)

952.4 m (3124.7 ft)

480.0 m (1574.8 ft)

240.0 m (787.4 ft)

• Specification

Camera

Image Sensor

1/2.8" progressive scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1 s to 1/30,000 s

Slow Shutter

Yes

Day & Night

IR cut filter

Zoom

25x optical, 16x digital

Lens

Focus

Auto, semi-auto, manual

Aperture

Max. F1.6

Zoom Speed

Approx. 3.6 s

Focal Length

4.8 mm to 120 mm

FOV

Horizontal field of view: 55° to 2.4° (wide-tele),

Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)

Illuminator

Supplement Light Type

IR

Supplement Light Range

IR Distance: up to 100 m

PTZ

Proportional Pan

Yes

Park Action

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,

panorama scan

Scheduled Task

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,

panorama scan, dome reboot, dome adjust, auxiliary output

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s

Tilt Speed

tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans

Power-off Memory

Yes

3D Positioning

Yes

PTZ Status Display

Yes

Preset Freezing

Yes

Video

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG

Region of Interest (ROI)

8 fixed regions for each stream

Main Stream

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Bit Rate

32 kbps to 16384 kbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Audio

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering

Yes

Network

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,

RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets

API

Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK,

ISUP

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users, 3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings,

security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)

Client

iVMS-4200, HikCentral Pro, Hik-Connect

Web Browser

Chrome 57.0+, Firefox 52.0+, Safari 11+, IE11


Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by

client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

> 52 dB

Defog

Digital defog

Image Stabilization

EIS

Image Enhancement

BLC, HLC, 3D DNR

Privacy Mask

24 programmable polygon privacy masks, mask color or mosaic configurable

Regional Focus

Yes

Regional Exposure

Yes

Interface

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

Alarm

1 input, 1 output

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;

1 output (line out), line level, output impedance: 600 Ω

Reset

Yes

Event

Basic Event

Motion detection, video tampering alarm, exception, alarm input and output

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception

detection

Alarm Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm

output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

Face Capture

Detects up to 5 faces simultaneously.

Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

General

Power

12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR;

PoE (802.3at)

Operating Condition

-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

Demist

Yes

Material

ADC12

Dimensions

Ø 164.5 mm × 290 mm (Ø 6.48" × 11.42")

Weight

Approx. 2 kg (4.41 lb.)

Approval

EMC

FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011

+A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC VoC (ICES-003: Issue 6, 2019);

KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 62368-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017);

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

LOA (SANS IEC60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)

Protection

IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage

transient protection

• Typical Application

Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following

description to choose for your using environment.

This model has NO SPECIFIC PROTECTION.

Level

Description

Top-level protection

Hikvision products at this level are equipped for use in areas where professional anti-corrosion protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and

more.

Moderate protection

Hikvision products at this level are equipped for use in areas with moderate anti-corrosion demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away

from coastlines, as well as areas affected by acid rain.

No specific protection

Hikvision products at this level are equipped for use in areas where no specific anti-corrosion

protection is needed.
