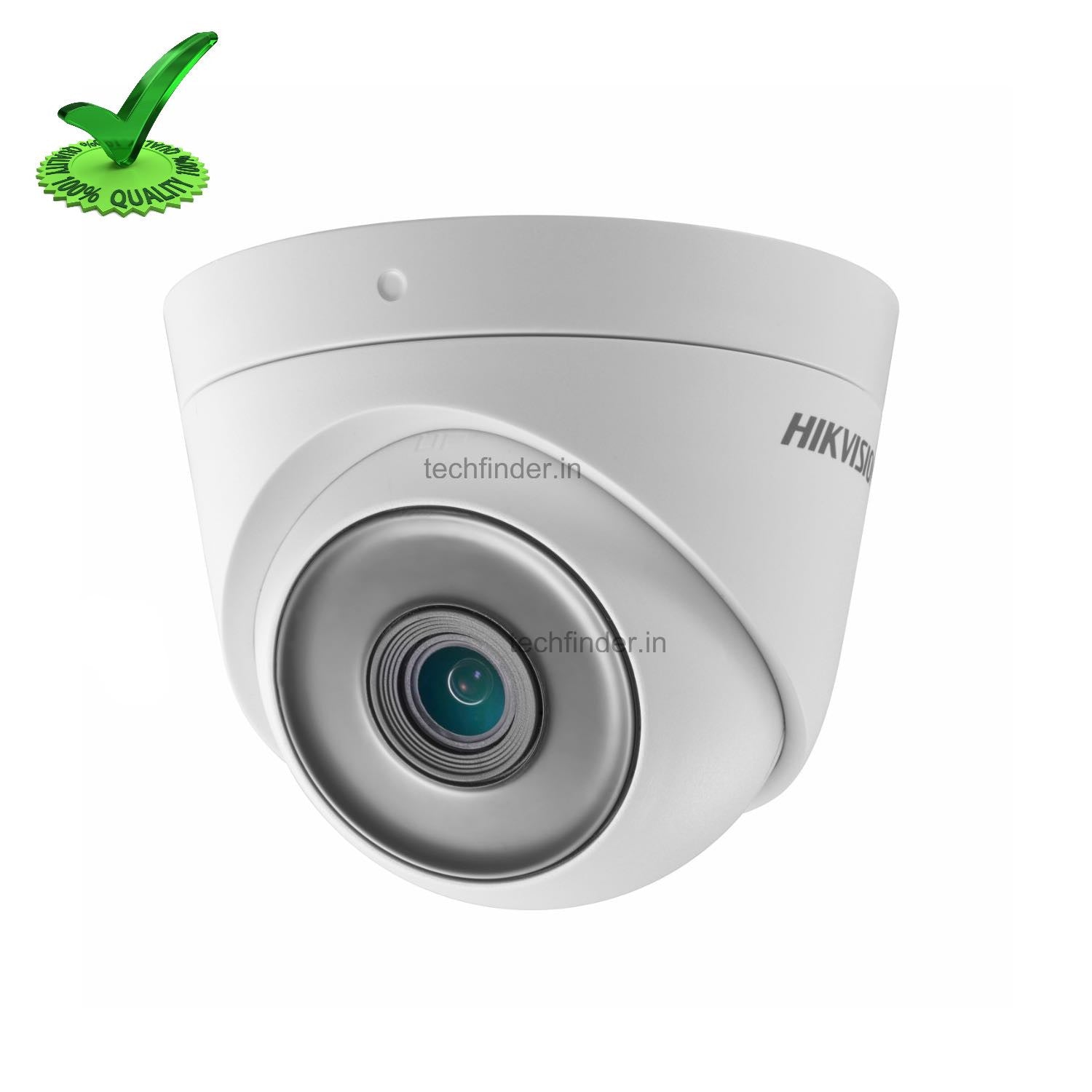

Hikvision DS-2CE76D3T-ITPF 2MP HD Dome Camera

Camera Specification

• Image Sensor : 2.0 megapixel progressive scan CMOS
• Signal System : PAL/NTSC
• Video Frame Rate : PAL: 1080p@25fps, NTSC: 1080p@30fps
• Resolution : 1920 (H) ×1080 (V)
• Min. Illumination : 0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time : PAL: 1/25 s to 1/50, 000 s, NTSC: 1/30 s to 1/50, 000 s
• Slow Shutter : Max. 16 times
• Lens : 2.8 mm, 3.6 mm, 6 mm
• Horizontal Field of View : 106°(2.8 mm), 82°(3.6 mm), 51°(6 mm)
• Lens Mount : M12
• Day & Night : IR cut filter
• Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
• Synchronization :Internal synchronization
• WDR (Wide Dynamic Range) : ≥ 120 dB

Menu

• AGC :High/Medium/Low
• D/N Mode : Auto/Color/BW (Black and White)
• Image Mode : STD/HIGH-SAT
• HLC (Highlight Compensation) : Yes
• BLC (Backlight Compensation) : Yes
• WDR : Yes
• 3D DNR Level : 1 to 9
• Language : English
• Functions : Brightness, Sharpness, 3D DNR, Mirror, Smart IR

Interface

• Video Output : 1 HD analog output
• Switch Button : TVI/AHD/CVI/CVBS

General

• Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Power Supply : 12 VDC ± 25%, *You are recommended to use one power adapter to supply the power for one camera.
• Power Consumption : Max. 4.6 W
• Material : Plastic
• IR Range : Up to 30 m
• Dimensions : Φ 85.8 mm × 70 mm (Φ 3.38" × 2.76")
• Weight : Approx. 127 g (0.28 lb.)

Extra Information

• SKU: DS2CE76D3TITPF
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 2
• Technology: Analogue
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
