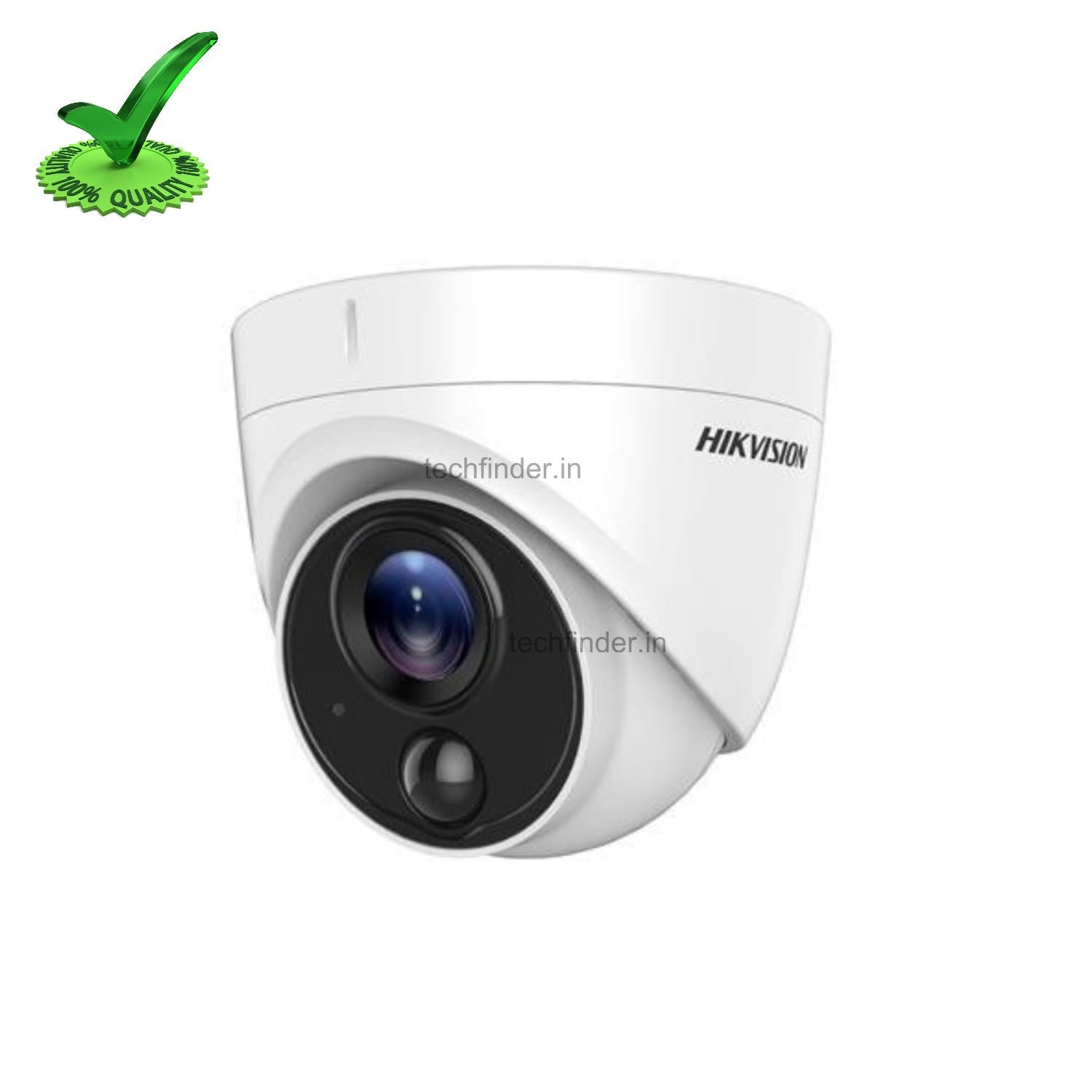

Hikvision DS-2CE71D8T-PIRL0 2MP Semi Metal HD Dome Camera

Camera Specification

• Image Sensor : 2MP CMOS
• Signal System : PAL/NTSC
• Frame Rate : PAL: 1080p@25fps, NTSC: 1080p@30fps
• Resolution : 1920 (H) × 1080 (V)
• Min. illumination : 0.003Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time : PAL: 1/25 s to 1/50, 000 s, NTSC: 1/30 s to 1/50, 000 s
• Slow Shutter : Max. 16 times
• Lens : 2.8 mm, 3.6 mm fixed focal lens
• Horizontal Field of View : 103.5°(2.8 mm), 79.1°(3.6 mm)
• Lens Mount : M12
• Strobe Light Alarm : Yes
• Day & Night : ICR
• WDR (Wide Dynamic Range) : ≥130 dB
• Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Menu

• White Light : Alarm/Off
• Image Mode : STD/HIGH-SAT
• AGC : Yes
• Day/Night Mode : Auto/Color/BW (Black and White)
• White Balance : Auto/Manual
• AE (Auto Exposure) Mode : WDR/BLC/HLC/Global
• Privacy Mask : 4 programmable privacy masks
• Motion Detection : 4 programmable motion areas
• Noise Reduction : 3D DNR, 2D DNR
• Language : English
• Function : Brightness, Sharpness, Mirror, Smart IR

Interface

• Video Output : 1 HD analog output
• Alarm : 1 alarm out

General

• Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
• Power Supply : 12 VDC ± 25%
• Power Consumption : Max. 3.9 W
• Ingress Protection : IP67
• Material : Enclosure: Plastic, Main body: Metal
• IR Range : Up to 20 m
• PIR Angle and Range : Angle: 110°, Range:11 m
• White Light Range : Up to 20 m
• Communication : HIKVISION-C
• Dimensions : Φ 109.8 mm × 89.75 mm (Φ 4.32" × 3.53")
• Weight : Approx. 327 g (0.72 lb.)

Extra Information

• SKU: DS2CE71D8TPIRL0
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 2
• Technology: Analogue
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
