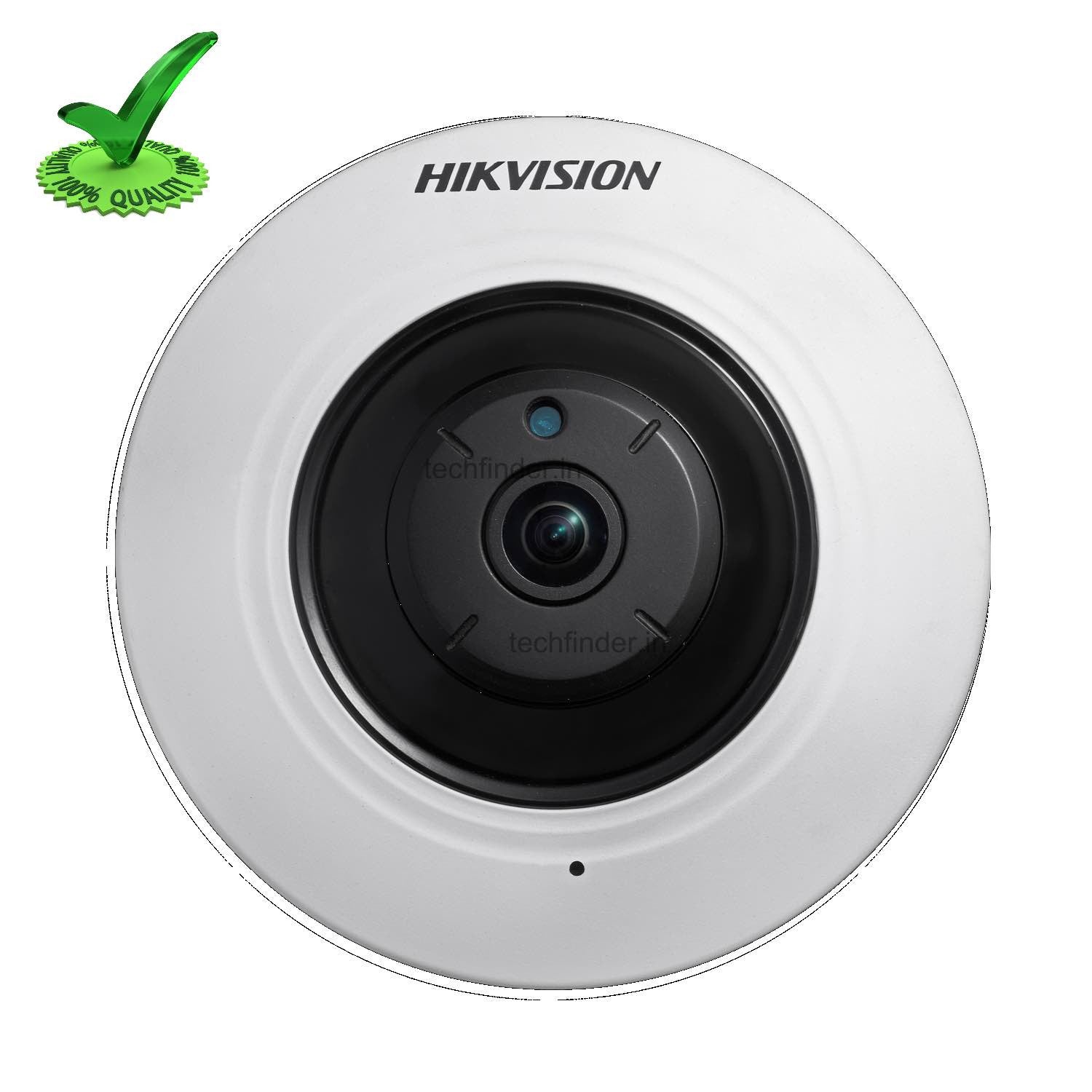

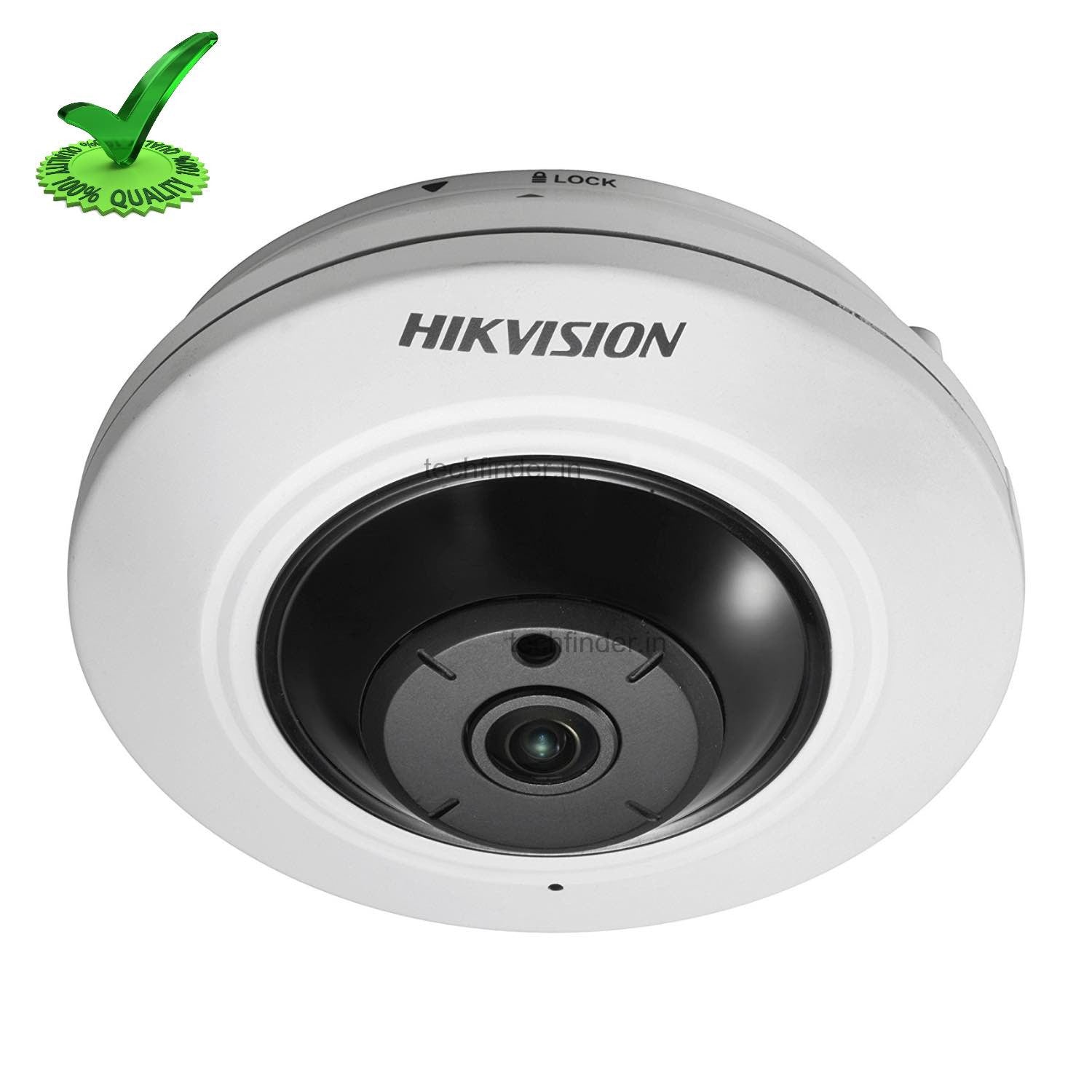

Hikvision DS-2CD2935FWD-I 3MP IP Network Fisheye Camera

Available Model

• DS-2CD2935FWD-IS

Camera Specification

• Image Sensor : 1/2.8" Progressive Scan CMOS
• Min. Illumination : Color: 0.005Lux @ (F1.2, AGC ON), 0.017Lux @ (F2.2, AGC ON), 0 Lux with IR on
• Shutter Speed : 1/3 s to 1/100,000 s, support slow shutter
• Lens : 1.16 mm @ F2.2, horizontal field of view: 180°, vertical field of view: 180°
• Lens Mount : M12
• Day &Night : IR cut filter with auto switch
• DNR : 3D DNR
• Wide Dynamic Range : 120 dB

Compression Standard

• Video Compression : Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG
• H.264 Type : Main Profile/High Profile
• H.264+ : Support
• H.265 Type : Main Profile
• H.265+ : Support
• Video Bit Rate : 32 Kbps to 16 Mbps
• Audio Compression(-S) : G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate(-S) : 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)


• Max. Resolution : 2048 × 1536
• Main Stream : 50Hz:25fps (2048 × 1536, 1600 × 1200, 1280 × 960)
• Max. Frame Rate: 60Hz:30fps (2048 × 1536, 1600 × 1200, 1280 × 960)
• Sub-Stream :50Hz: 25fps (352 × 288, 704 × 576)
• Max. Frame Rate : 60Hz: 30fps (352 × 240, 704 × 576)
• Image Settings : Saturation, brightness, contrast, and sharpness are adjustable via client software or web browser
• Image Enhancement : WDR/3D DNR/Backlight Compensation/Defog
• Day/Night Switch : Auto/Schedule/Triggered by Alarm In (-S model supports)
• Region of Interest Support : 1 fixed region for main stream and sub-stream
• Lens Distortion Correction : Support

Live View Display

• Mount Type : Support table, wall, and ceiling
• Display Mode : Support 14 display modes in total (including display modes of different mount types):, Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ,, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ

Audio (-S)

• Environment Noise Filtering : Support
• Audio I/O : Support
• Sampling Rate : 8kHz/16kHz/32kHz/44.1kHZ/48kHz

Network

• Network Storage : NAS (Support NFS,SMB/CIFS), built-in microSD/SDHC/SDXC card slot, up to 128 G, ANR
• Alarm Trigger : Video tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
• Detection : Motion detection, dynamic analysis, intrusion detection, line crossing detection
• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
• Standard : ONVIF (PROFILE S, PROFILE G), ISAPI
• General Function : One-key reset, anti-flicker, password protection, privacy mask, IP Address filtering, heartbeat, watermark
• Firmware Version : V5.5.52

Interface

• Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet port
• Audio (-S) : 1 audio input (line in), 1 audio output interface
• Alarm (-S) : 1 alarm input, 1 alarm output (12 VDC, max. 30 mA)
• On-board Storage : Built-in microSD/SDHC/SDXC slot, up to 128 G

General

• Operating Conditions : -10 °C to +50 °C (-14 °F to +122 °F), humidity 95% or less (non-condensing)
• Power Supply : 12 VDC, 0.4 A, max.5 W, PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max.6.5 W
• IR Range : Up to 8 m
• Dimensions : Φ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″)
• Weight : 600 g (1.32 lb.)

Extra Information

• SKU: DS2CD2935FWDI
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 3
• Technology: IP
• Camera Type: Special Camera
• Product Type: Camera
• PDF: View PDF
