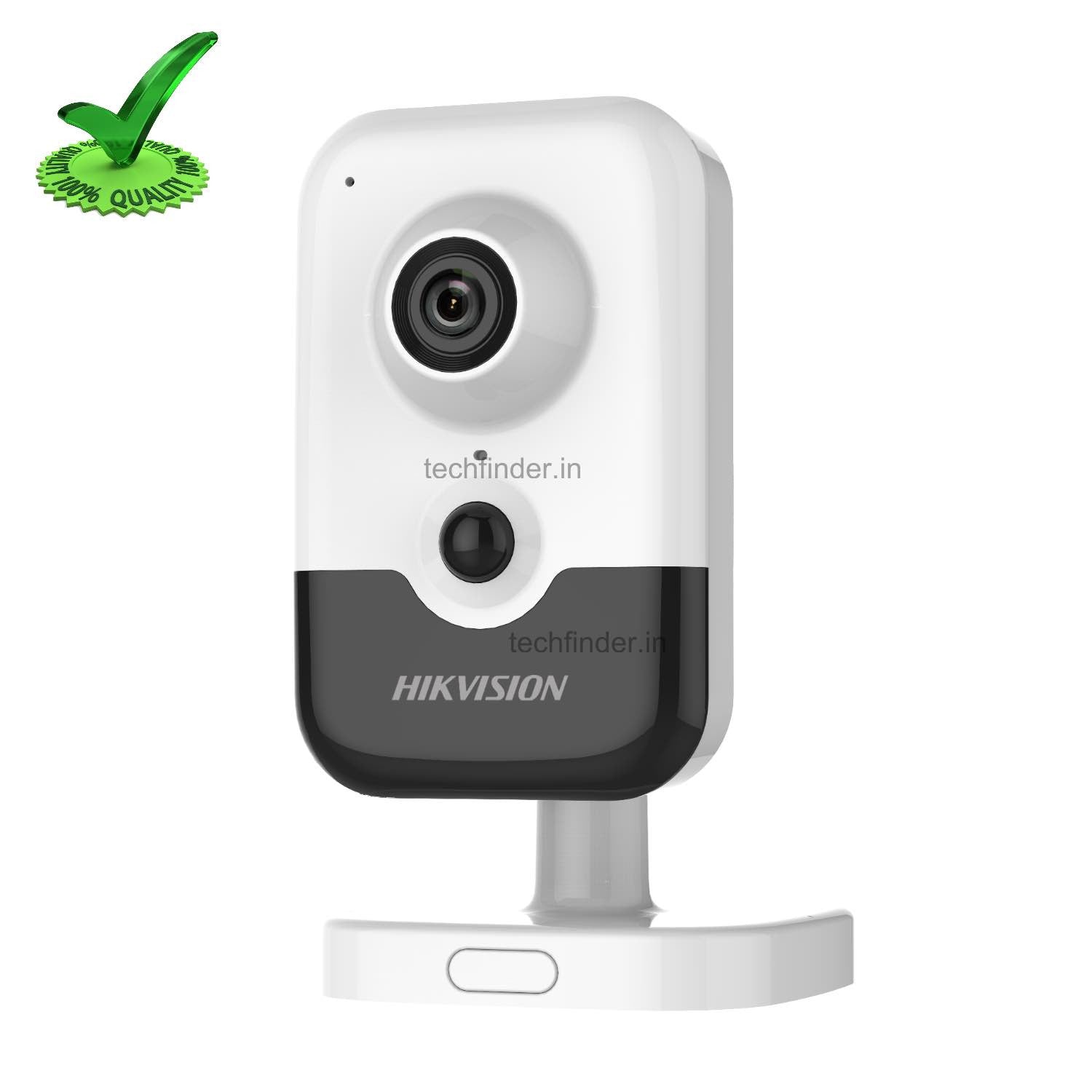

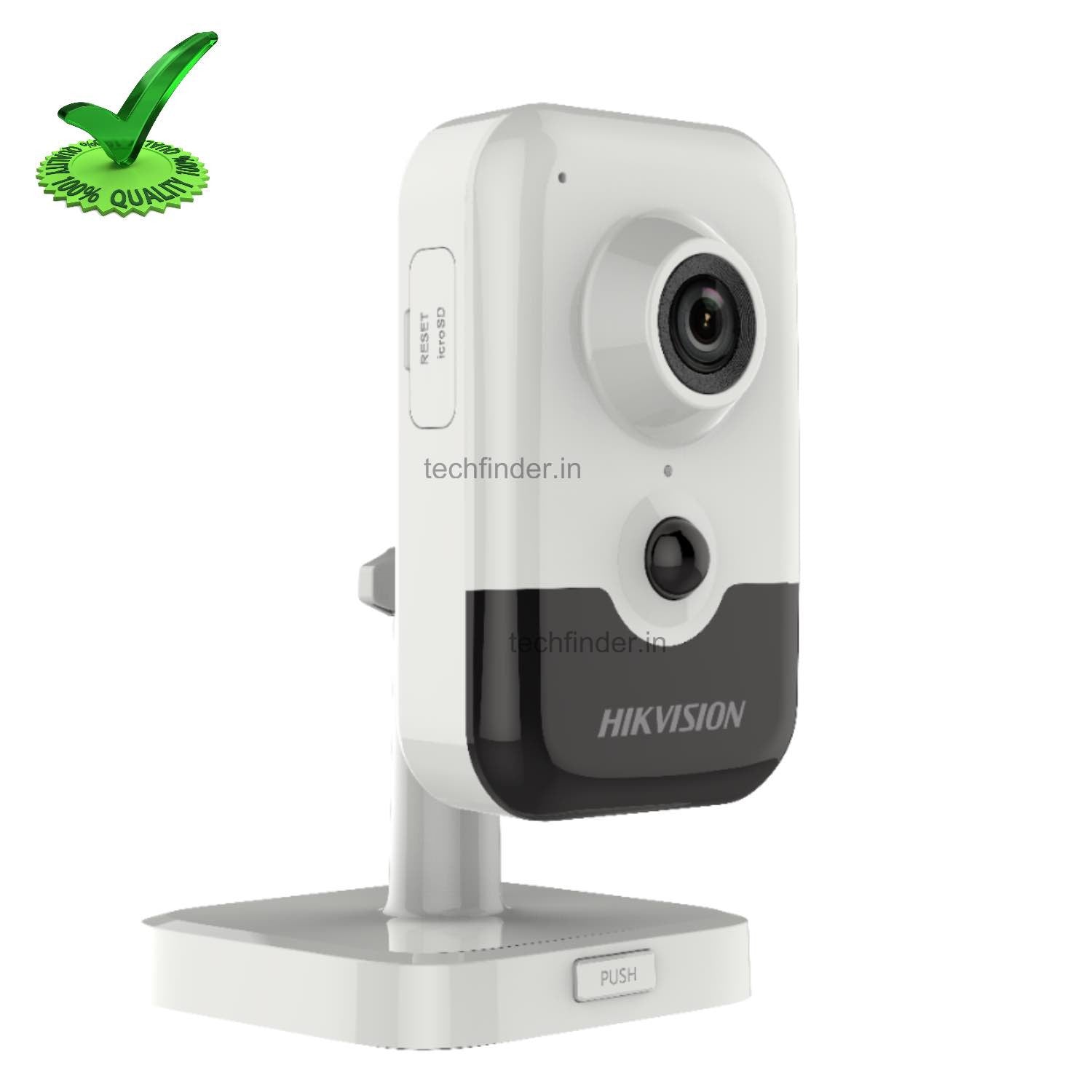

Hikvision DS-2CD2421G0-IW 2MP IP Network Cube Camera

Camera Specification

• Image Sensor : 1/2.7" Progressive Scan CMOS
• Min. Illumination : 2 mm: Color: 0.01 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR, 2.8 mm and 4 mm: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed : 1/3 s to 1/100, 000 s
• Slow Shutter : Yes
• Wide Dynamic Range : 120 dB
• Day & Night : IR cut filter
• Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Lens Type : Fixed focal length, 2, 2.8, and 4 mm optional
• Focal Length & FOV : 2 mm, horizontal FOV 137.2°, vertical FOV 80.1°, diagonal FOV 157.4°, 2.8 mm, horizontal FOV 113.4°, vertical FOV 59.8°, diagonal FOV 135.6°, 4 mm, horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°
• Aperture : 2 mm: F2.25, 2.8 mm: F1.6, 4 mm: F1.6
• Iris Type : Fixed
• Lens Mount : M12

DORI

• DORI : 2 mm: D: 30.3 m, O: 12.0 m, R: 6.1 m, I: 3.0 m, 2.8 mm: D: 37.3 m, O: 14.8 m, R: 7.5 m, I: 3.7 m, 4 mm: D: 52.9 m, O: 21.0 m, R: 10.6 m, I: 5.3 m

Illuminator

• IR Range : Up to 10 m
• Wavelength : 850 nm
• Smart Supplement Light : Yes

Video

• Max. Resolution : 1920 × 1080
• Main Stream : 50 Hz: 25 fps (1920 × 1080, 1280 × 720), 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream : 50 Hz: 25 fps (640 × 480, 640 × 360), 60 Hz: 30 fps (640 × 480, 640 × 360)
• Video Compression : Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate : 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.265 Type : Main Profile
• H.264+ : Main stream supports
• H.265+ : Main stream supports
• Bit Rate Control : CBR/VBR
• Scalable Video Coding (SVC) : Yes
• Region of Interest (ROI) : 1 fixed region for main stream

Audio

• Environment Noise Filtering : Yes
• Audio Sampling Rate : 8 kHz/16 kHz
• Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)

Network

• Simultaneous Live View : Up to 6 channels
• API : Open Network Video Interface, ISAPI
• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS, SNMP, PPPoE
• User/Host : Up to 32 users. 3 levels: administrator, operator and user
• Security : Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage : NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client : iVMS-4200, Hik-Connect
• Web Browser : Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+

Wi-Fi

• Wi-Fi Protocol : -IW:802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
• Frequency Range : -IW:2.412 GHz - 2.472 GHz
• Channel Bandwidth : -IW:20/40 MHz
• Modulation : -IW:802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
• Transfer Rate : -IW:11b/g: 54 Mbps, 11n: up to 150 Mbps
• Wireless Range : -IW: Up to 50 m (The performance varies based on actual environment)


• Day/Night Switch : Day, Night, Auto, Schedule
• Image Enhancement : BLC, 3D DNR
• Image Settings : Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.

PIR

• PIR Angle : Horizontal: 90°, vertical: 80°
• PIR Range : Up to 8 m

Interface

• Built-in Microphone : Yes
• Built-in Speaker : Power: 1 W. Max. sound pressure level: 10 cm: 91 dB.
• On-board Storage : Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Hardware Reset : Yes
• Communication Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event : Motion detection, video tampering alarm, exception
• Smart Event : Line crossing detection, intrusion detection

General

• Language : 33 languages, English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Linkage Method : Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
• Firmware Version : V5.5.122
• General Function : Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Storage Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions : -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
• Power Supply : 12 VDC ± 25%, PoE: 802.3af, Class 3
• Power Consumption and Current : -I:12 VDC, 0.49 A, max. 5.8 W, PoE (802.3af, 36 V to 57 V), 0.12 A to 0.19 A, max. 6.8 W, -IW:12 VDC, 0.66 A, max. 7.9 W, PoE (802.3af, 36 V to 57 V), 0.16 A to 0.25 A, max. 8.9 W
• Power Interface : Ø 5.5 mm coaxial power plug
• Camera Dimension :2 mm: 102.9 mm × 65.2 mm × 28.8 mm (4.1" × 2.6" × 1.1"), 2.8 mm and 4 mm: 102.9 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
• Package Dimension : 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
• Camera Weight : Approx. 115 g (0.3 lb.)
• With Package Weight : Approx. 330 g (0.7 lb.)

Approval

• EMC : FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011+A1: 2014)
• RF : -IW:FCC ID (FCC Part 15.247(BT or 2.4G));CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
• Safety : CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
• Environment : CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
