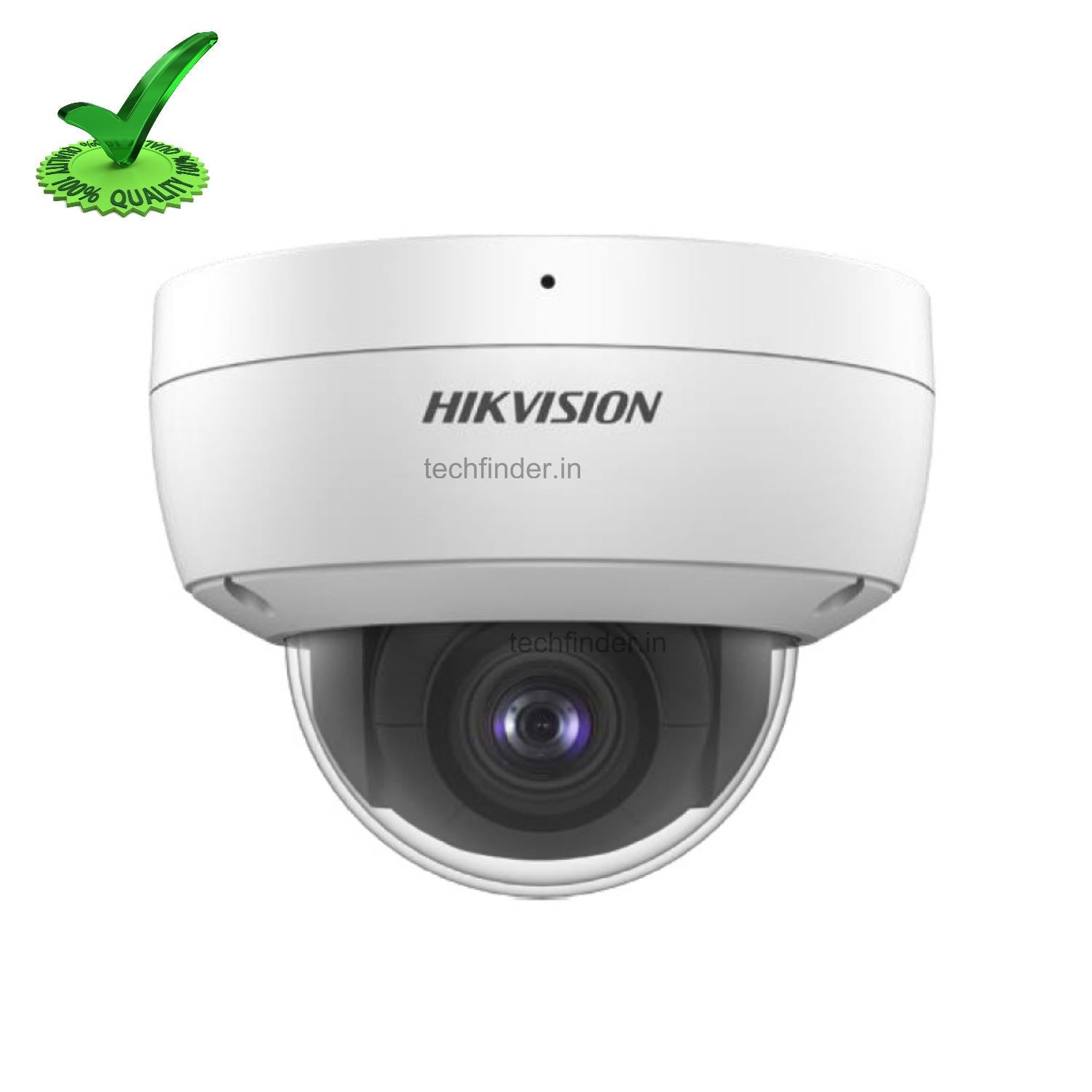

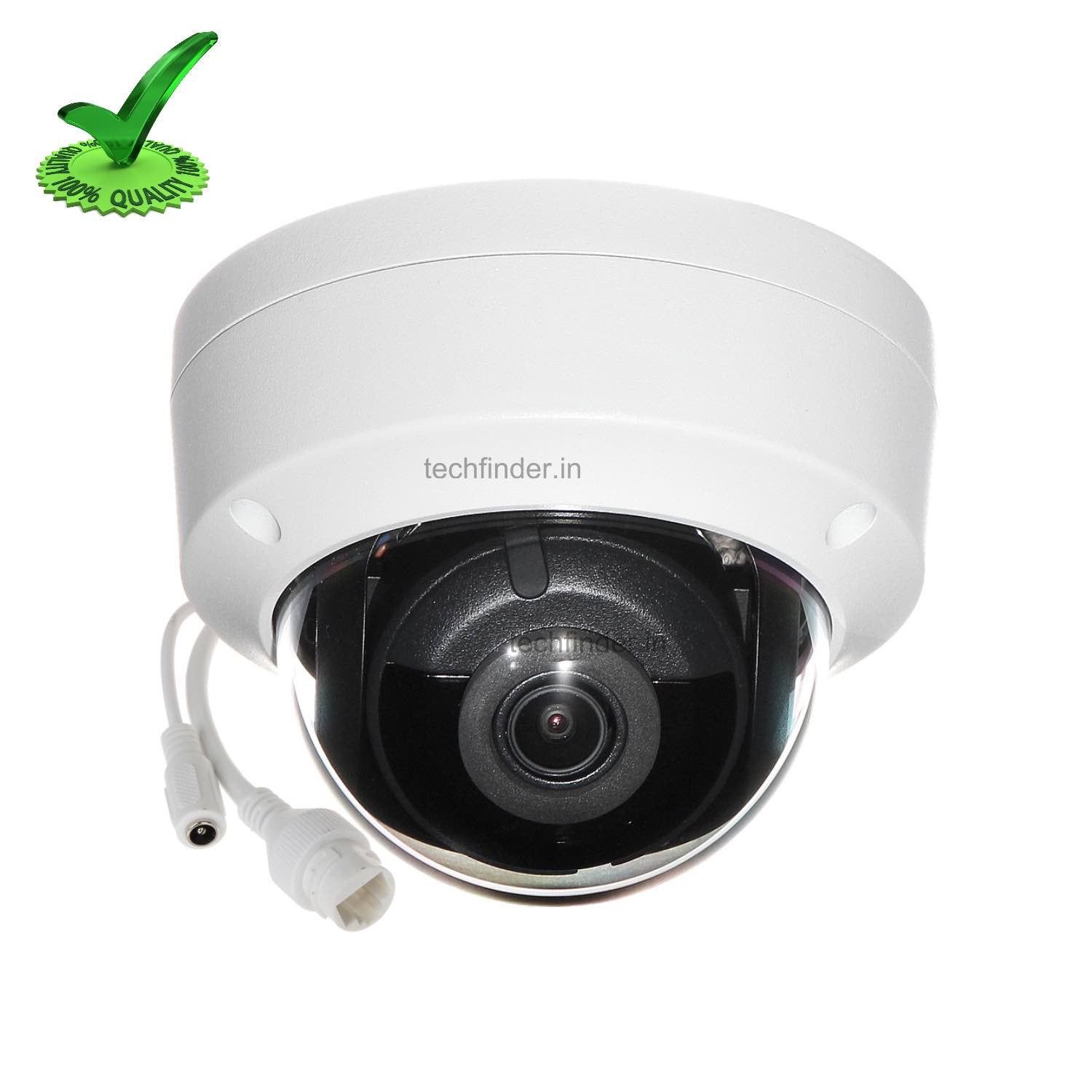

Hikvision DS-2CD2143G0-IU 4MP IP Dome Camera

Camera Specifications

• Image Sensor : 1/3" Progressive Scan CMOS
• Min. Illumination : Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed : 1/3 s to 1/100,000 s
• Slow Shutter : Yes
• Day & Night : IR Cut Filter
• WDR : 120 dB
• Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

• Lens Type : Fixed lens, 2.8/4/6 mm
• Aperture : F1.6
• FOV : 2.8 mm: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°, 4 mm: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°, 6 mm: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°
• Lens Mount : M12

Illuminator

• IR Range : Up to 30 m
• Wavelength : 850 nm

Video

• Max. Resolution : 2688 × 1520
• Main Stream : 50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720), 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream : 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream : 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288), 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
• Video Compression : Main stream/third stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG
• H.264 Type : Main Profile/High Profile
• H.264+ : Main stream supports
• H.265 Type : Main Profile
• H.265+ : Main stream supports
• Video Bit Rate : 32 Kbps to 16 Mbps
• Scalable Video Coding (SVC) : H.264 and H.265 encoding support

Audio

• Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM/MP3
• Audio Bit Rate : 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps320Kbps(MP3)
• Environment Noise Filtering : Yes
• Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set

• Smart Event : Line crossing detection, intrusion detection and face detection
• Basic Event : Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Linkage Method : Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
• Region of Interest : 1 fixed region for main stream and sub-stream


• Image Enhancement : BLC, HLC, 3D DNR
• Image Setting : Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
• Day/Night Switch : Day/Night/Auto/Schedule

Network

• Network Storage : microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR
• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• API : ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Simultaneous Live View : Up to 6 channels
• User/Host : Up to 32 users, 3 levels: administrator, operator and user
• Client : iVMS-4200, Hik-Connect, Hik-Central
• Web Browser : Plug-in required live view: IE8+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+, Local Service: Chrome 41.0+, Firefox 30.0+

Interface

• Communication Interface : 1 RJ45 100M self-adaptive Ethernet port
• Audio : 1 audio input (built-in microphone)
• On-board storage : Built-in micro SD/SDHC/SDXC slot, up to 128 GB

General

• Web Client Language : 32 languages, English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function : Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via email, pixel counter, HTTP listening
• Reset : Reset via reset button on camera body, web browser and client software
• Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Power Supply : 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
• Power Consumption and Current : 12 VDC, 0.5 A, max. 6 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W
• Material : Camera body: metal, bubble: plastic
• Dimensions : Camera: Φ121 × 92 mm (Φ4.8" × 3.6"), With package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3")
• Weight : Camera: Approx. 570 g (1.3 lb.), With package: Approx. 950 g (2.1 lb.)

Approval

• EMC : 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:2015, KN 35: 2015
• Safety : UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
• Chemistry : 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
• Protection : Ingress protection: IK10 (IEC 62262:2002), IP66 (IEC 60529-2013)

Extra Information

• SKU: DS2CD2143G0IU
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 4
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
