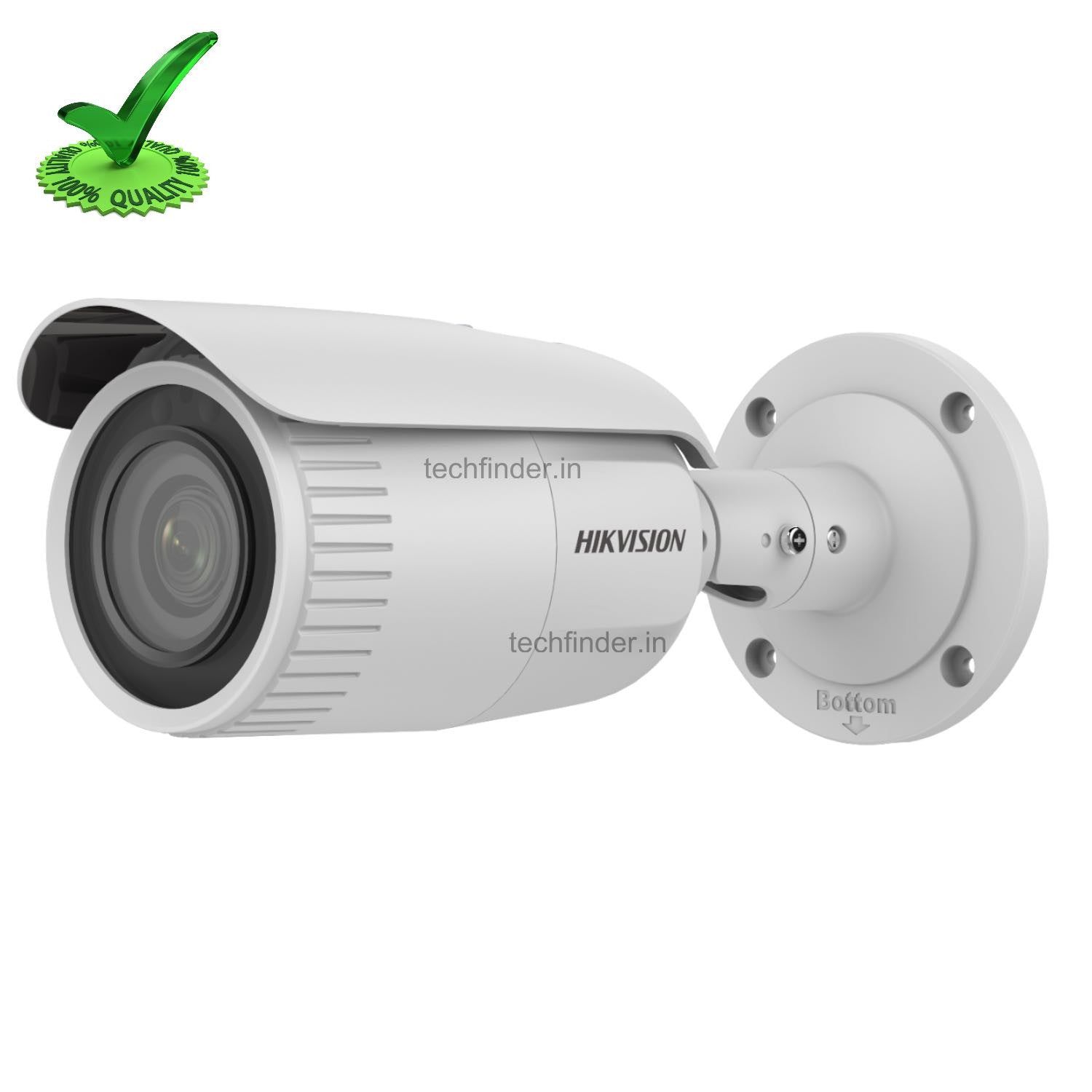

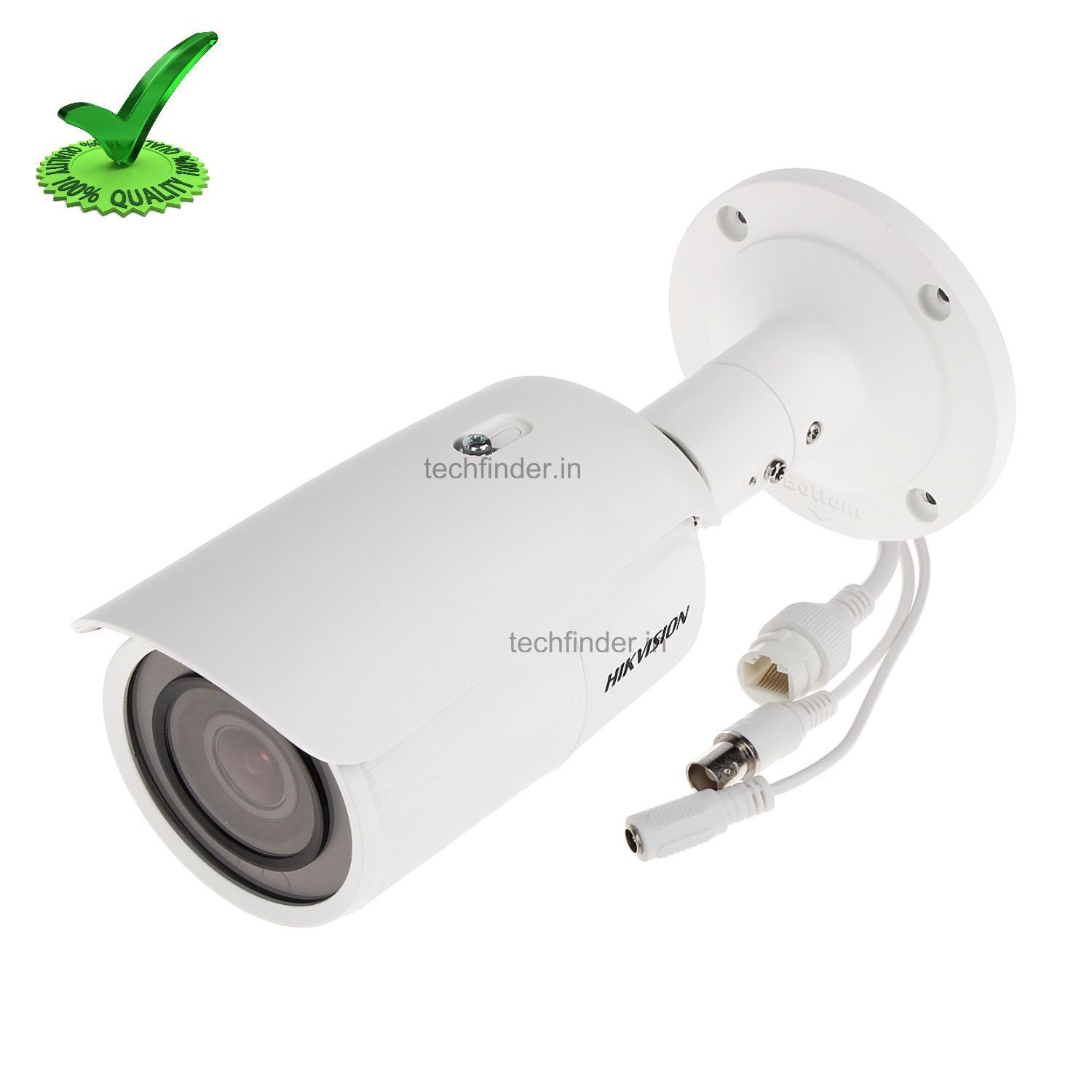

Hikvision DS-2CD1643G0-I 4MP IP Bullet Camera

Available Models

• DS-2CD1643G0-I (2.8 mm to 12 mm)
• DS-2CD1643G0-IZ (2.8 mm to 12 mm)

Camera Specification

• Image Sensor : 1/3" Progressive Scan CMOS
• Min. Illumination : Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
• Shutter Speed : 1/3 s to 1/100, 000 s, support slow shutter
• Slow Shutter : Yes
• Auto-Iris : No
• Day & Night : IR cut filter
• Digital Noise Reduction : 3D DNR
• WDR : 120 dB
• Angle Adjustment : Pan: 0° to 360°, tilt: 0°to 90°, rotation: 0° to 360°

Lens

• Focal Length : 2.8 to 12 mm
• Aperture : F1.6
• Focus : -I: Manual-IZ: Auto
• FOV : Horizontal field of view: 98°to 28°, Vertical field of view: 51°to 16°, Diagonal field of view: 115°to 32°
• Lens Mount : Φ14

IR

• IR Range : Up to 30 m
• Wavelength : 850 nm

Compression Standard

• Video Compression : Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.264+ : Main stream supports
• H.265 Type : Main Profile
• H.265+ : Main stream supports
• Video Bit Rate : 32 Kbps to 8 Mbps
• Smart Feature-set
• Region of Interest : 1 fixed region for main stream and sub-stream


• Max. Resolution : 2560 × 1440
• Main Stream : Max. Frame Rate, 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720), 60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub-stream : Max. Frame Rate, 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Image Enhancement : BLC, 3D DNR
• Image Settings : Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch : Auto, scheduled

Network

• Network Storage : Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR
• Alarm Trigger : Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• General Function : One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Firmware Version : 5.5.3
• API : ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View : Up to 6 channels
• User/Host : Up to 32 users, 3 levels: Administrator, Operator and User
• Client : iVMS-4200, iVMS-4500, iVMS-5200
• Web Browser : IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

• Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet port
• Video Output (Without -Z) : 1Vp-p composite output (75 Ω/BNC)
• Reset Button : Yes

General

• Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
• Power Supply : 12 VDC ± 20%, 5.5 mm coaxial power plug, PoE (802.3af, class 3)
• Power Consumption and Current : -IZ: 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W, -I: 12 VDC, 0.6 A, max. 7 W; PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9 W
• Protection Level : IP67
• TVS : 2000V lightning protection, surge protection and voltage transient protection
• Material : Metal
• Dimensions : 105 mm × 105 mm × 145 mm (4.1" × 4.1" × 5.7")
• Weight : Camera: approx. 1035 g (2.3 lb.), With package: approx. 1550 g (3.4 lb.)

Extra Information

• SKU: DS2CD1643G0I
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 4
• Technology: IP
• Camera Type: Bullet
• Product Type: Camera
• PDF: View PDF
