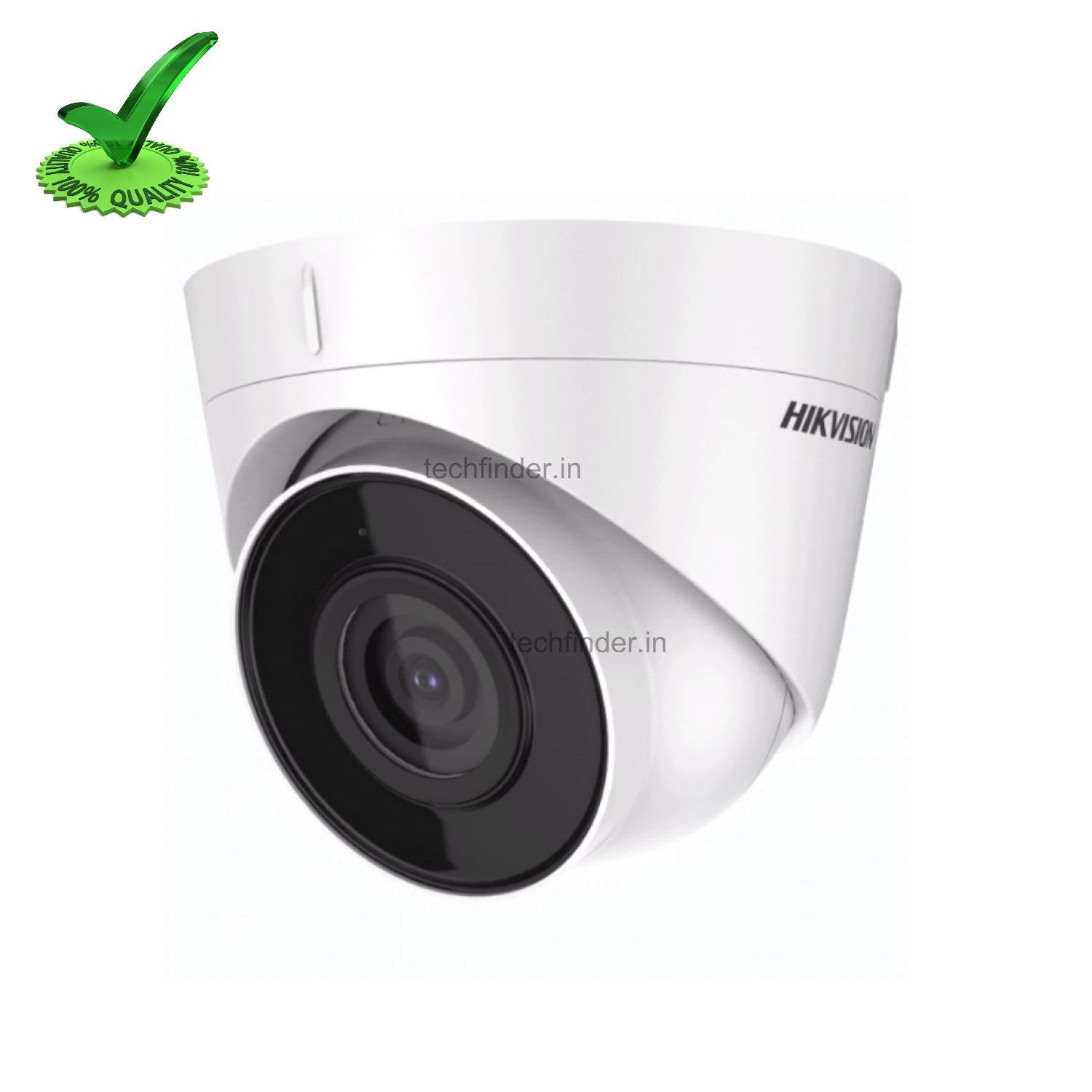

Hikvision DS-2CD134W-I 4MP IP Dome Camera

Camera Specification

• Image Sensor : 1/3" progressive scan CMOS
• Min. Illumination : Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
• Shutter Speed : 1/3 s to 1/100, 000 s, support slow shutter
• Slow Shutter : Yes
• Auto-Iris : No
• Day &Night : IR cut filter
• Digital Noise Reduction : 3D DNR
• WDR Digital : WDR
• Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

Lens

• Focal Length : 2.8 mm, 4 mm, 6 mm
• Aperture : F2.0
• Focus : No
• FOV : 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°, 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°, 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°
• Lens Mount : M12

IR

• IR Range : Up to 30 m
• Wavelength : 850 nm

Compression Standard

• Video Compression : Main stream: H.265/H.264, Sub stream: H.265/H.264/MJPEG
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.264+ : Main stream supports
• H.265 Type : Main Profile
• H.265+ :Main stream supports
• Video Bit Rate : 32 Kbps to 8 Mbps
• Smart Feature-set
• Region of Interest : 1 fixed region for main stream and sub-stream


• Max. Resolution : 2560 × 1440
• Main Stream : Max. Frame Rate, 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720), 60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub-stream : Max. Frame Rate, 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Image Enhancement : BLC, 3D DNR
• Image Settings : Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch : Auto, scheduled

Network

• Network Storage : NAS (NFS, SMB/CIFS)
• Alarm Trigger : Motion detection, video tampering alarm, illegal login
• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• General Function : Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Firmware Version : 5.5.3
• API : ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View : Up to 6 channels
• User/Host : Up to 32 users, 3 levels: Administrator, Operator and User
• Client : iVMS-4200, Hik-Connect, iVMS-5200
• Web Browser : IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

• Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet port

General

• Operating Conditions : -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
• Power Supply :12 VDC ± 25%, 5.5 mm coaxial power plug, PoE (802.3af, class 3)
• Power Consumption and Current : 12 VDC, 0.4 A, Max: 5 W, PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
• Ingress Protection: IP67
• TVS : 2000V lightning protection, surge protection and voltage transient protection
• Material : Metal & Plastic
• Dimensions : Camera: Ø 110 mm × 93.2 mm ( 4.3" × 3.7"), With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Weight : Camera: approx. 350 g (0.77 lb.)
• With package: approx. 610 g (1.3 lb.)

Extra Information

• SKU: DS2CD134WI
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 4
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
