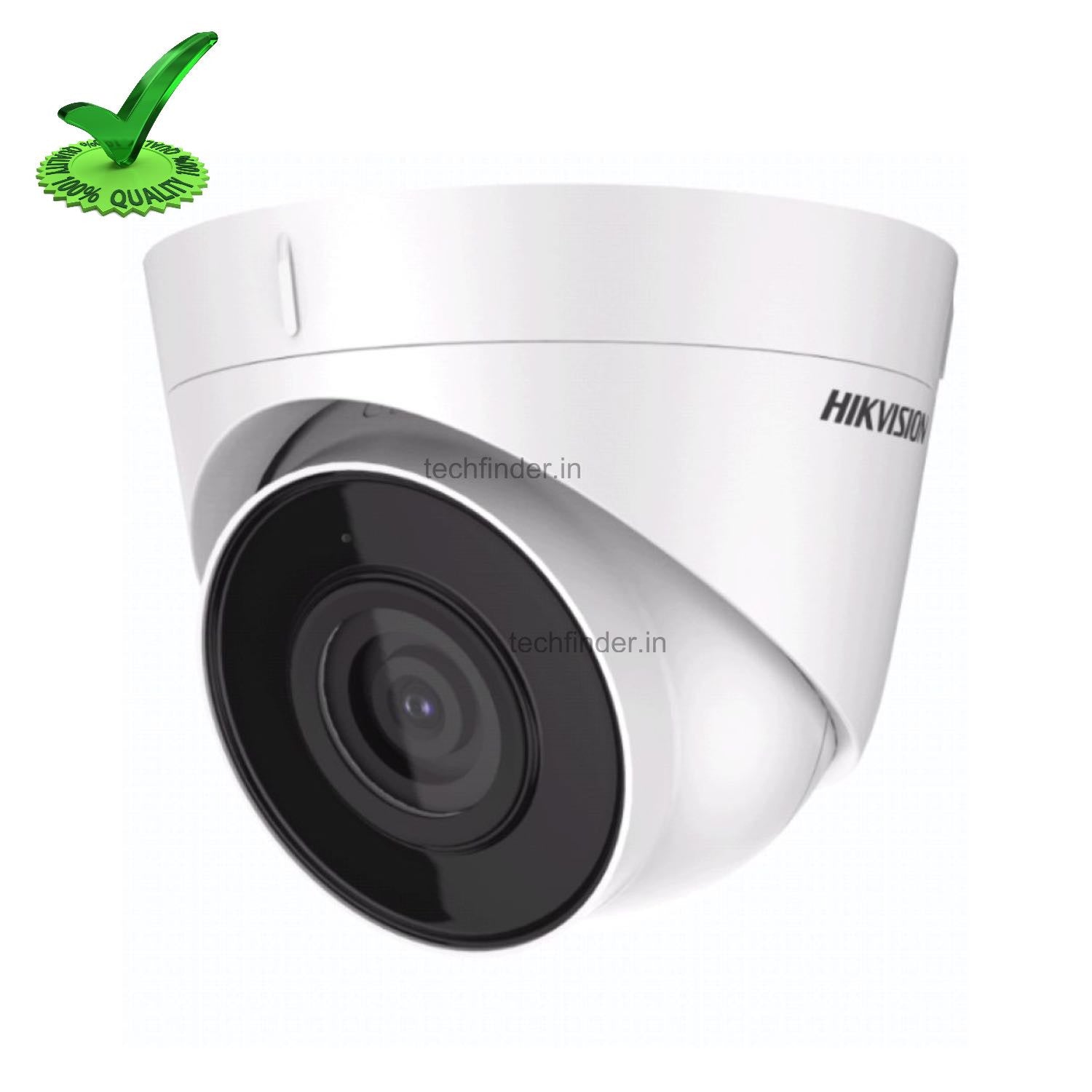

Hikvision DS-2CD1343G0E-I 4MP IP Dome Camera

Camera Specifications

• Image Sensor : 1/3" Progressive Scan CMOS
• Min. Illumination : Color: 0.028 Lux @ (F2.0, AGC ON)
• Shutter Speed : 1/3 s to 1/100,000 s
• Slow Shutter : Yes
• Day & Night : IR Cut Filter
• WDR : DWDR
• Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type : Fixed lens, 2.8/4 mm
• Aperture : F2.0
• FOV : 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°, 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
• Lens Mount : M12

Illuminator

• IR Range : Up to 30 m
• Wavelength : 850 nm

Video

• Max. Resolution : 2560 × 1440
• Main Stream : 50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720), 60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub-Stream : 50Hz: 20fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
• Video Compression : Main stream: H.265+/H.264+/H.265/H.264, Sub-stream: H.265/H.264/MJPEG
• H.264 Type : Baseline Profile/Main Profile
• H.265 Type : Main Profile
• Video Bit Rate : 32 Kbps to 8 Mbps
• Smart Feature-Set
• Basic Event : Motion detection, video tampering alarm, exception (illegal login)
• Linkage Method : Upload to FTP, notify surveillance center, send email
• Region of Interest : 1 fixed region for main stream


• Image Enhancement : BLC, HLC, 3D DNR
• Image Setting : Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
• Day/Night Switch : Day/Night/Auto/Schedule
• S/N Ratio : > 50dB

Network

• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• API : ONVIF (PROFILE S), ISAPI, SDK
• Security : Password protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)
• Simultaneous Live View : Up to 6 channels
• User/Host : Up to 32 users, 3 levels: administrator, operator and user
• Client : iVMS-4200, Hik-Central, Hik-Connect
• Web Browser : IE8+, Chrome 31.0-44, Firefox30.0-51, Safari8.0+

Interface

• Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet port

General

• General Function : Anti-flicker, heartbeat, mirror, privacy mask
• Reset : Reset via web browser and client software
• Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Power Supply : 12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, class 3)
• Power Consumption and Current : 12 VDC, 0.34 A, max. 4 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 5 W
• Material : Camera body: metal, bottom base: plastic
• Dimensions : Camera: Φ110 mm × 94.4 mm (Φ4.3" × 3.7"), With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
• Weight : Camera: approx. 360 g (0.8 lb.), With package: approx. 580 g (1.3 lb.)

Approval

• EMC : 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:2015, KN 35: 2015
• Safety : UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
• Chemistry : 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
• Protection : Ingress protection: IP67 (IEC 60529-2013)

Extra Information

• SKU: DS2CD1343G0EI
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 4
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
