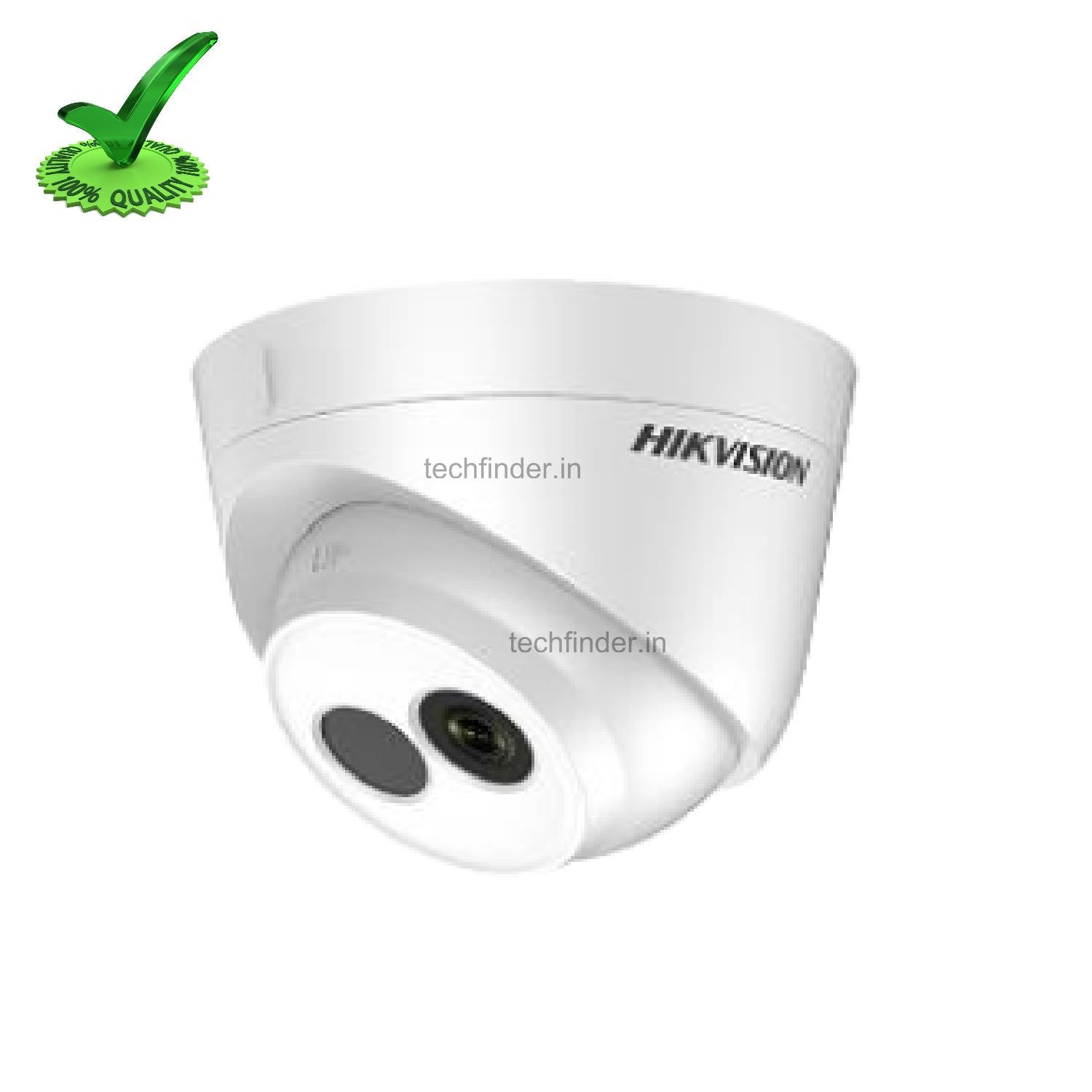

Hikvision DS-2CD1313G0E-I 1.3 MP IP Dome Camera

Camera Specifications

• Image Sensor : 1/2.8" progressive scan CMOS
• Min. Illumination : Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
• Shutter Speed : 1/3 s to 1/100, 000 s
• Slow Shutter : Yes
• Auto-Iris : No
• Day &Night : IR cut filter
• Digital Noise Reduction : 3D DNR
• WDR : DWDR
• Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

Lens

• Focal Length : 2.8 mm, 4 mm
• Aperture : F2.0
• Focus : Fixed
• FOV : 2.8 mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°, 4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
• Lens Mount : M12

IR

• IR Range : Up to 10 m
• Wavelength : 850 nm

Compression Standard

• Video Compression : Main stream: H.265+/H.265/H.264+/H.264, Sub stream: H.265/H.264/MJPEG
• H.264 Type : Main Profile/High Profile/Baseline Profile
• H.265 Type : Main Profile
• Video Bit Rate : 32 Kbps to 8 Mbps
• Smart Feature-set
• Region of Interest : 1 fixed region for main stream


• Max. Resolution : 1280 × 960
• Main Stream : Max. Frame Rate,50Hz: 25fps (1280 × 960, 1280 × 720), 60Hz: 30fps (1280 × 960, 1280 × 720)
• Sub-stream : Max. Frame Rate, 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Image Enhancement : BLC, 3D DNR
• Image Settings : Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch : Auto, scheduled, day, night

Network

• Alarm Trigger : Motion detection, video tampering alarm, illegal login
• Protocols : TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
• General Function : Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Firmware Version : V5.5.83
• API : ONVIF (PROFILE S), ISAPI
• Simultaneous Live View : Up to 6 channels
• User/Host : Up to 32 users, 3 levels: Administrator, Operator and User
• Client : iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser : IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

• Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet port

General

• Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
• Power Supply : 12 VDC ± 25%, 5.5 mm coaxial power plug, PoE (802.3af, class 3)
• Power Consumption and Current : 12 VDC, 0.3 A, max: 3.5 W, PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W
• Weight : 190 g (0.4 lb.)

Extra Information

• SKU: DS2CD1313G0EI
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 1.3
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
• PDF: View PDF
