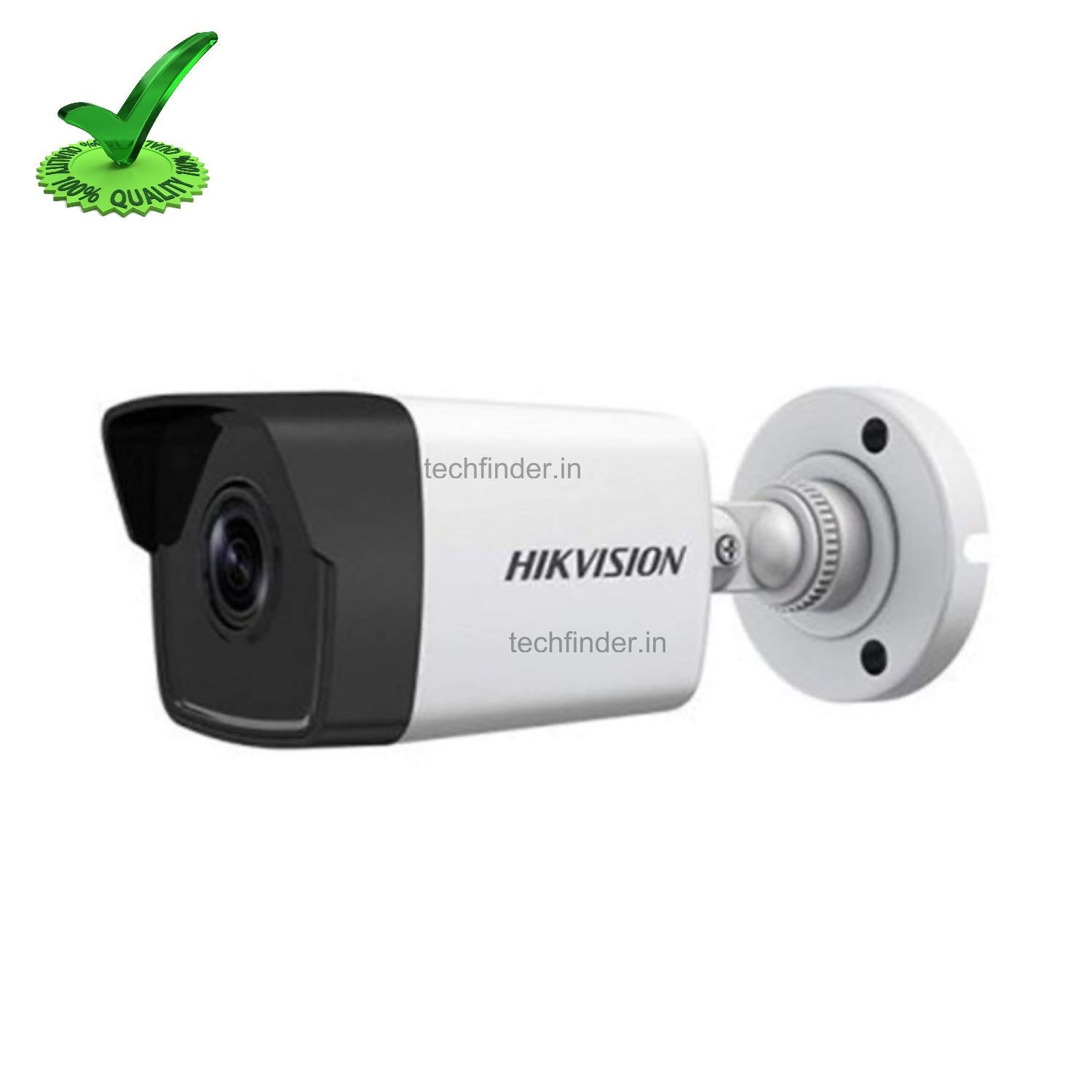

Hikvision DS-2CD125W-I 5MP IP Bullet Camera

Camera Specifications

• Image Sensor : 1/2.7" Progressive Scan CMOS
• Min. Illumination : Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
• Shutter Speed : 1/3 s to 1/100,000 s
• Slow Shutter : Yes
• Auto-Iris : No
• Day & Night : IR Cut Filter
• Digital Noise Reduction : 3D DNR
• Wide Dynamic Range : 120 dB
• 3-Axis Adjustment : Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

• Focal Length : 2.8/4/6 mm
• Aperture : F2.0
• Focus : Fixed
• FOV : 2.8 mm, horizontal FOV: 100°, vertical FOV: 74°, diagonal FOV: 130°, 4 mm, horizontal field of view: 75°, vertical FOV: 55°, diagonal FOV: 98°, 6 mm, horizontal field of view: 49°, vertical FOV: 37°, diagonal FOV: 60°
• Lens Mount : M12

IR

• IR Range : Up to 30 m
• Wavelength : 850nm

Compression Standard

• Video Compression : Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.264+ : Main stream supports
• H.265 : Type Main Profile
• H.265+ : Main stream supports
• Video Bit Rate : 32 Kbps to 8Mbps
• Smart Feature-set
• Region of Interest Support : 1 fixed region for main stream and sub-stream


• Max. Resolution : 2560 × 1920
• Main Stream : 50Hz:12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720), 60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream : 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Image Enhancement : BLC/3D DNR
• Image Settings : Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
• Day/Night Switch : Auto/Scheduled/Day/Night

Network

• Alarm Trigger : Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
• Network Storage : NAS (NFS,SMB/CIFS)
• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1x
• General Function : Heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Firmware Version : V5.5.52
• API : ONVIF(PROFILE S,PROFILE G), ISAPI
• Simultaneous Live View : Up to 6 channels
• User/Host : Up to 32 users, 3 levels: Administrator, Operator and User
• Client : iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser : IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

• Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet port

General

• Operating Conditions : -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Supply : 12 VDC ± 25%, PoE: 802.3af, class 3
• Power Consumption and Current : 12 VDC, 0.5 A, max. 5 W, PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 6.5 W
• Protection Level : IP67
• Material : Front cover: metal, bracket: plastic, camera body: plastic
• Dimensions : Camera: Ø 70 mm × 172.7mm (2.7" × 6.8"), With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
• Weight : Camera: 300g (0.7 lb), With package: 550g (1.2 lb)

Extra Information

• SKU: DS2CD125WI
• Warranty: 2 Years
• Brand: Hikvision
• Megapixel: 5 Megapixel
• Technology: IP
• Camera Type: Bullet
• Product Type: Camera
• PDF: View PDF
