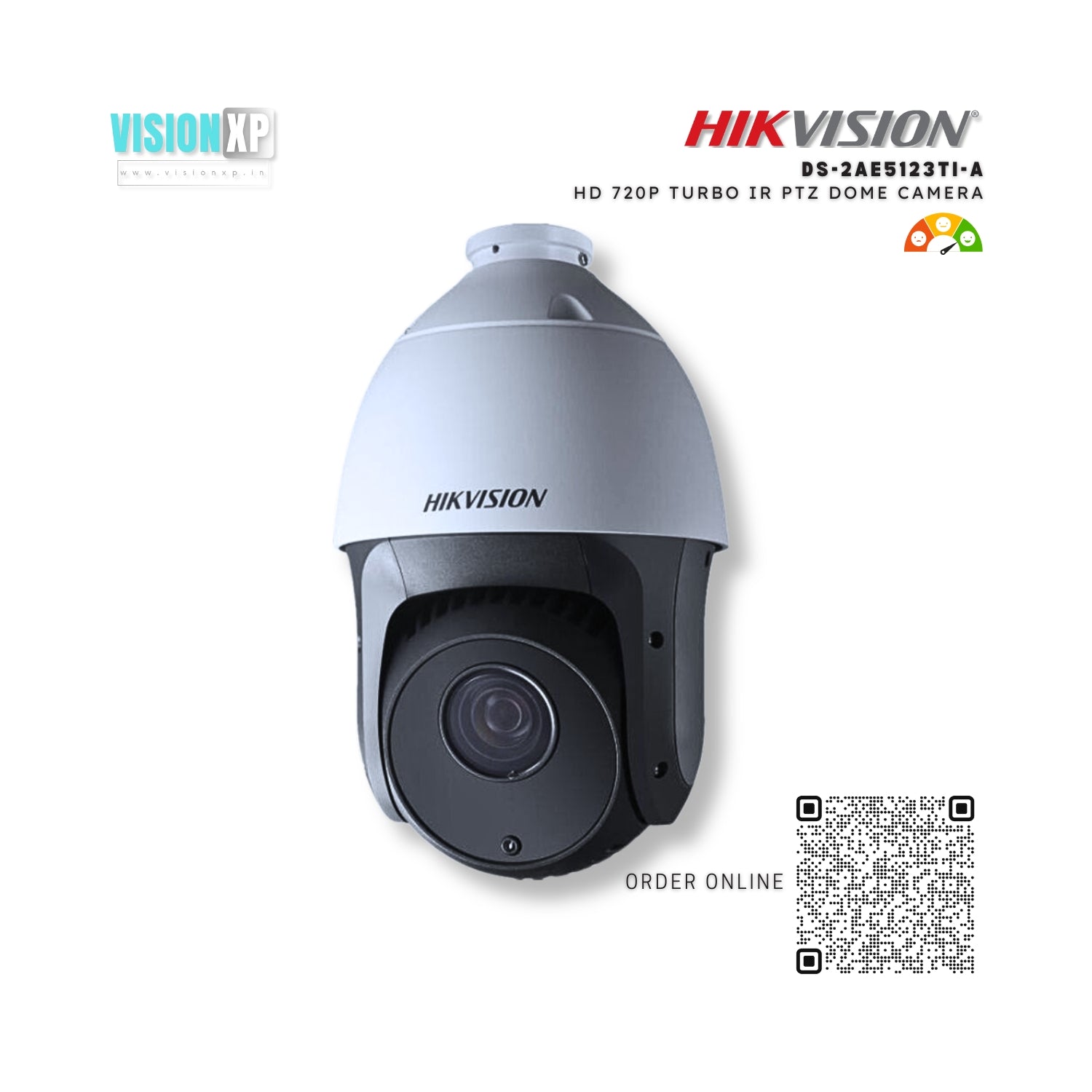

Hikvision DS-2AE5123TI-A HD 720P Turbo IR PTZ Dome Camera
Hikvision DS-2AE5123TI-A PTZ Dome Cameras are able to capture high quality images in low light environment with its black anti-reflective glass. The black anti-reflective glass increase the luminousness which can reach up to 150m IR distance. Embedded with 1/3’’ progressive scan CMOS chip makes DWDR and 1MP/2MP real-time resolution possible. With the 23X optical zoom Day/Night lens, the camera offers more details over expansive areas.
Key Features
- 1/3" Progressive Scan CMOS
- 1280x720/1920x1080
- 23X Optical Zoom
- DWDR
- 3D intelligent positioning function
- Up to 150m IR distance
- Support Turbo HD and BNC output
DS-2AE5123TI/5223TI-A HD720P/1080P Turbo IR PTZ
PTZ Dome Camera | Function Description
System function:
- 1/3’’ high performance CMOS, up to 1280x720/1920x1080 resolution
- ±0.1° Preset Accuracy
- Self-adaptive to HIKVISION, Pelco-P/D protocol
- 3D intelligent positioning function
- Power-off memory function: restore PTZ & Lens status after reboot
- Built-in temperature sensor, with display of internal temperature
- Lightning protection, surge protection and voltage transient protection
- IP66 standard
- RS-485 communication diagnosis
- Scheduled PTZ movement
- UTC(Up the Coax) function
- CVBS output
Camera function: - Auto focus, auto white balance, backlight compensation and auto/manual day & night switch
- Privacy masks programmable
- 3D DNR, DWDR
PTZ function:
- 360° endless pan range and -15°-90° tilt range
- 400°/s Pan Preset Speed and 200°/s Tilt Preset Speed
- 0.1°-400°/s Manual Pan Speed and 0.1°-120°/s Manual Tilt Speed
- 256 presets programmable; preset image freezing capability
- 8 patrols, up to 32 presets per patrol
- 4 patterns, with the total recording time not less than 10 minutes
- Proportional zoom function
- Park action: auto call up of PTZ movement, after a defined time of inactivity
- IR function:
- 0 Lux minimum illumination
- Up to 150m IR distance
- IR light MTBF reaching up to 30,000 hours
- Smart IR mode
DS-2AE5123TI/5223TI-A HD720P/1080P Turbo IR PTZ
Dome Camera
|
Model |
DS-2AE5123TI-A |
DS-2AE5223TI-A |
|
Camera Module |
||
|
Image Sensor |
1/3’’ Progressive Scan CMOS |
|
|
Min. Illumination |
Color: 0.05Lux@(F1.4,AGC ON); B/W: 0.005Lux@(F1.4,AGC ON) |
|
|
Max. Image Resolution |
1280 × 720 |
1920 x 1080 |
|
Focal Length |
4-92.0mm, 23x |
|
|
Digital Zoom |
16X |
|
|
Zoom Speed |
Approx.3s(Optical Wide~Tele) |
|
|
Angle of View |
49-2.2 degree(Wide-Tele) |
|
|
Min. Working Distance |
10~1,000mm(Wide~Tele) |
|
|
Aperture Range |
F1.4~F3.5 |
|
|
Focus Mode |
Auto / Semiautomatic / Manual |
|
|
DWDR |
Support |
|
|
S / N Ratio |
≥ 50dB |
|
|
Shutter Time |
1-1/10,000s |
|
|
AGC |
Auto / Manual |
|
|
White Balance |
Auto / Manual / ATW / Indoor / Outdoor |
|
|
Day & Night |
IR Cut Filter |
|
|
Privacy Mask |
8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
|
|
Enhancement |
3D DNR |
|
|
Pan and Tilt |
||
|
Range |
Pan:360° endless; Tilt: -15°~90°(Auto Flip) |
|
|
Speed |
Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s |
|
|
Number of Preset |
256 |
|
|
Patrol |
8 patrols, up to 32 presets per patrol |
|
|
Park Action |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan |
|
|
Scheduled Task |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan |
|
|
RS-485 communication diagnosis |
Support |
|
|
Infrared |
||
|
IR Distance |
Up to 150m |
|
|
IR Intensity |
Automatically adjusted, depending on the zoom ratio |
|
|
Alarm |
||
|
Turbo HD Output |
1 turbo HD720P/1080P output, BNC |
|
|
CVBS Output |
1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC |
|
|
Alarm Input |
2 |
|
|
Alarm Output |
1 |
|
|
RS-485 Interface |
Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
|
|
UTC function |
HIKVISION_C |
|
|
General |
|
|
Menu Language |
English |
|
Power |
24VAC, Max. 24W (Heater On), Max. 18W(Heater Off) |
|
Working Temperature / Humidity |
-30 °C-65°C(-22°F-149°F) 90% or less |
|
Protection Level |
IP66 standard TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
Mounting |
Various mounting modes optional |
|
Dimensions |
Φ185×330mm (Φ7.28”×12.99”) |
|
Weight (approx.) |
4Kg (8.81Ibs) |
|
Mount Option (only suitable for outdoor dome) |
Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ |
Dome Camera
Accessories
- DS-1602ZJ DS-1602ZJ-Conner DS-1602ZJ-Pole DS-1602ZJ-Box
- Wall Mount Conner Mount Pole Mount Box Mount
- DS-1663ZJ DS-1661ZJ DS-1662ZJ DS-1619ZJ
- Celling mount Pendant mount Pendant mount Swan-neck Mount
- DS-1005KI
- USB Joy-stick
