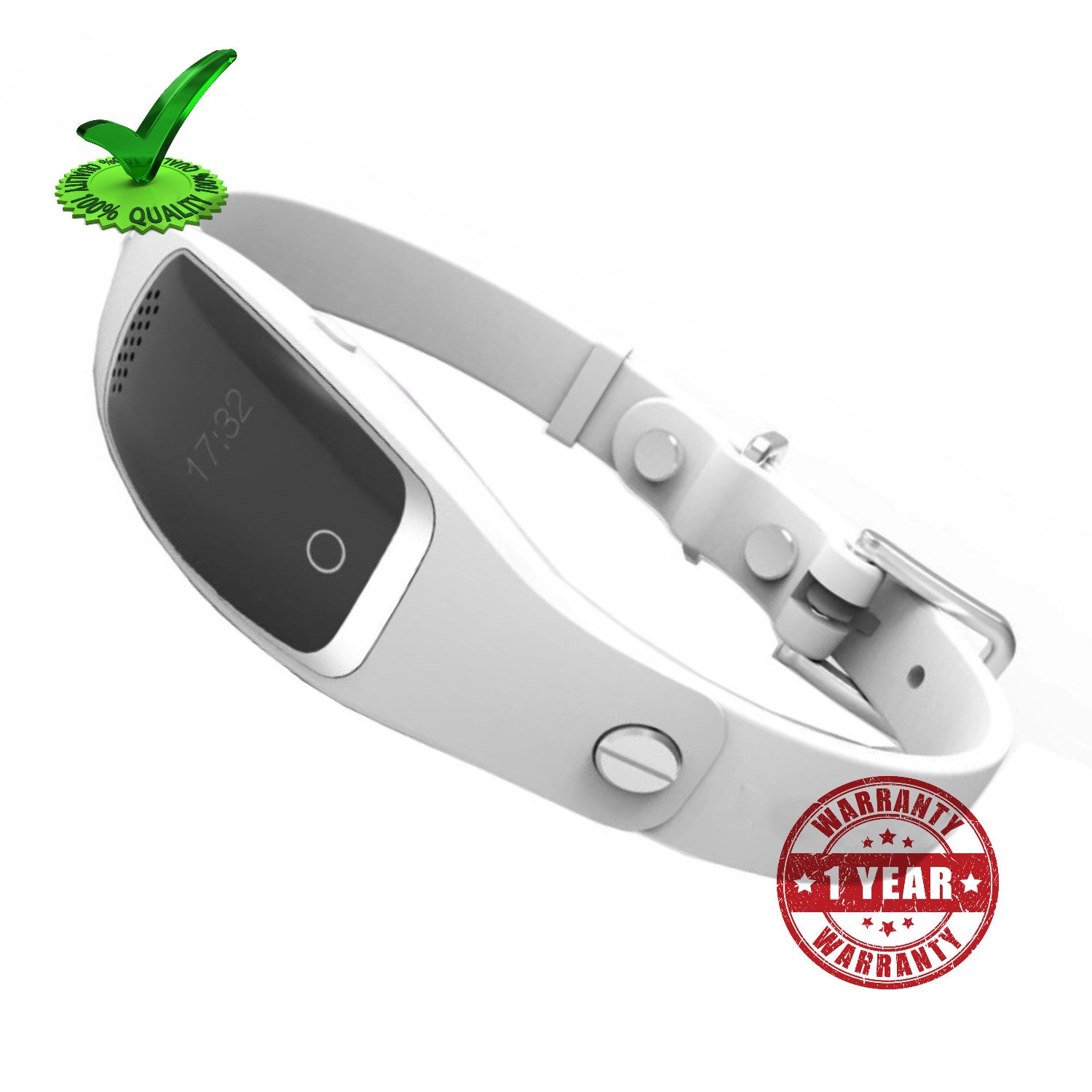

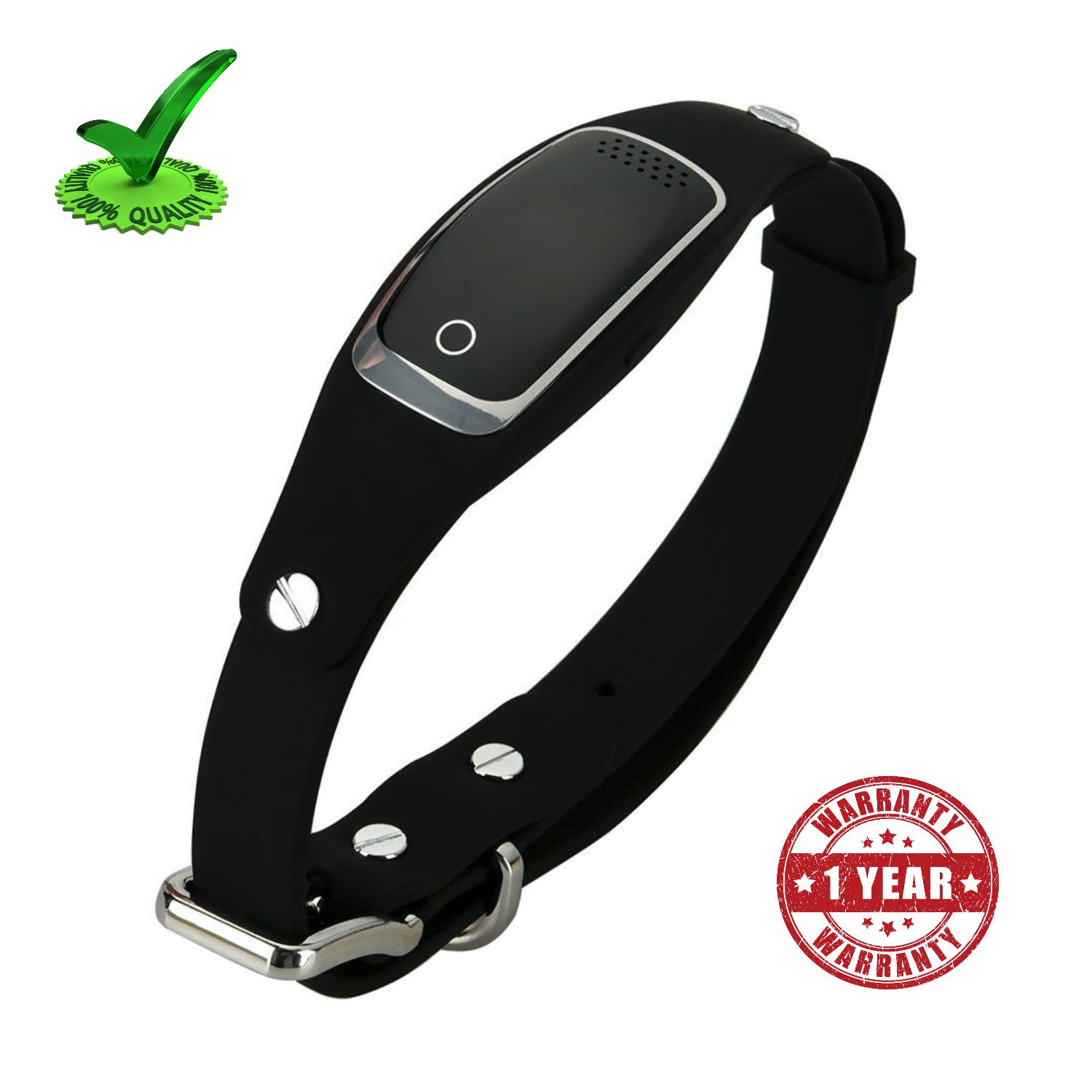

GPS Pet Tracker Collar Belt

SPECIFICATIONS

• Product type : Smart pet gps Collar
• Main features : GPS+WIFI+LBS multi-mode, precise positioning,voice, intercome, intelligent, dormancy,real time tracking

1.Structure parts

• Color : white, black, red
• Button : 1 button( Poweror off button)
• Screen : 0.66 inch OLED
• gps antenna : High sensitive ceramics active antenna
• Battery : 500mAh
• SIM card : 1 pc
• G-sensor : supported
• I/O port  : Magnetic suction charging

2. Hardware parts

• Chip : MTK MT6261
• GPS chip : MTK3337
• GPRS : Class12
• GPS singal : L1,1575.42MHz C/A code
• GPS channels : 20 channels
• GPS chip receive sensitivity : Tracking sensitivity:- 159dBm,capture sensitivity:- 143dBm
• GPS location accuracy  : 5~15M
• WIFI  location accuracy : 5-30M
• LBS location accuracy : 100-1000M
• Minimum standby current : less than 0.5 mA
• Average standby current : less than 2.5 mA
• Average working current : less than 55mA
• Working temperature : -20~70℃
• Working humidity : 5% to 95% non-congealable
• Test and certification : Can pass CAT, 3C and CE certification
• GPS antenna : Built-in high sensitivity ceramic antenna
• GSM antenna : Built-in four frequency PIFA antenna
• Bluetooth : BT 3.0 (Usually Off)
• G-Sensor : Supported
• Speaker : AAC 1609 speaker (The same supplier with Apple phone)
• MIC : Supported

3. Software parts

• Support operate system : Support 2.3 and above system, IOS5.0 and above
• Support AGPS : Cool start 26 seconds positioning
• Power management : Ultra-low consumption of power managment, intelligent dormancy
• Smart Geo-fence : Can automatic alarm when out of range
• Historicial route : Can check three months' historical route
• Wireless upgrading :  Software remote upgrading, remote debugging maintence, remote settingparameters

Extra Information

• SKU: Gpspet
• Warranty: 1 Year
• Brand: VisionXP
• Technology: Others
• Product Type: GPS Tracker
• PDF: View PDF
