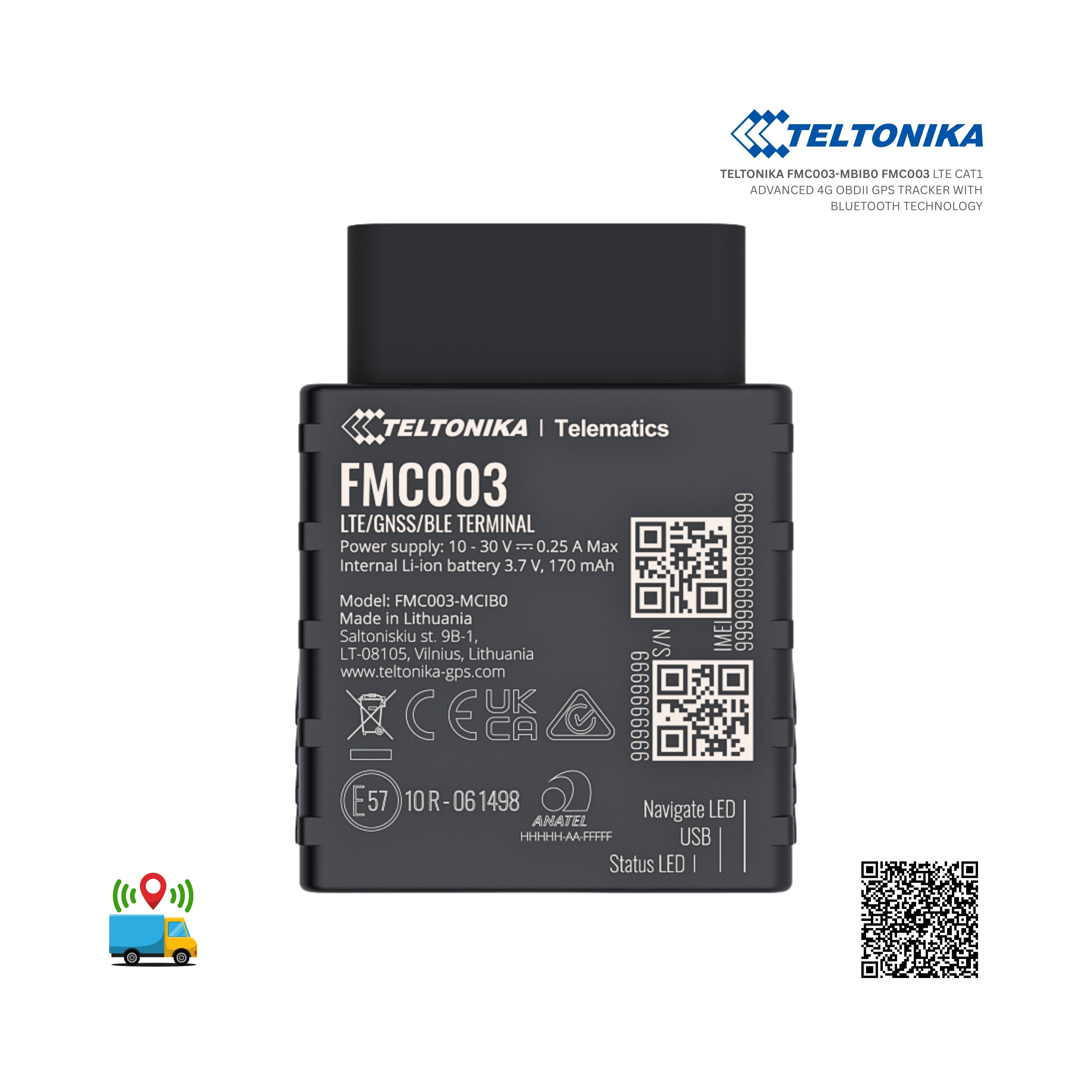

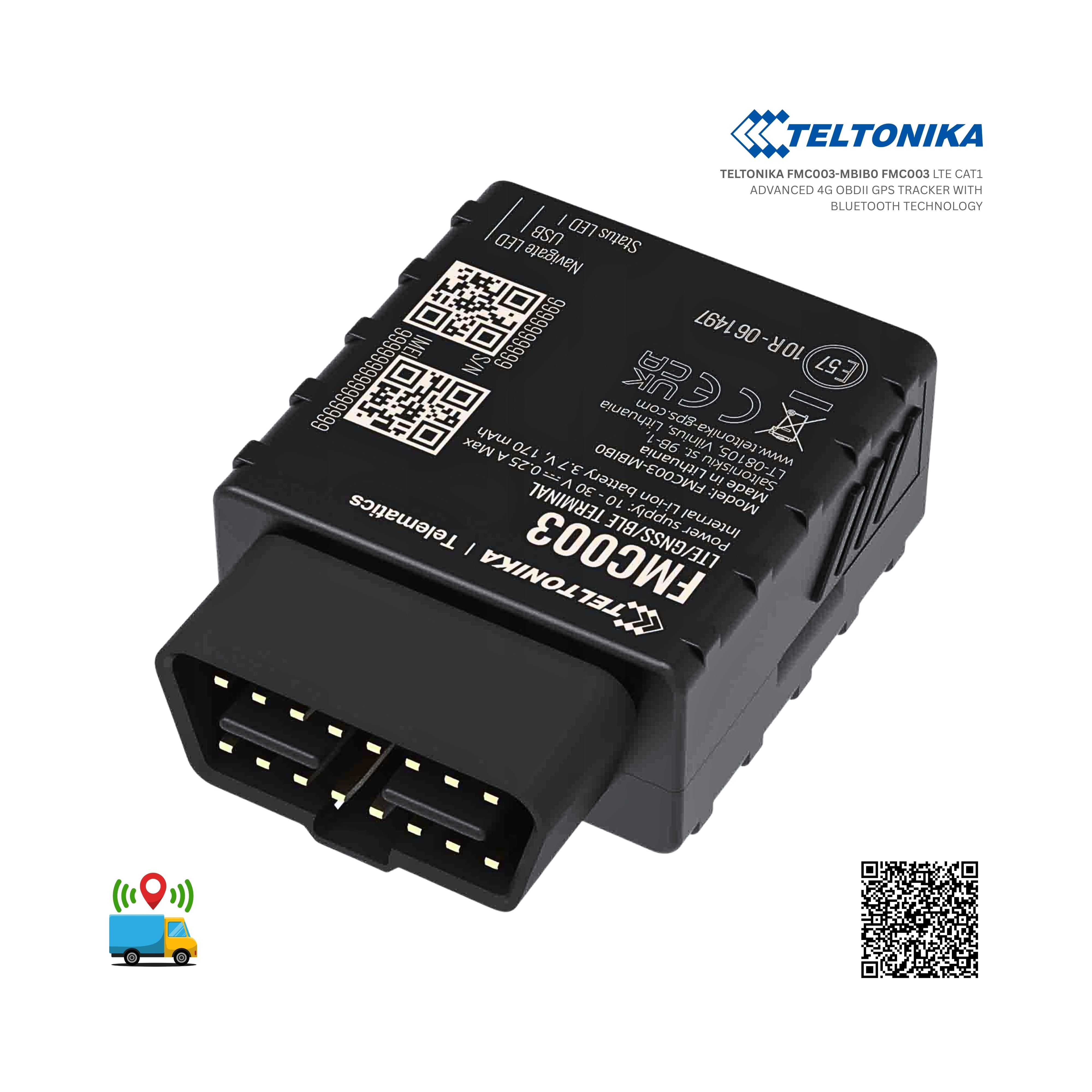

TELTONIKA FMC003 LTE CAT1 ADVANCED 4G OBDII GPS TRACKER WITH BLUETOOTH TECHNOLOGY

Teltonika FMC003 OBDII GPS tracker lets you read Real Odometer and Real Fuel Level data with clarity and confidence.

It comes with a supported vehicles and data list, so you do not need to guess what data can be read from a specific vehicle.

It is a practical choice for fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and others.

Device supports various Bluetooth® LE 4.0 features including sensors, beacons, firmware and configuration update via Bluetooth®.

For users comparing gps solutions, this model focuses on vehicle data access, stable connectivity, and a rich feature set.

It is not made for dhl tracking, but for vehicle monitoring where OBDII data and positioning matter most.

It is also different from amazon tracking because it is designed for connected car and fleet use cases.

Teltonika FMC003 OBDII GPS tracker is compact, plug-in ready, and built for everyday vehicle data access.

It suits users who need reliable positioning, OBDII readings, and practical telematics features in one device.

Device

• Model name : FMC003-MBIB0
• Device category : OBD

Module

• Name : MeiG SLM320-PE2C
• Technology : LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH® LE

GNSS

• GNSS : GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Receiver : 33 channel
• Tracking sensitivity : -165 dBM
• Accuracy : < 3 m
• Hot start : < 1 s
• Warm start : < 25 s
• Cold start : < 35 s

Cellular

• Technology : LTE Cat 1, GSM
• 2G bands : GSM: B2/B3/B5/B8
• 4G bands : B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
• Data transfer : LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL) GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
• Transmit power : Class 4 for GSM850/900: 23±2dBm Class 1 for GSM1800/1900: 20±2dBm Class 3 for LTE-TDD: 23±2.7dBm Class 3 for LTE-FDD: 23±2.7dBm
• Data support : SMS (text/data)

Power

• Input voltage range : 10 - 30 V DC with overvoltage protection
• Back-up battery : 170 mAh Li-Ion battery 3.7 V (0.63 Wh)

Power consumption

• At 12V < 3 mA (Ultra Deep Sleep) At 12V < 5 mA (Deep Sleep) At 12V < 16 mA (Online Deep Sleep) At 12V < 18 mA (GPS Sleep) At 12V < 33 mA (nominal with no load) At 12V < 2A Max. (with full Load / Peak)

Bluetooth® technology

• Specification : 4.0 + LE
• Supported peripherals : Temperature and Humidity sensor, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support

Physical specification

• Dimensions 67,2 x 49,6 x 25 mm (L x W x H)

Interface

• Connection : OBDII Socket
• GNSS antenna : Internal High Gain
• GSM antenna : Internal High Gain
• USB : 2.0 Micro-USB
• LED indication : 2 status LED lights
• SIM : Micro-SIM

Teltonika FMC003 OBDII GPS tracker OBD Interface

• Data : HS CAN, MS CAN, SW CAN, K-line

Data reading

• OEM Fuel level, odometer and up to 32 vehicle onboard parameters, supported OBD protocols: ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) ISO 14229 (UDS) J2819 (VW TP2.0)

Teltonika FMC003 OBDII GPS tracker helps access OEM Fuel level, odometer, and key onboard parameters where supported.

This makes the device useful for monitoring trips, usage patterns, and core vehicle diagnostics with less guesswork.

Operating environment

• Operating temperature (without battery) : -40 °C to +85 °C
• Storage temperature (without battery) : -40 °C to +85 °C
• Operating humidity : 5% to 95% non-condensing
• Ingress Protection Rating : IP41
• Battery charge temperature : +10 °C to +45 °C
• Battery discharge temperature : -20 °C to +60 °C
• Battery storage temperature : -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months

Features

• Sensors : Accelerometer
• Scenarios : Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
• Sleep modes : GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and firmware update : FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® ), FMBT mobile application (Configuration)
• SMS : Configuration, Events, Debug
• GPRS commands : Configuration, Debug
• Time Synchronization : GPS, NITZ, NTP
• Fuel monitoring : OBDII, OEM fuel level
• Ignition detection : Accelerometer, External Power Voltage, Engine RPM

Teltonika FMC003 OBDII GPS tracker supports fleet, rental, leasing, and insurance telematics use cases.

Its compact design, Bluetooth® features, and broad protocol support add flexibility for connected vehicle operations.

Certifications & Approvals

• Regulatory CE RED, E-Mark, RCM, SIRIM, CITC, Anatelk
