Is the Teltonika FMB120 tracker difficult to install, and does it work on all types of vehicles?

The Teltonika FMB120 tracker is designed with user convenience in mind. Its compact build and internal GNSS/GSM antennas make installation quick and hassle-free, without the need for complex wiring or extra accessories. It works perfectly on a wide range of vehicles, from cars and motorcycles to trucks and even refrigerated transport, making it a highly versatile choice for both personal and commercial use.

How reliable is the Teltonika FMB120 tracker when it comes to real-time tracking and data accuracy?

The Teltonika FMB120 tracker provides highly accurate real-time tracking thanks to its integrated GNSS system and backup battery. Even if your vehicle’s main power supply is interrupted, the tracker keeps running and transmitting location data. This helps ensure that you always have access to reliable, up-to-date information about your vehicle’s location, reducing the risk of loss or theft.

What makes the Teltonika FMB120 tracker suitable for refrigerated transport and specialized vehicles?

This tracker supports sensors for temperature monitoring, RFID, and iButton, making it ideal for refrigerated transport and other specialized vehicles. You can remotely monitor and control temperature-sensitive cargo, ensuring that it stays within required limits. The rugged design and Bluetooth® capabilities also allow you to connect to wireless accessories, making the Teltonika FMB120 a practical solution for businesses that require detailed tracking and environmental monitoring.

27%

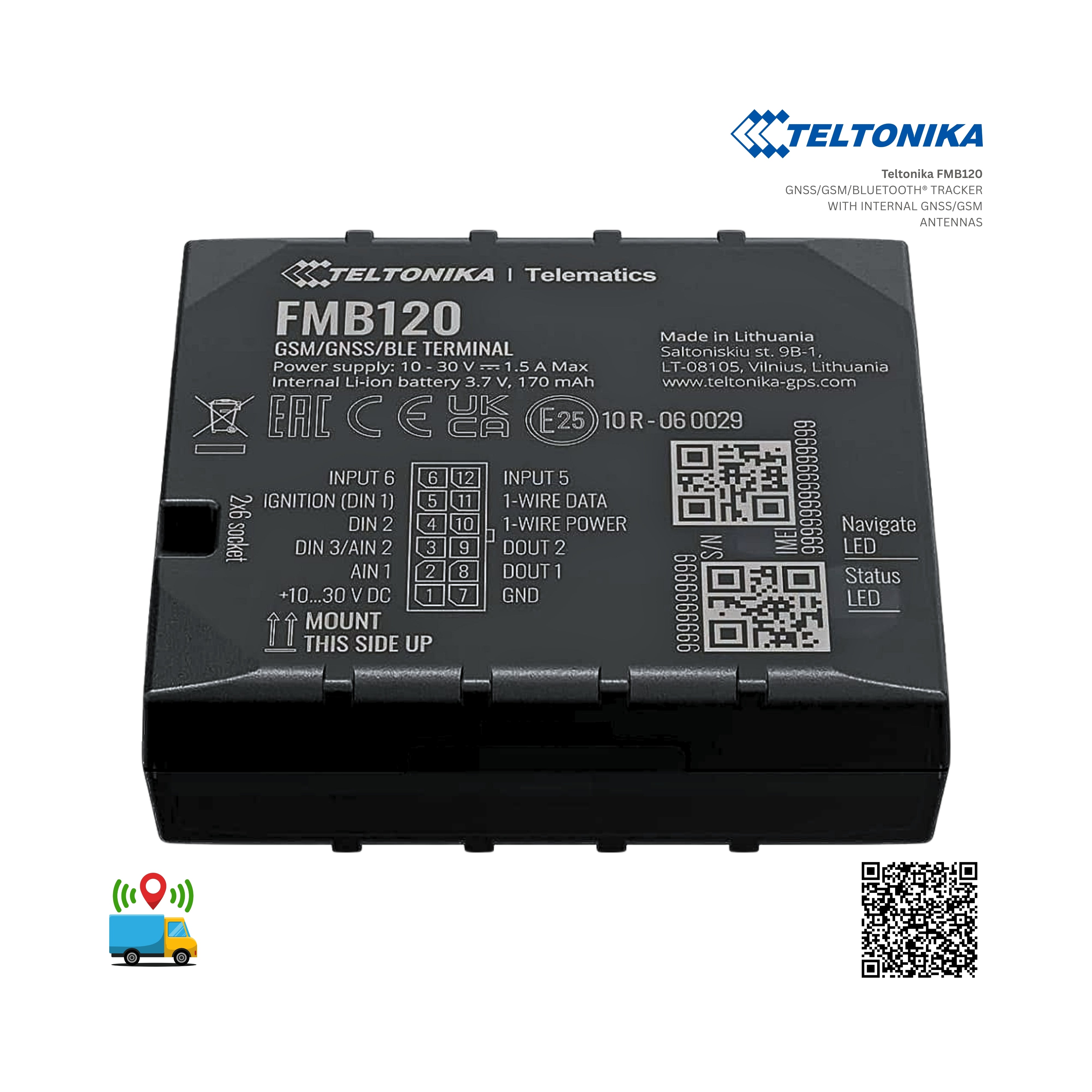

Teltonika FMB120 device with technical specifications on a white background

Wiring scheme diagram for Feltonika FMB120 product on a white background

Teltonika

Teltonika FMB120 GNSS/GSM/BLUETOOTH® TRACKER WITH INTERNAL GNSS/GSM ANTENNAS

Product SKU: FMB120

Available:

Only 2 items in stock

2 items in stock

In stock

Pre-order

Out of stock

Teltonika FMB120 is ADVANCED tracker with internal GNSS, GSM antennas, Bluetooth connectivity and backup battery. FMB120 is designed for light vehicles tracking but is also suitable for advanced applications like logistics, delivery services, utility transport and more. It is excellent for refrigerated transport, because it has extended input/output set and 1-wire interface for temperature monitoring. With Teltonika CAN adapters, FMB120 can be even used in agriculture or construction & mining. Digital Input/Output for remote monitoring and control | Allows device to work without external power source | 1-Wire® interface to monitor temperature data and RFID/iButton tags | Bluetooth for external devices and Low Energy sensors

Rs. 10,999.00

~~Rs. 14,999.00~~

Want it delivered by

Refund policy

we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...

Shipping Info

We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...

Description
Reviews

The Teltonika FMB120 tracker is an advanced GNSS/GSM/Bluetooth® device with internal antennas and backup battery for reliable vehicle tracking.

Module

Name : Teltonika TM2500
Technology : GSM/GPRS/GNSS/BLUETOOTH® LE

GNSS

GNSS : GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver : 33 channel
Tracking sensitivity : -165 dBM
Accuracy : < 3 m
Hot start : < 1 s
Warm start : < 25 s
Cold start : < 35 s

The Teltonika FMB120 tracker is suitable for light vehicles and advanced use in logistics, delivery services, and utility transport.

Cellular

Technology : GSM
2G bands : Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer : GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support : SMS (text/data)

Power

Input voltage range : 10 - 30 V DC with overvoltage protection
Back-up battery : 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Power consumption : At 12V < 6 mA (Ultra Deep Sleep) , At 12V < 8 mA (Deep Sleep) , At 12V < 11 mA (Online Sleep) , At 12V < 20 mA (GPS Sleep) , At 12V < 35 mA (nominal)

For refrigerated transport, the Teltonika FMB120 tracker supports temperature monitoring through its extended input/output set and 1-Wire interface.

Bluetooth® technology

Specification : 4.0 + LE
Supported peripherals : Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support

Physical specification

Dimensions : 65 x 56.6 x 18.9 mm (L x W x H)
Weight : 55 g

Interface

Digital Inputs : 3
Digital Outputs : 2
Analog Inputs : 2
CAN Adapter inputs : 1
1-Wire : 1
GNSS antenna : Internal High Gain
Cellular antenna : Internal High Gain
USB : 2.0 Micro-USB
LED indication : 2 status LED lights
SIM : Micro-SIM + eSIM
Memory : 128MB internal flash memory

Operating environment

Operating temperature (without battery) : -40 °C to +85 °C
Storage temperature (without battery) : -40 °C to +85 °C
Operating humidity : 5% to 95% non-condensing
Ingress Protection Rating : IP41
Battery charge temperature : -0 °C to +45 °C
Battery discharge temperature : -20 °C to +60 °C
Battery storage temperature : -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months

Features of the Teltonika FMB120 tracker

Sensors : Accelerometer
Scenarios : Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes : GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update : FOTA Web, FOTA, Teltonika Configurator (USB, Bluetoot® wireless technology), FMBT mobile application (Configuration)
SMS : Configuration, Events, DOUT control, Debug
GPRS commands : Configuration, DOUT control, Debug
Time Synchronization : GPS, NITZ, NTP
Fuel monitoring : LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection : Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)

This product page focuses on device details only. For order updates, buyers may separately use dtdc tracking after dispatch.

Courier follow-up may also depend on service choice, such as speed post tracking for applicable shipments.

Some customers may also check bluedart tracking when that carrier is used for delivery.

Certification & Approvals

Regulatory CE/RED, E-Mark, EAC, RoHS, REACH, ICASA, SDPPI, IP Rating, SIRIM QAS
