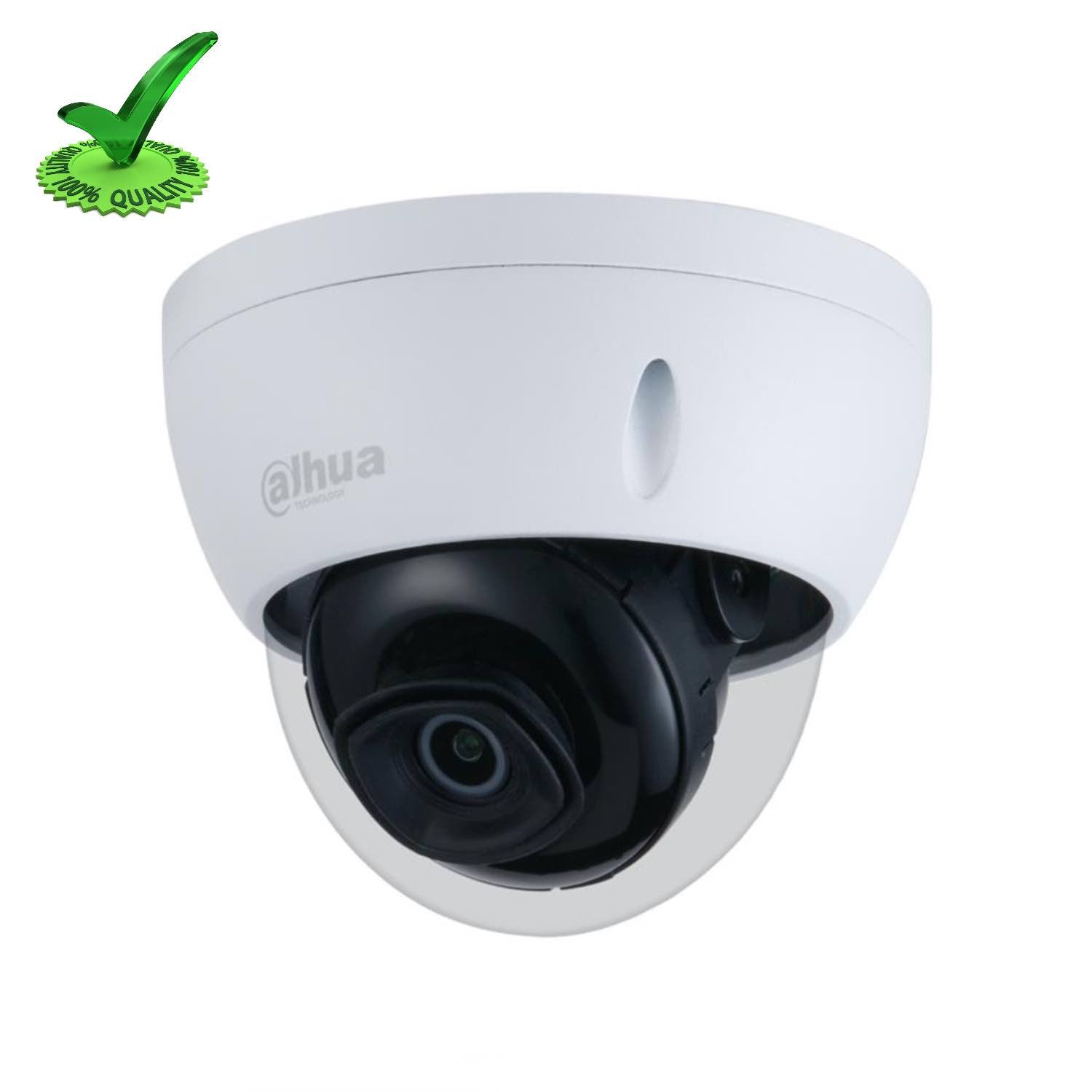

Dahua DH-IPC-HDBW2230EP-S-S2 2MP IP Network Dome Camera

System Overview

• With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry Series camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.

Functions

Smart (H.265+&H.264+)

• With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Motion Detection

• When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records.

Smart IR

• Dahua Smart IR technology can display image in the environment of low illuminance or completely dark environment. According to the distance of the targets, the camera adjusts IR LEDs intensity automatically to display the details of the moving target.

Image Flip

• For narrow and long scenes, Dahua image flip technology flips the image by 90°/270° to realize better surveillance in rotation mode.

Protection (IP67, IK10, wide voltage)

• IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. IK10:The enclosure can stand the punch more than 5 times from a 5kg hammer falling from a height of 40m. (Impact energy is 20j).
• Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Technical Specification

Camera

• Image Sensor : 1/2.7" 2Megapixel progressive CMOS
• Effective Pixels : 1920 (H) × 1080 (V)
• ROM : 128 MB
• RAM : 128 MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100000 s
• Min. Illumination : 0.005 Lux @F1.6
• IR Distance : 30 m (98.43 ft)
• IR On/Off Control : Auto/Manual
• IR LEDs Number : 3
• Pan/Tilt/Rotation Range : Horizontal: 0°–355° Vertical: 0°–65° Rotation: 0°–355°

Lens

• Lens Type : Fixed-Focal
• Mount Type : M12
• Focal Length : 2.8 mm 3.6 mm
• Max. Aperture : F1.7
• Field of View : Pan: 106°–33° Tilt: 56°–19° Diagonal: 127°–38°"
• Iris Type : Fixed Aperture
• Close Focus Distance : 2.8 mm: 0.6 m (1.97 ft) 3.6 mm: 1.1 m (3.61 ft)

Smart Event

• General IVS Analytics : Tripwire, Intrusion

Video

• Video Compression : H.265; H.264; H.264H; H.264B; MJPEG
• Smart Codec : Yes
• Video Frame Rate : Main Stream; 1920 × 1080 (1 fps–25/30 fps) Sub stream; 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)
• Stream Capability : 2 streams
• Resolution : 1080p (1920 × 1080); 1.3m (1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640× 480); CIF (352 × 288/352 × 240)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps
• Day/Night : Auto(ICR)/Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : DWDR
• White Balance : Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control : Auto/Manual
• Noise Reduction : 3D DNR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Region of Interest(RoI) : Yes (4 areas)
• Smart IR : Yes
• Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 1080p resolution.)
• Mirror : Yes
• Privacy Masking : 4 areas

Network

• Network : RJ-45 (10/100 Base-T)
• Protocol : IPv4; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast
• Interoperability : ONVIF (Profile S); CGI; P2P; Genetec
• User/Host : 20
• Edge Storage : Dahua Cloud; FTP; Micro SD card (support max. 256 GB)
• Browser : IE Chrome Firefox
• Management Software : Smart PSS; DSS; DMSS
• Mobile Phone : IOS; Android

Certifications

• Certifications : CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Power

• Power Supply : 12V DC/PoE (802.3af)
• Power Consumption : < 5W

Environment

• Operating Conditions : -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH
• Storage Temperature : -40°C to +60°C (-40°F to +140°F)
• Ingress Protection : IP67; IK10

Structure

• Casing : Metal
• Dimensions : 81 mm × Φ109.9 mm (3.19" × Φ4.33")
• Net Weight : 0.350 kg (0.77 lb)
• Gross Weight : 0.481 kg (1.06 lb)

Extra Information

• SKU: DHIPCHDBW2230EPSS2
• Warranty: 2 Years
• Brand: Dahua
• Megapixel: 2
• Technology: IP
• Camera Type: DOM
• Product Type: Camera
