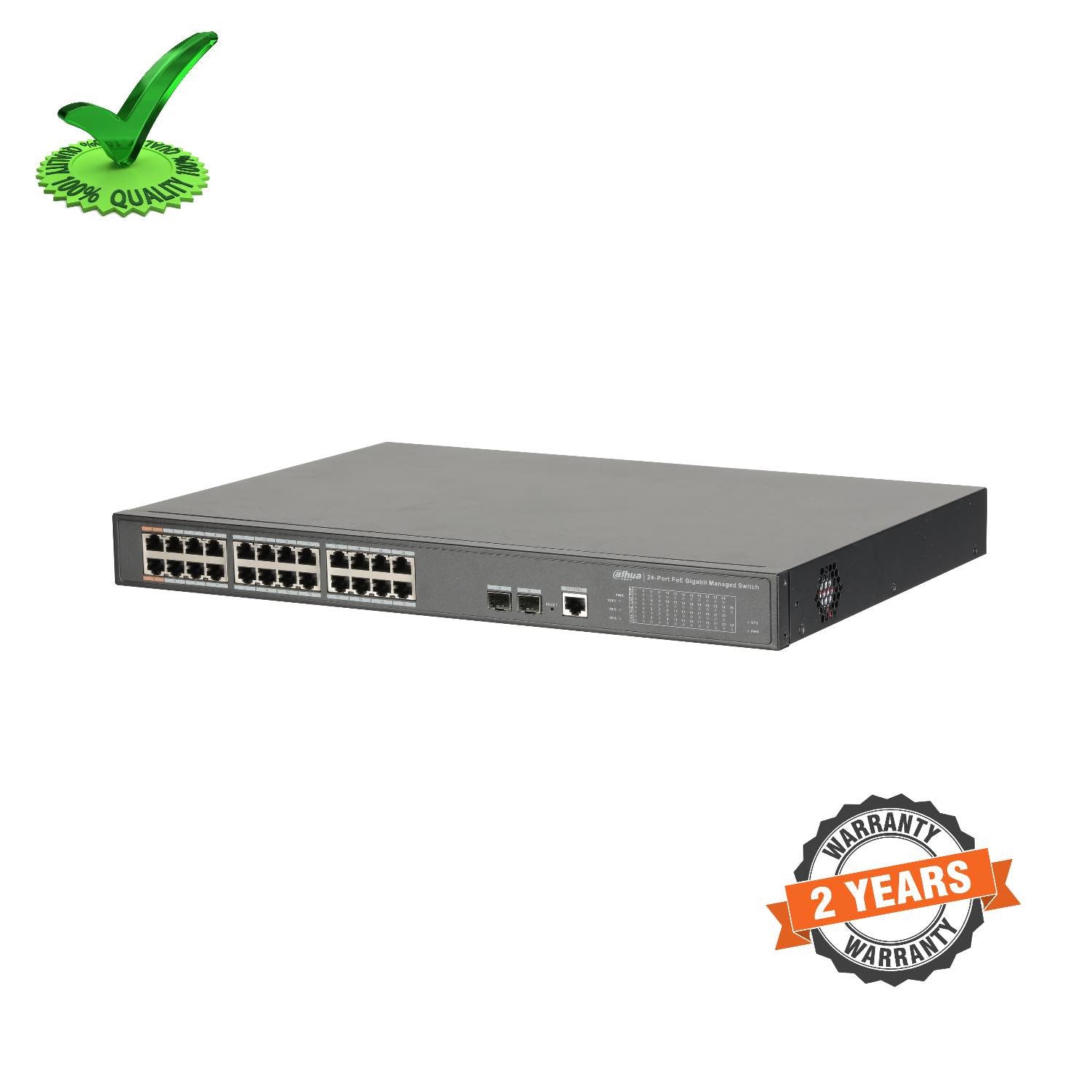

Dahua DH-PFS4226-24GT-240 24-Port PoE Gigabit Managed Switch
Dahua DH-PFS4226-24GT-240 24-Port PoE Gigabit Managed Switch
- Layer 2 network management PoE switch
- Support IEEE802.3af, IEEE802.3at standard
- Support Hi-PoE 60W
- Network Redundancy: STP/RSTP/MSTP
- Support IPv4/IPv6, and DHCP
- Network management based on SNMP
- Configuration: Web, Telnet, CLI Command
- QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
- Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
- Large data cache(4M), real-time transmission
- MAC auto study and aging, MAC address list capacity is 8K
- EMC high protection design
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Dahua DH-PFS4226-24GT-240 24-Port PoE Gigabit Managed Switch
Technical Specification
Model DH-PFS4226-24GT-240
- Ethernet Port : 24*10/100/1000 Base-T (PoE power supply), 2*100/1000 Base-X
- RS232 : Serial Console 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
- PoE Power Consumption : Port1 and port 2 support Hi-PoE 60W, Each power ≤30W, Total≤240W
- PoE Protocol : IEEE802.3af, IEEE802.3at, Hi-PoE
- Switching Capacity : 52Gbps
- Packet Forwarding Rate : 38.688Mpps
- Packet Buffer Memory : 4Mb
- Application Humidity : 5%~95%
- Power : AC100-240V, 50/60Hz
- Lightning Protection : Common Mode 2KV, Differential Mode 1KV
- Working Temperature : -10°C~55°C
- Dimension(W×D×H) : 440mmx300mmx44mm
Accessories
Model
- PFT3950 : 1.25G 850nm,500m,LC, Multi-mode
- PFT3960 : 1.25G 1310/1550nm,20km,LC, Single-mode
- PFT3970 : 1.25G 1550/1310nm,20km,LC, Single-mode
Service Characteristics
- System : Username / password: admin/admin, IP Address :192.168.1.110/24
- PoE Budget : Total≤240W
- MAC Table : 8K
- NTP : Support
- DHCP : Support DHCP client/server, Support DHCP snooping
- VLAN : 802.1Q Standard VLAN
- Port Aggregation : Manual aggregation/LACP
- Mirroring : Many-to-one port mirroring
- Flow Control : Half-duplex based on back pressure type control;Full duplex based on PAUSE frame
- Multicast : IGMP Snooping v1/v2/v3
- Security Features : Users management, SSH, HTTPS, SNMP v1/v2/v3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection
- Spanning tree : Support STP/RSTP/MSTP
- LLDP : Support
- MAC Table : Support MAC address table configuration
- QoS : Support QoS base on CoS/DPL/PCP/DEI, Each port support 8 output queue, Support port shaping, Support port tag remarking, Support QoS base on DSCP
- System Maintenance : Support the configuration file upload/download, Support the updated packet upload, System log
- Network Management : WEB(http protocol), serial, SNMP
Extra Information
- SKU: DHPFS422624GT240
- Warranty: 2 Years
- Brand: Dahua
- Technology: IP
- Product Type: POE
- PDF: View PDF
