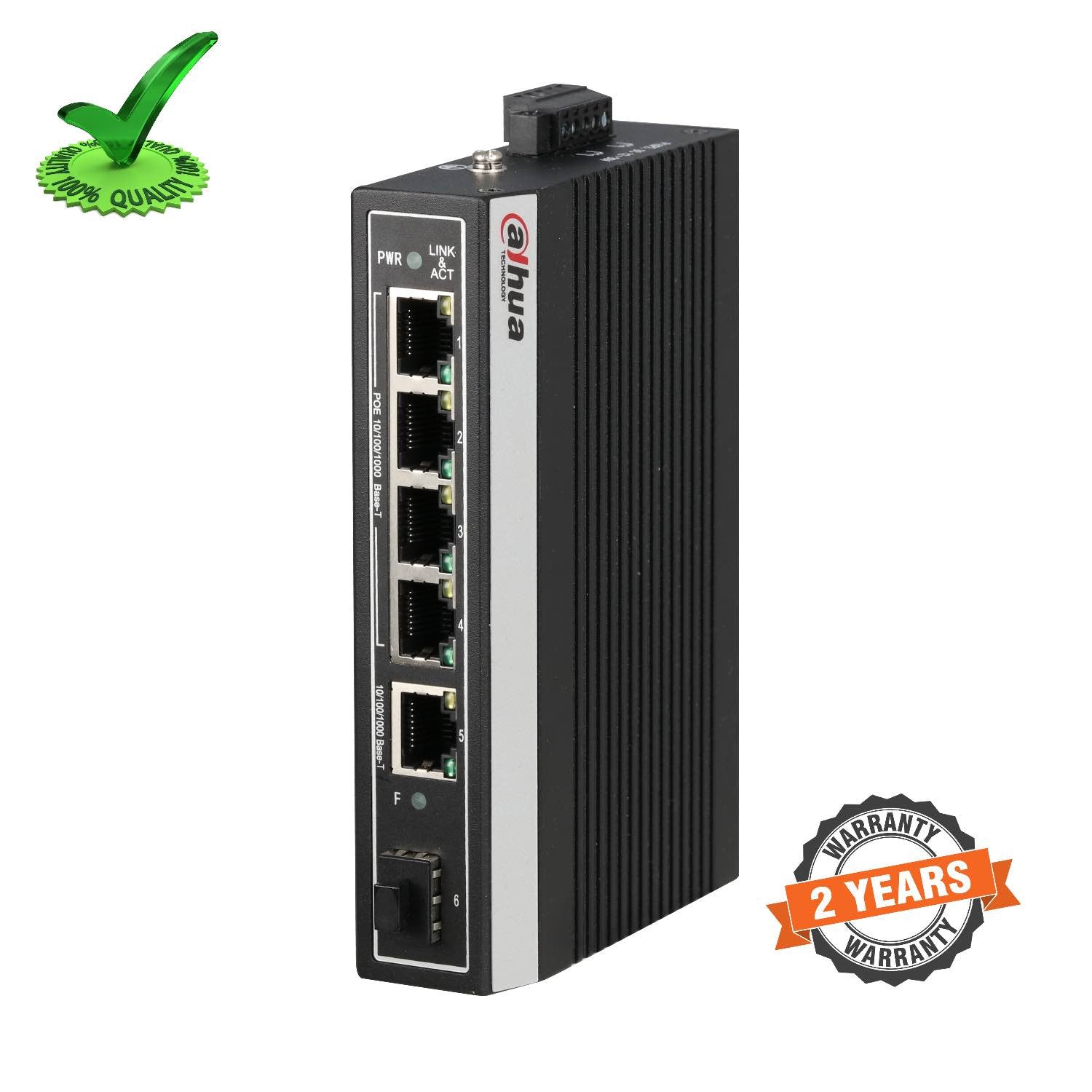

Dahua DH-PFS3106-4GT-DP 4-port Industrial Gigabit PoE Switch
Dahua DH-PFS3106-4GT-DP 4-port Industrial Gigabit PoE Switch
- High EMC and Lightning Protection
- Non-blocking Video Transmission
- 4K MAC Address List Capacity
- Supports the IEEE802.3af and the IEEE802.3at Standards
- Level 4 Lightning Protection
- Sealed Metal Enclosure, Dustproof Design
- IP40 Ingress Protection
- Designed for Extreme Temperature Environments
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Dahua DH-PFS3106-4GT-DP 4-port Industrial Gigabit PoE Switch
System Overview
- The DH-PFS3106-4GT-DP is a 4-port industrial Gigabit PoE Ethernet switch, which supports the IEEE802.3 af/at standards. The switch is enclosed in a solid metal housing and is designed for extreme temperature environments The unit offers over-current, overvoltage, EMC, and RJ45 protection that resists interference from static and lightning.
Technical Specification
- Ethernet Ports : One (1) 10/100/1000 Base-T Port, One (1) 1000 Base-X Port, Four (4) 10/100 Base-T Ports (PoE Power Supply)
- PoE Features : Protocol: IEEE802.3af, IEEE802.3at, Consumption: Up to 30 W per Port, Total PoE Budget¹: 100 W
- Switching Capacity : 12 Gbps
- Packet Forwarding Rate : 8.93 Mpps
- Packet Buffer Memory : 1 MB
- MAC Table Size : 4K
- Power Requirements : 45 VDC to 57 VDC
- Operating Temperature : -30 °C to 85 °C (-22 °F to 185 °F)
- Application Humidity : 5% to 95%
- Lightning Protection : IEC61000-4-2: ±8 KV (contact), ±15 KV (air), IEC61000-4-4 (EFT): Power Port: ±4 KV; Data Port: ±2 KV, IEC61000-4-5 (Surge): Power Port: ±2 KV/DM, ±4 KV/CM
- Dimensions : (WxDxH)135.0mmx90.0mmx30.0mm(5.31in.x3.54in.x1.18in.)
- Weight : 0.50 kg (1.10 lb)
- Ingress Protection : IP40
- Lightning Protection : Level 4
Certifications
- Safety : EN 60950-1:2006+A11:2009+A1:2010+A12:2001+A2:2013, UL 60950-1 + CAN/CSA C22.2 No. 60950-1-07
- Electromagnetic Compatibility(EMC) : FCC CFR 47 Part 15 subpart B, EN 50130-4:2011, EN 55022:2010/AC:2011, EN 55024:2010, EN 55032:2012:+AC:2013, EN 6100-3-2:2014, EN 6100-3-3:2013, IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2005, IEC 61000-4-5:2005, IEC 61000-4-6-2013, IEC 61000-4-8:2009, IEC 61000-4-11:2004
Accessories
- PFT3950 : 1.25 G, 850 nm, 500 m, LC, Multi-mode
- PFT3960 : 1.25 G, 1310/1550 nm, 20 km, LC, Single-mode
- PFT3970 : 1.25 G, 1550/1310 nm, 20 km, LC, Single-mode
Extra Information
- SKU: DHPFS31064GTDP
- Warranty: 2 Years
- Brand: Dahua
- Technology: IP
- Product Type: POE
- PDF: View PDF
