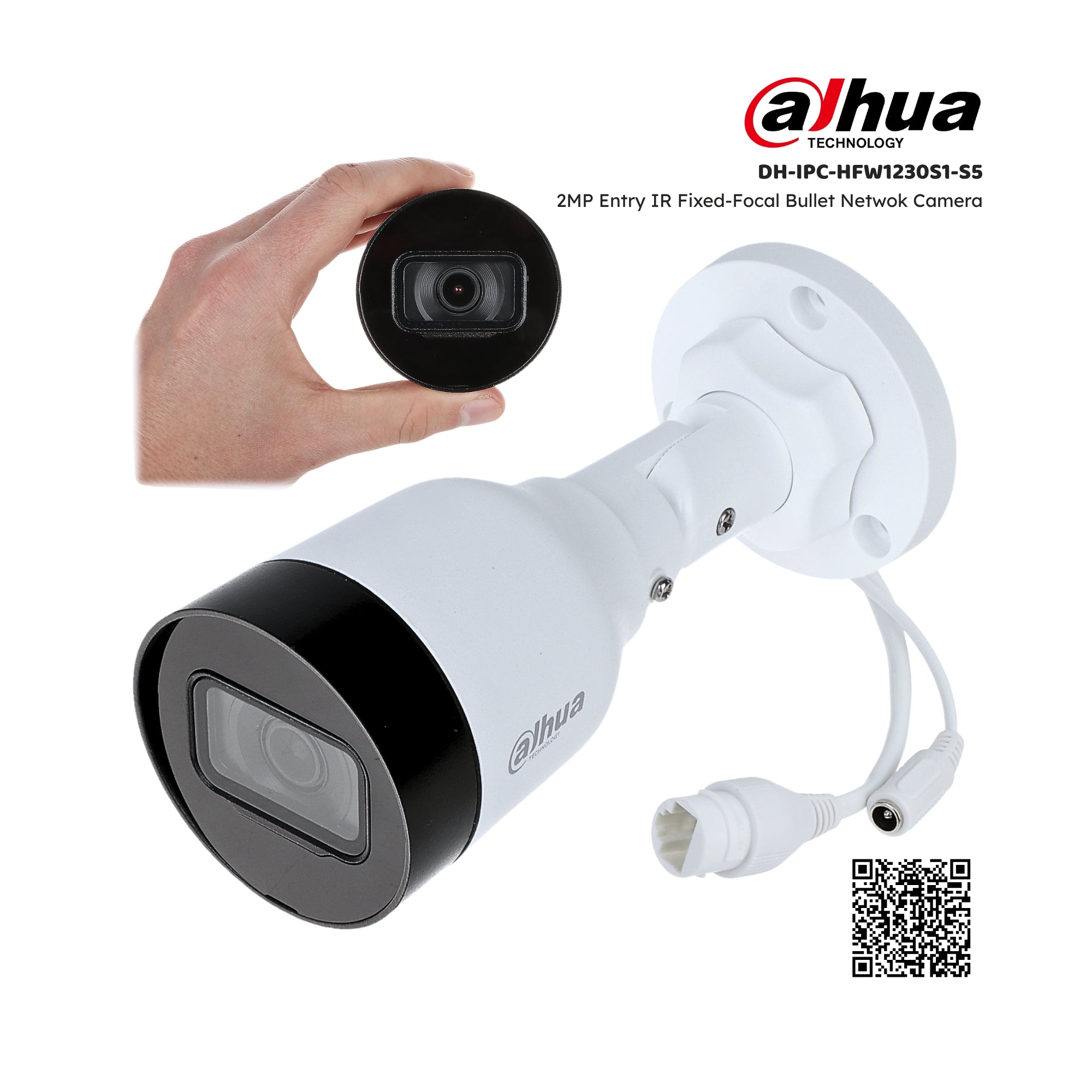

Dahua DH-IPC-HFW1230S1-S5 2MP Entry IR Fixed-Focal Bullet Netwok Camera
Key Features
- 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
- Outputs max. 2MP (1920 × 1080) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in efficient IR illuminator, and the max. illumination distance is 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
- 12V DC/PoE power supply
- IP67 protection
Video
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Series Overview
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/ residences, small-sized retail stores, and other small and medium-sized enterprises.
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion Detection (General) technology triggers alarm or records.
Smart Illumination
Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment. According to the distance of the targets, the camera adjusts Illuminations intensity automatically to display the details of the moving target.
Image Flip
For narrow and long scenes, Dahua image flip technology flips the image by 90°/180°/270° to realize better surveillance in rotation mode.
Cyber Security
Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device. With UL CAP Certification, TÜV Rheinland Protected Privacy IoT Product Certification, and ETSI EN 303645 Certification, Dahua network camera better meets the demands of cyber security and privacy protection.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Technical Specification
|
Day/Night |
Auto (ICR)/Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
DWDR |
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Region of Interest (RoI) |
Yes (4 areas) |
|
Smart Illumination |
Yes |
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
|
Mirror |
Yes |
|
Privacy Masking |
4 areas |
|
Image Sensor |
1/2.8" CMOS |
|
Max. Resolution |
1920 (H) × 1080 (V) |
|
ROM |
16 MB |
|
RAM |
64 MB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
|
Min. Illumination |
0.01 Lux @F2.0 |
|
S/N Ratio |
>56 dB |
|
Illumination Distance |
30 m (98.4 ft) |
|
Illuminator On/Off Control |
Auto/Manual |
|
Illuminator Number |
1 (IR LED) |
|
Pan/Tilt/Rotation Range |
Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360° |
Camera
Lens
|
Lens Type |
Fixed-focal |
||||
|
Lens Mount |
M12 |
||||
|
Focal Length |
2.8 mm; 3.6 mm |
||||
|
Max. Aperture |
2.8 mm: F2.0 3.6 mm: F2.0 |
||||
|
Field of View |
2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120° 3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100° |
||||
|
Iris Control |
Fixed |
||||
|
Close Focus Distance |
2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 0.8 m (2.6 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.8 mm |
38.6 m (126.6 ft) |
15.4 m (50.5 ft) |
7.7 m ( 25.3 ft) |
3.9 m (12.8 ft) |
|
|
3.6 mm |
49.7 m (163.1 ft) |
19.9 m (65.3 ft) |
9.9 m (32.5 ft) |
5.0 m (16.4 ft) |
|
|
Video Compression |
H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
|
Smart Codec |
Smart H.265+/Smart H.264+ |
|
Video Frame Rate |
Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
|
Stream Capability |
2 streams |
|
Resolution |
1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|
Bit Rate Control |
CBR/VBR |
|
Video Bit Rate |
H.264: 32 kbps–6144 kbps H.265: 12 kbps–6400 kbps |
Video
Alarm
|
Alarm Event |
Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception |
Network
|
Network |
RJ-45 (10/100 Base-T) |
|
SDK and API |
Yes |
|
Cyber Security |
Video encryption;configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast |
|
Interoperability |
ONVIF (Profile S/Profile T); CGI; P2P; Genetec |
|
User/Host |
6 (Total bandwidth: 36 M) |
|
Storage |
FTP |
|
Browser |
IE Chrome Firefox |
|
Management Software |
Smart PSS; DSS; DMSS |
|
Mobile Client |
IOS; Android |
Certification
|
Certifications |
CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
Power
|
Power Supply |
12V DC/PoE (802.3af) |
|
Power Consumption |
Basic power consumption: 1.4W (12V DC); 2.2W (PoE) Max. power consumption (ICR + H.265+IR intensity): 3.3W (12V DC); 4.3W (PoE) |
Environment
|
Operating Conditions |
-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% |
|
Storage Temperature |
-40°C to +60°C (-40°F to +140°F) |
|
Protection |
IP67 |
