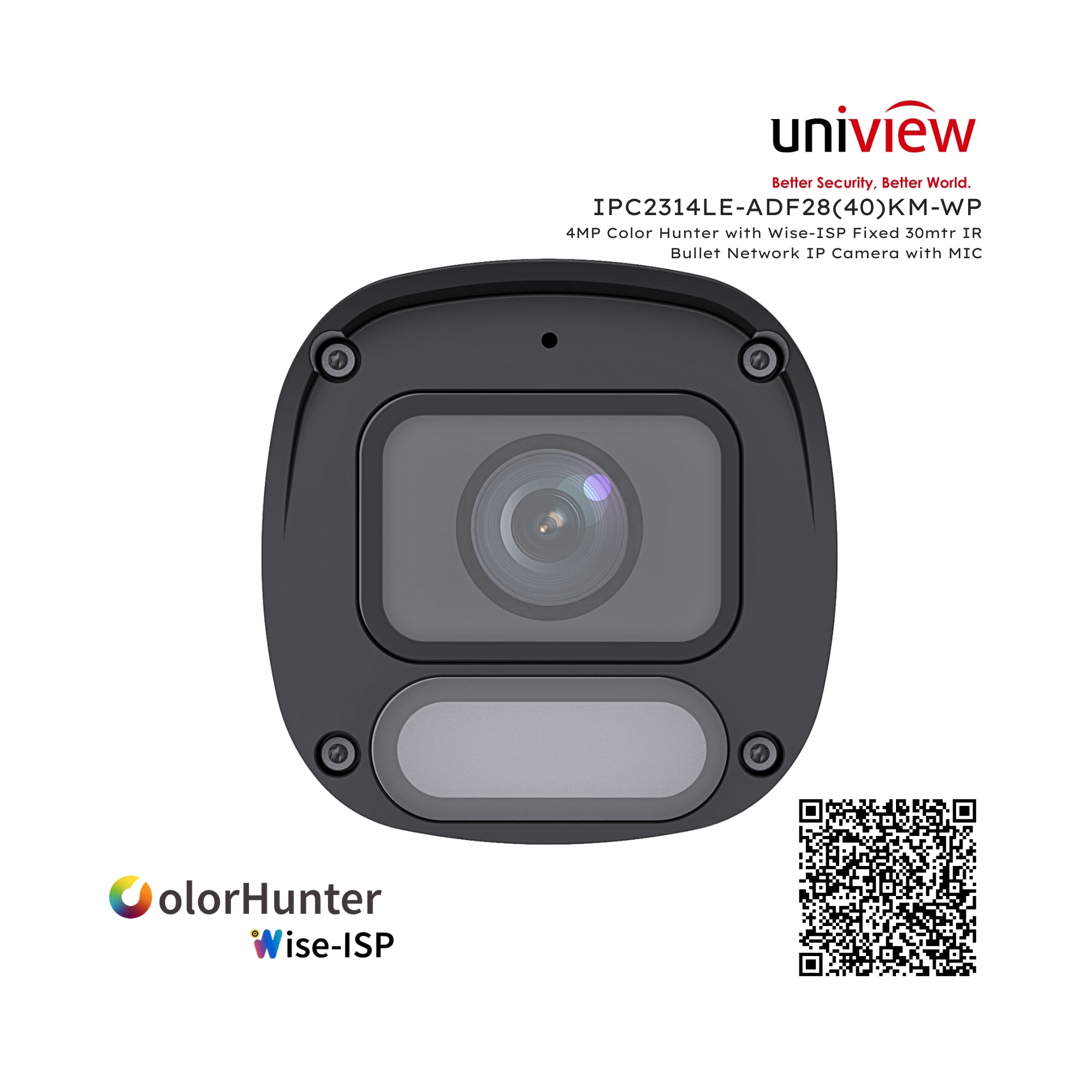

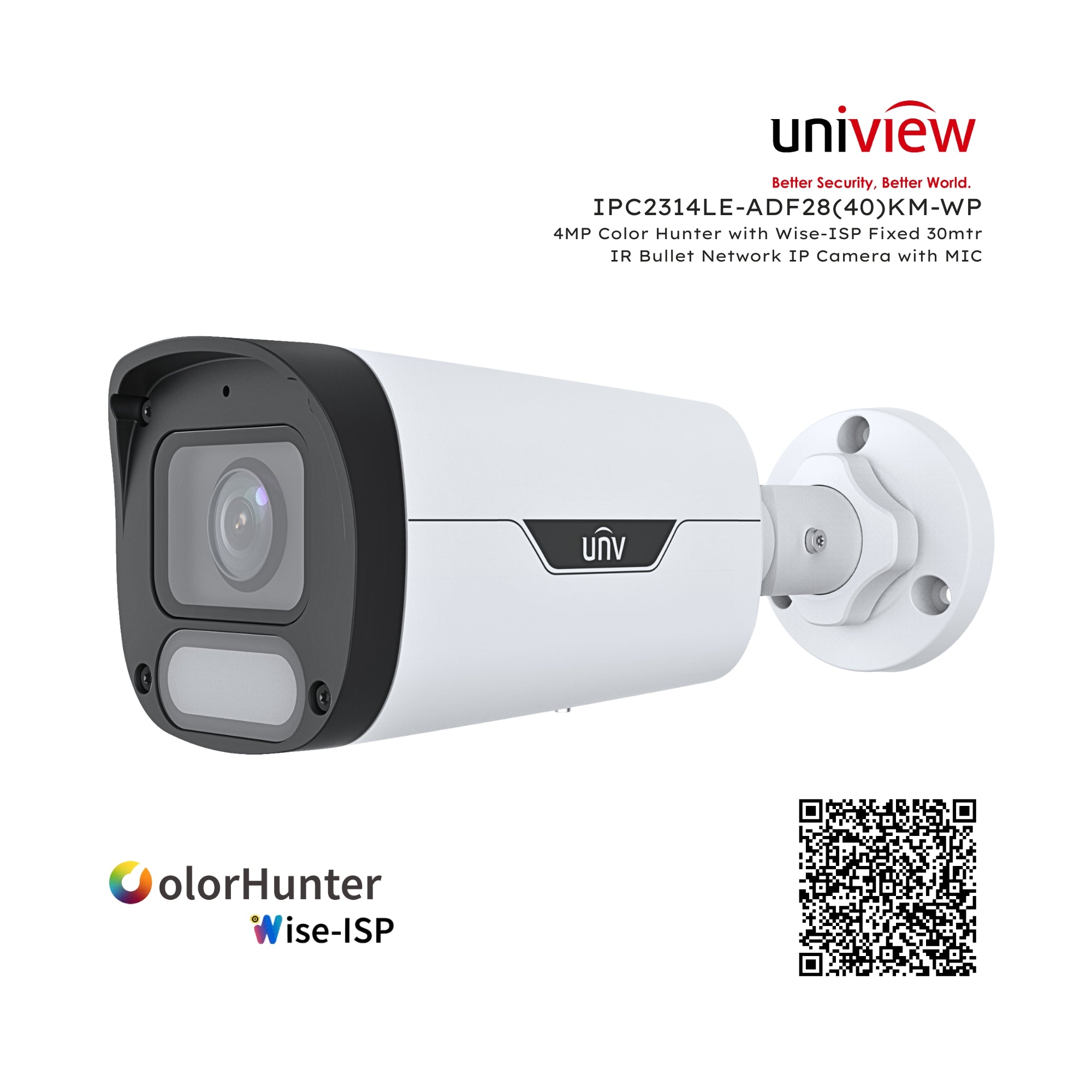

UNV Uniview IPC2314LE-ADF28(40)KM-WP 4MP Color Hunter with Wise-ISP Fixed Lens 30mtr IR Network IP Bullet Camera with MIC

Model

IPC2314LE-ADF28KM-WP

IPC2314LE-ADF40KM-WP

Camera

Max Resolution

4 MP

Sensor

1/1.8" CMOS

Min. Illumination

Color: 0.0003 Lux (F1.0, AGC ON)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

S/N

>52 dB

WDR

120 dB

Lens

Focal Length

2.8 mm

4.0 mm

Iris Type

Fixed

Iris

F1.0

Field of View (H)

124.3°

96.1°

Field of View (V)

64.1°

52.2°

Field of View (D)

135.0°

113.5°

DORI

DORI Distance (Lens)

2.8 mm

4 mm

DORI Distance (Detect)

43.4 m (142.4 ft.)

62.1 m (203.7 ft.)

DORI Distance (Observe)

17.4 m (57.1 ft.)

24.8 m (81.4 ft.)

DORI Distance (Recognize)

8.7 m (28.5 ft.)

12.4 m (40.7 ft.)

DORI Distance (Identify)

4.3 m (14.1 ft.)

6.2 m (20.3 ft.)

Illuminator

Supplemental Light

Warm light

Light On/Off Control

Auto/Manual

Illumination Distance (Warm

Light)

30 m (98.4 ft.)

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 4 MP (2688 × 1520), max. 25 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296),

max. 30 fps; 1080P (1920 × 1080), max. 30 fps;

Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps;

Video Bit Rate

128 Kbps to 6144 Kbps

U-code

Support

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Support

Video Stream

Dual streams


White Balance

Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2

Smart Illumination

Support

Digital Noise Reduction

2D/3D DNR

Flip

Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise

Dewarping

N/A

HLC

Support

BLC

Support

Defog

Digital defog

Intelligent

Smart Intrusion Prevention

(Lite)

Intrusion, crossline detection (both detection are based on human body and vehicle detection)

Events

Basic Detection

Motion detection, Ultra motion detection, Tampering alarm, Audio detection

General Function

Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User

authentication, HTTP authentication

Audio

Audio Compression

G.711U, G.711A

Audio Bitrate

64 Kbps

Two-way Audio

N/A

Suppression

Support

Sampling Rate

8 kHz

Storage

Edge Storage

MicroSD, up to 512 GB

Network Storage

ANR, NAS (NFS)

Network

Protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP,

UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host

Up to 32 users, 2 user levels: administrator and common user

Security

Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest

Authentication for ONVIF

Client

EZStation, APP

Web Browser

Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view:

Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O

N/A

Alarm I/O

N/A

Serial Port

N/A

Built-in Mic

Support

Built-in Speaker

N/A

WIFI

N/A

Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output

N/A

Certification

EMC

CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)

FCC (FCC 47 CFR part15 B)

Safety

CE LVD (EN 62368-1)

UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);

Protection

IP67 (IEC 60529)

General

Power

DC 12 V±25%, PoE (IEEE 802.3af)

Power Consumption

Max. 2.8 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

206 mm × 73 mm × 73 mm (8.1" × 2.9" × 2.9") (L × W × H)

Weight

0.48 kg (1.06 lb.)

Material

Graphene + Metal

Working Environment

-30 to 60 (-22 to 140 ), Humidity: 9Q5% RH (non-condensing)

Storage Environment

-30 to 60 (-22 to 140 ), Humidity: 9Q5% RH (non-condensing)

Surge Protection

4 KV

Reset Button

Support

Web Client Language

13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch,

Czech, Portuguese, Spanish, Spanish (Europe), Italian
