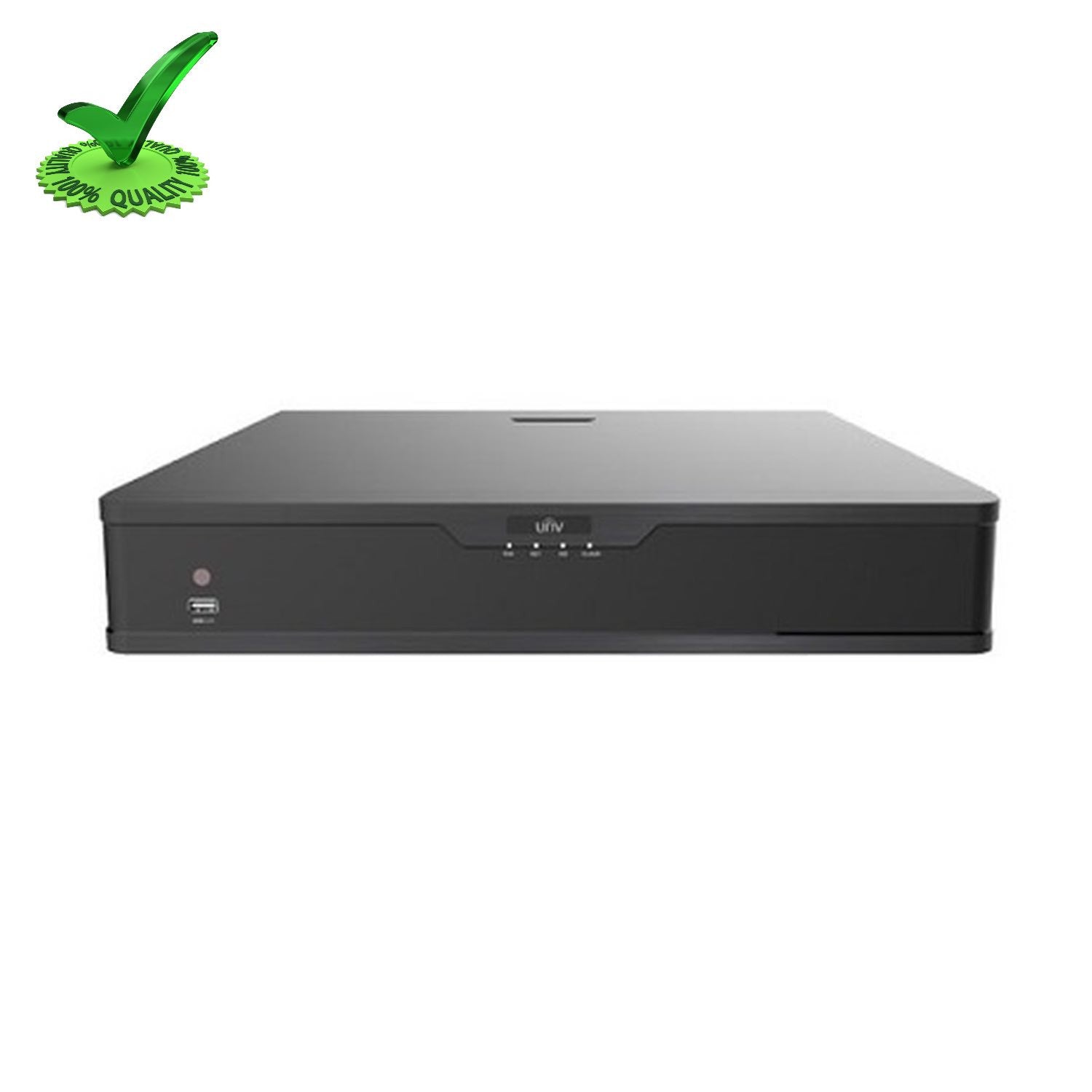

Uniview NVR304-32S-P16 32Ch HD Network Video Recorder
Short Description
- Support Ultra265/H.265/H.264 video formats
- 16/32-channel input
- Plug & Play with 16 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support HDMI and VGA simultaneous output
- Up to 8 Megapixels resolution recording
- 4 SATA HDDs, up to 14TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Specifications
Video/Audio Input
- IP Video Input : 32-ch
- Two-way Audio Input : 1-ch, RCA
Network
- Incoming Bandwidth : 160Mbps
- Outgoing Bandwidth : 64Mbps
- Remote Users : 128
- Protocols : P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
- HDMI/VGA Output : HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60 VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60
- Recording Resolution : 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Audio Output : 1-ch, RCA
- Synchronous Playback : 32-ch
- Corridor Mode Screen : 3/4/5/7/9/10/12/16/32
Decoding
- Decoding format : Ultra265/H.265/H.264
- Live view/Playback : 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Capability : 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1@30
Hard Disk
- SATA : 4 SATA interfaces
- Capacity : Up to 14TB for each disk
External Interface
- Network Interface : 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
- USB Interface : Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
- Serial Interface : 1 x RS485
- Alarm In : 16-ch
- Alarm Out : 4-ch
PoE
- Interface : 16 independent 100Mbps PoE network interfaces
- Max Power : Max 30W for single port Max 240W in total
- Supported Standard : IEEE 802.3af/at
General
- Power Supply : 100 ~ 240 V AC
- Power Consumption : ≤15W(without HDD)
- Working Environment : -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
- Dimensions (W×D×H) : 400mm ×362mm × 74mm (15.7" × 14.2" ×2.9")
- Weight (without HDD) : ≤5kg (5.29lb)
Extra Information
- SKU: NVR30432SP16
- Warranty: 2 Years
- Brand: Uniview
- Technology: IP
- Product Type: NVR
- PDF: View PDF
