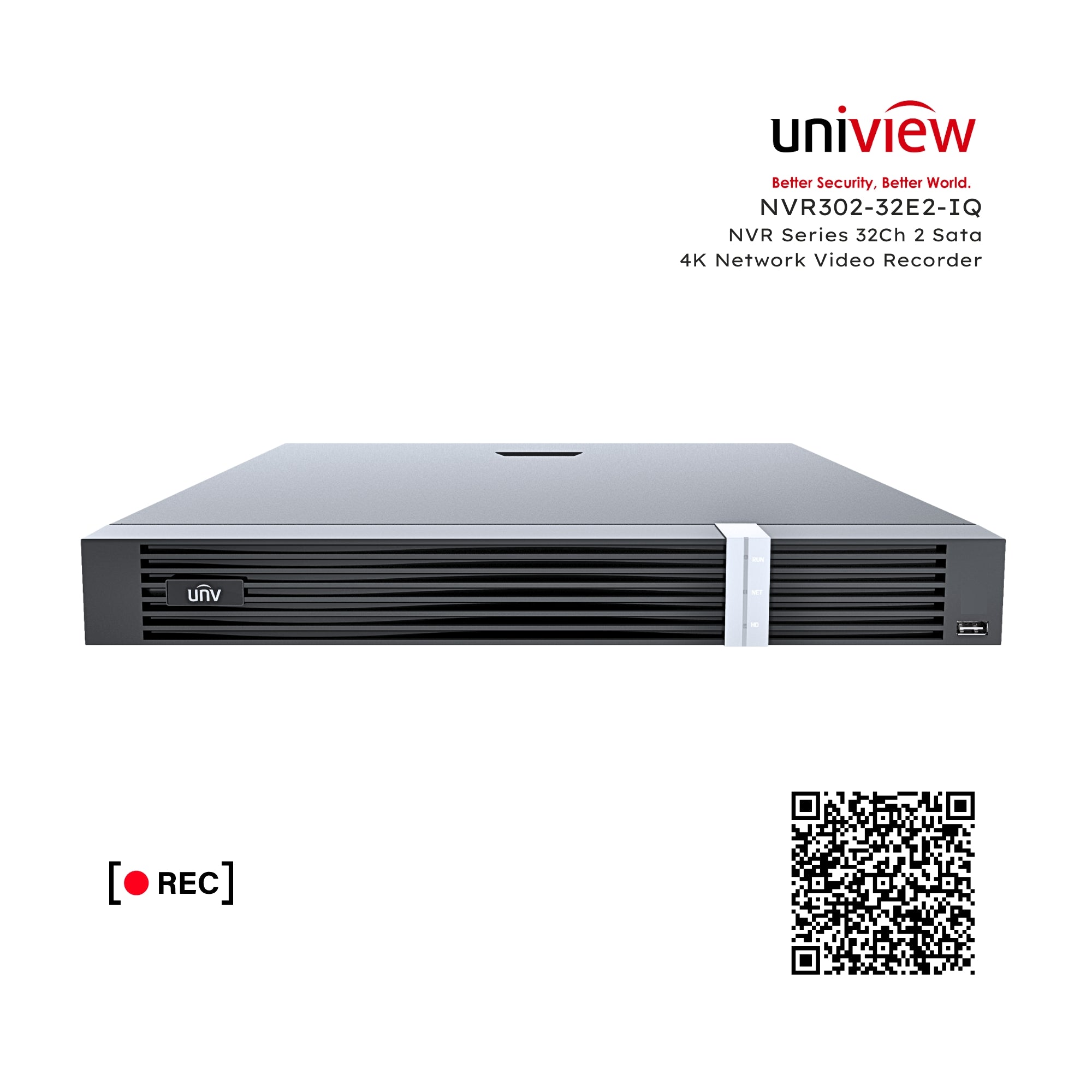

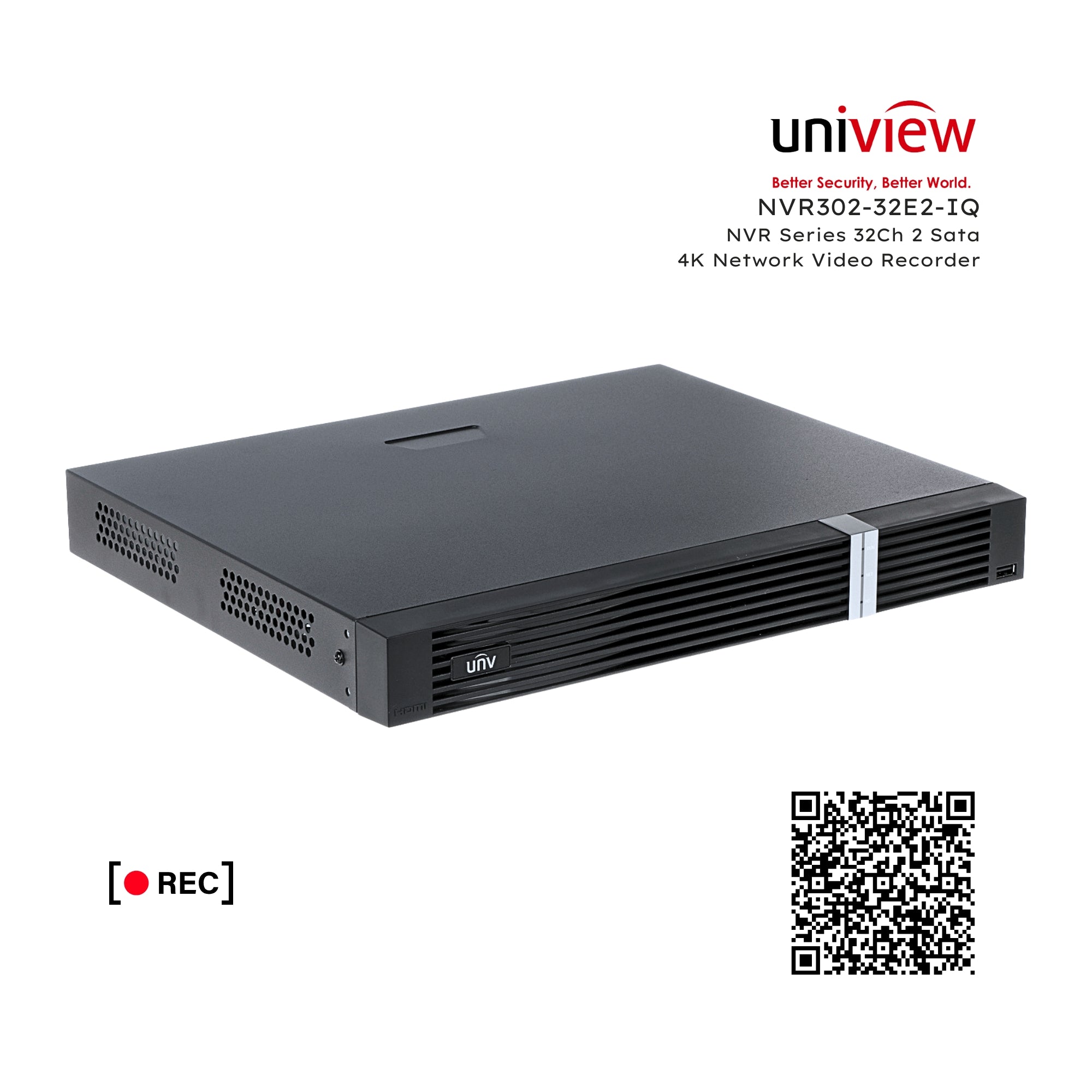

UNV Uniview NVR302-32E2-IQ NVR Series 32Ch 2 Sata 4K Network Video Recorder
Key Features
- Support Ultra H.265/H.265/H.264 video formats
- 32-channel input
- Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- Support HDMI and VGA simultaneous output
- Up to 12 Megapixels resolution recording
- 2 SATA HDDs, Up to 8TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Specifications
|
Model |
NVR302-09E2-IQ |
NVR302-16E2-IQ |
NVR302-32E2-IQ |
|
Video/Audio Input |
|
|
|
|
IP Video Input |
9-ch |
16-ch |
32-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
|
|
Network |
|
|
|
|
Incoming Bandwidth |
Smart Off: 320Mbps Smart On: 160Mbps |
|
|
|
Outgoing Bandwidth |
Smart Off: 320Mbps Smart On: 160Mbps |
|
|
|
Remote Users |
128 |
|
|
|
Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS |
|
|
|
Browser |
IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|
|
|
Video/Audio Output |
|
|
|
|
HDMI/VGA Output |
VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
|
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
|
|
Audio Output |
1-ch, RCA |
|
|
|
Audio Compression |
G.711A, G.711U |
|
|
|
Synchronous Playback |
16-ch |
|
|
|
Live View Display |
1/4/6/8/9 |
1/4/6/8/9/16 |
1/4/6/8/9/16/25/36 |
|
Corridor Mode Screen |
3/4/5/7/9 |
3/4/5/7/9/10/12/16 |
3/4/5/7/9/10/12/16/32 |
|
Snapshot |
|
|
|
|
FTP/Schedule/Event Snapshot |
16-ch snapshot, up to 1080P resolution |
|
|
|
Decoding |
|
|
|
|
Decoding Format |
Ultra 265, H.265, H.264 |
|
|
|
Live View/Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
|
|
Capability |
Smart Off: 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 22 x 720P@30, 32 x D1 Smart On: 1 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 18 x 720P@30, 32 x D1 |
|
|
|
Hard Disk |
|
|
|
|
SATA |
2 SATA interfaces |
|
|
|
Capacity |
Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) |
|
|
|
eSATA |
NA |
|
|
|
Disk Group |
Support |
|
Smart |
|
|
VCA Detection by Camera |
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD) |
|
NVR Smart |
Smart Intrusion Prevention (SIP), UMD |
|
VCA Search |
Behavior Search, Vehicle Search |
|
People Counting |
People Flow Counting, Crowd Density Monitoring |
|
SIP by NVR with normal cameras |
4-ch |
|
UMD by NVR |
8-ch |
|
SIP, Vehicle Detection, UMD by Camera |
Total 8-ch |
|
General Alarm |
|
|
General Alarm |
Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection |
|
Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|
External Interface |
|
|
Network Interface |
2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
|
USB Interface |
Front panel: 1 x USB2.0,Rear panel: 1 x USB2.0 1 x USB3.0 |
|
RS232 |
NA |
|
RS485 |
1 |
|
Alarm In |
8-ch |
|
Alarm Out |
2-ch |
|
General |
|
|
Power Supply |
12VDC/3.3A Power Consumption: ≤ 12 W (without HDD) |
|
Working Environment |
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
|
Dimensions (W×D×H) |
380mm × 321mm × 53mm (15.0" × 12.6"× 2.1") |
|
Weight (without HDD) |
≤1.8Kg (3.97lb) |
|
Certification |
|
|
Certification |
CE, FCC, UL, RoHS, WEEE |
|
CE |
EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
|
FCC |
Part15 Subpart B, ANSI C63.4 |
