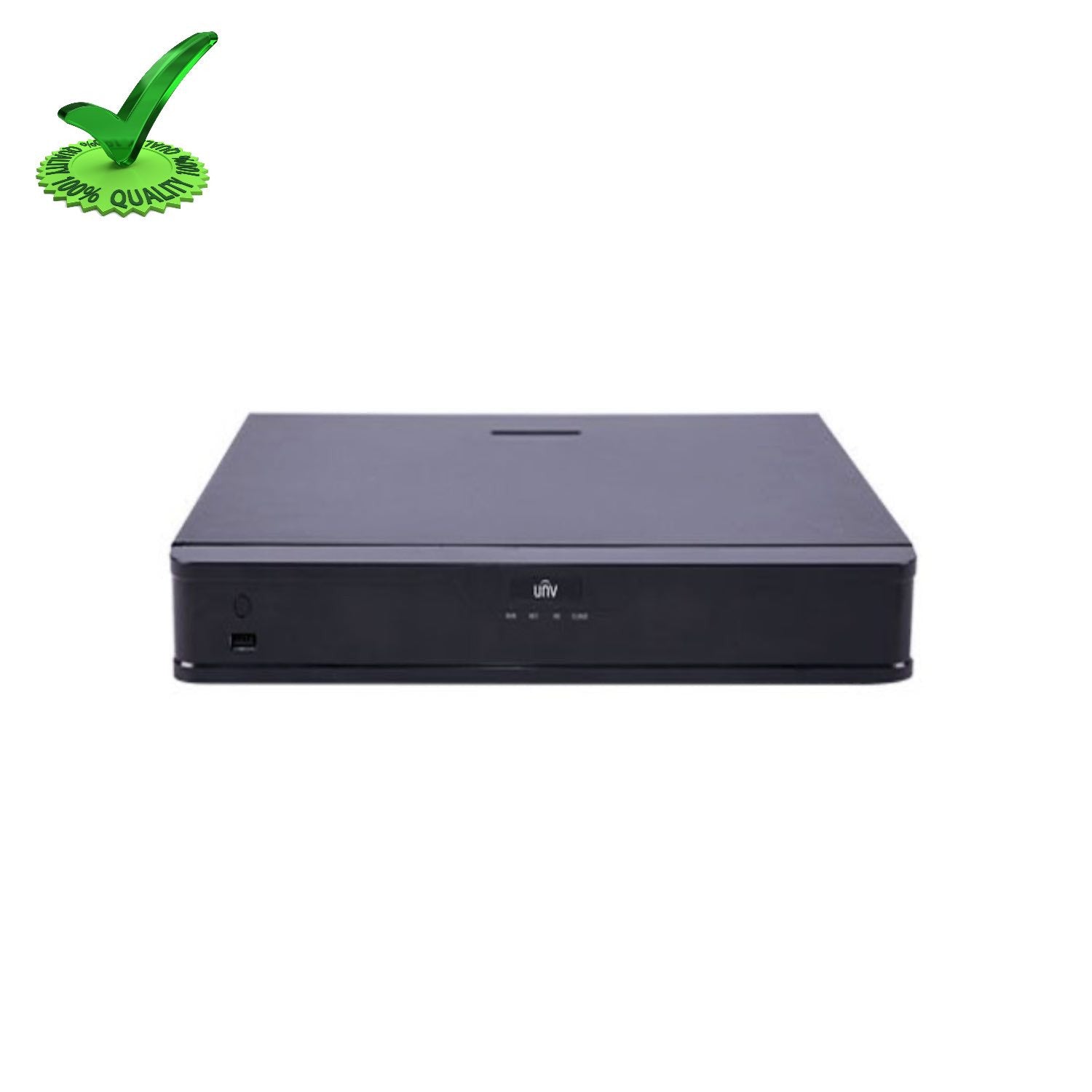

Uniview NVR302-32E-B 32Ch HD NVR
Short Description
- Support Ultra 265/H.265/H.264 video formats
- 9/16-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI and VGA simultaneous output
- Up to 12 Megapixels resolution recording
- 2 SATA HDDs, Up to 10TB for each disk
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Specifications
Video/Audio Input
- IP Video Input : 32-ch
- Two-way Audio Input : 1-ch, RCA
- Network
- Incoming Bandwidth : 160Mbps
- Outgoing Bandwidth : 320Mbps
- Remote Users : 128
- Protocols : P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
- HDMI/VGA Output : HDMI: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
- Recording Resolution : 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Audio Output : 1-ch, RCA
- Synchronous Playback : 32-ch
- Corridor Mode Screen : 3/4/5/7/9/10/12/16
Decoding
- Decoding format : Ultra 265, H.265, H.264
- Live View/ Playback : 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Capability : 3 x 12MP@25, 4 x 4K@30, 9 x 4MP@25, 16 x 1080p@30
Hard Disk
- SATA : 2 SATA interfaces
- Capacity : up to 10TB for each disk
Smart
- VCA Detection : Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
- VCA Search : Face search, Behavior search
- Statistical Analysis : People counting
External Interface
- Network Interface : 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
- Serial Interface : 1 x RS485
- USB Interface : Front panel: 1 x USB2.0 Rear panel: 1 x USB2.0, 1 x USB3.0
- Alarm In : 8-ch
- Alarm Out : 2-ch
General
- Power Supply : 12V DC
- Power Consumption : ≤ 20 W( without HDD )
- Working Environment : -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
- Dimensions(W×D×H) : 380mm × 315mm ×46mm (15.0"× 12.4" ×1.8")
- Weight ( without HDD ) : ≤ 2.48 Kg (5.47 lb )
Extra Information
- SKU: NVR30232EB
- Warranty: 2 Years
- Brand: Uniview
- Technology: IP
- Product Type: NVR
- PDF: View PDF
