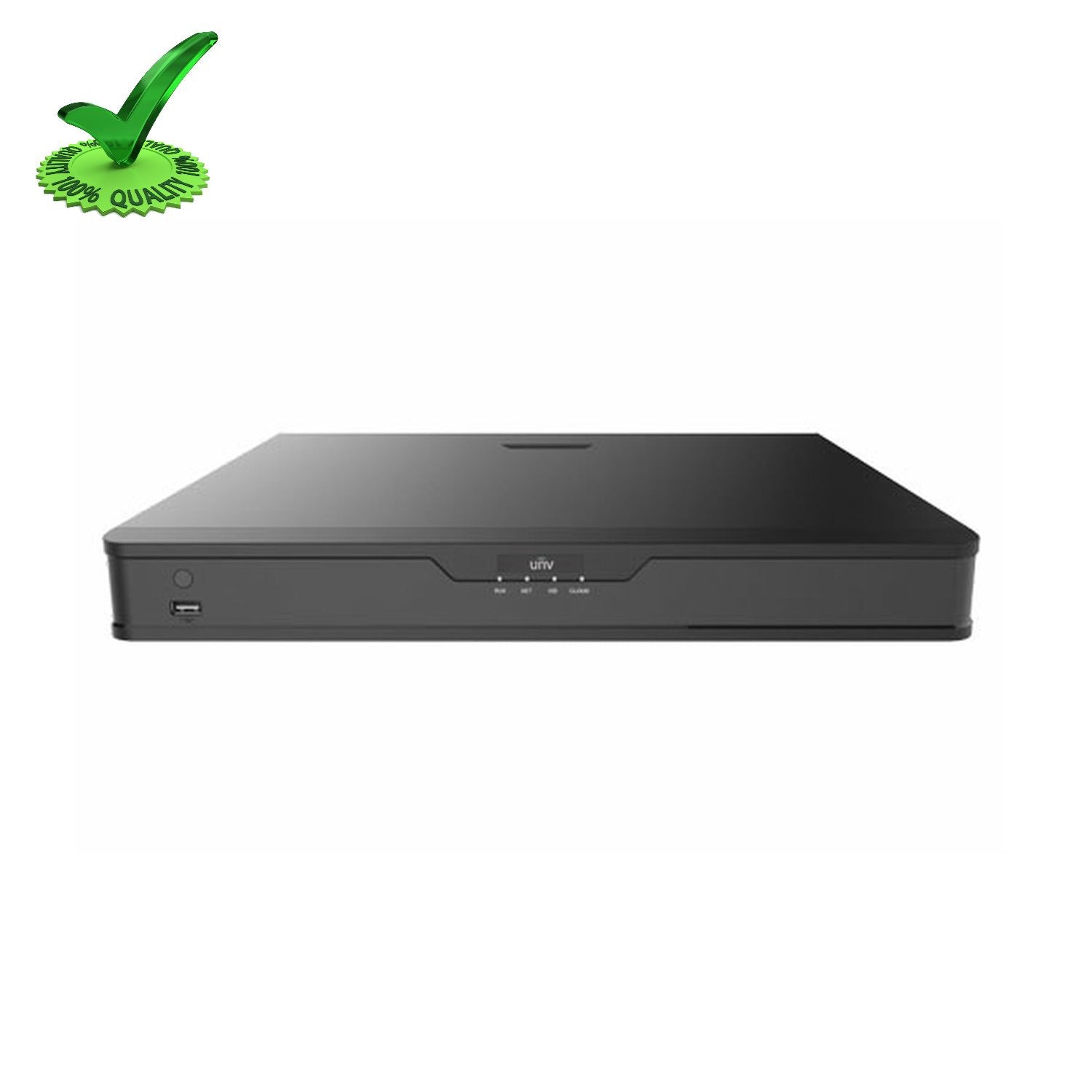

Uniview NVR302-08S2-P8 8Ch HD Network Video Recorder

Specifications

Video/Audio Input

• IP Video Input : 8-ch
• Two-way Audio Input : 1-ch, RCA

Network

• Incoming Bandwidth : 160Mbps
• Outgoing Bandwidth : 64Mbps
• Remote Users : 128
• Protocols : P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, SMTP, NTP, SNMP, RTSP, IPv4, IPv6, ONVIF

Video/Audio Output

• HDMI/VGA Output : HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60,  1024X768@60 VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60
• Recording Resolution : 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Audio Output : 1-ch, RCA
• Synchronous Playback : 8-ch
• Corridor Mode Screen : 3/4/5/7/9

Decoding

• Decoding format : Ultra265/H.265/H.264
• Live view/Playback : 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability : 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P  @30

Hard Disk

• SATA : 2 SATA interfaces
• Capacity : Up to 10TB for each disk

Smart

• VCA Detection : Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change  detection, Auto tracking, Object Left Behind, Object Removed
• VCA Search : Face search, Behavior search
• Statistical Analysis : People counting

External Interface

• Network Interface : 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
• USB Interface : Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
• Alarm In : 4-ch
• Alarm Out : 1-ch

PoE

• Interface : 8 RJ-45 self-adaptive Ethernet Interface
• Max Power : Max 30W for single port Max 130W in total
• Supported Standard : IEEE 802.3af/at

General

• Power Supply : 100 ~ 240 V AC
• Power Consumption : ≤10W(without HDD)
• Working Environment : -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
• Dimensions (W×D×H) : 380mm ×315mm × 53mm (14.9" × 12.4" ×2.1")
• Weight (without HDD) : ≤2.6kg (5.29lb)

Extra Information

• SKU: NVR30208S2P8
• Warranty: 2 Years
• Brand: Uniview
• Technology: IP
• Product Type: NVR
• PDF: View PDF
