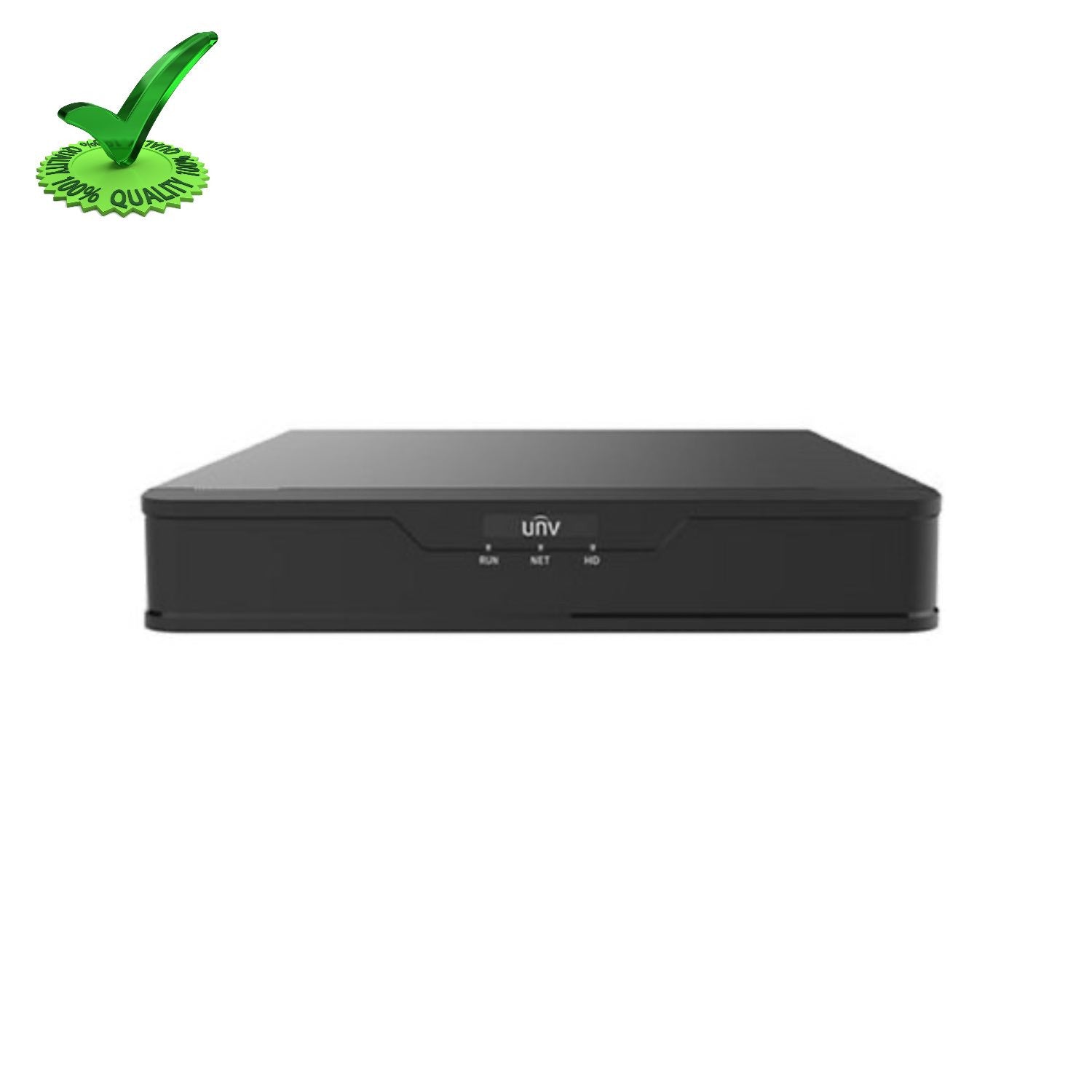

Uniview NVR301-8X-P8 8Ch HD Network Video Recorder

Specifications

Video/Audio Input

• IP Video Input : 8-ch
• Two-way Audio Input : 1-ch, RCA

Network

• Incoming Bandwidth : 80Mbps
• Outgoing Bandwidth : 64Mbps
• Remote Users : 128
• Protocols : P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

• HDMI/VGA Output: HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz,  1280x720/60Hz,1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• Recording Resolution : 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Audio Output : 1-ch, RCA
• Synchronous Playback : 8-ch
• Corridor Mode Screen : 3/4/5/7/9

Decoding

• Decoding format : Ultra 265/H.265/H.264
• Liveview/Playback : 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability : 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30

Hard Disk

• SATA : 1 SATA interface
• Capacity : up to 6TB for each disk

External Interface

• Network Interface : 1 RJ45 10M/100M self-adaptive Ethernet Interface
• USB Interface : Rear panel: 1 x USB2.0,1 x USB3.0

PoE

• Interface : 4 RJ45 10M/100M self-adaptive Ethernet Interface
• Max Power : Max 30W for single port Max 54W in total
• Supported Standard : IEEE 802.3at, IEEE 802.3af

General

• Power Supply : 48V DC
• Power Consumption : ≤9 W (without HDD)
• Working Environment : -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
• Dimensions (W×D×H) : 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
• Weight (without HDD) : 1kg (2.20 lb)

Extra Information

• SKU: NVR3018XP8
• Warranty: 2 Years
• Brand: Uniview
• Technology: IP
• Product Type: NVR
• PDF: View PDF
