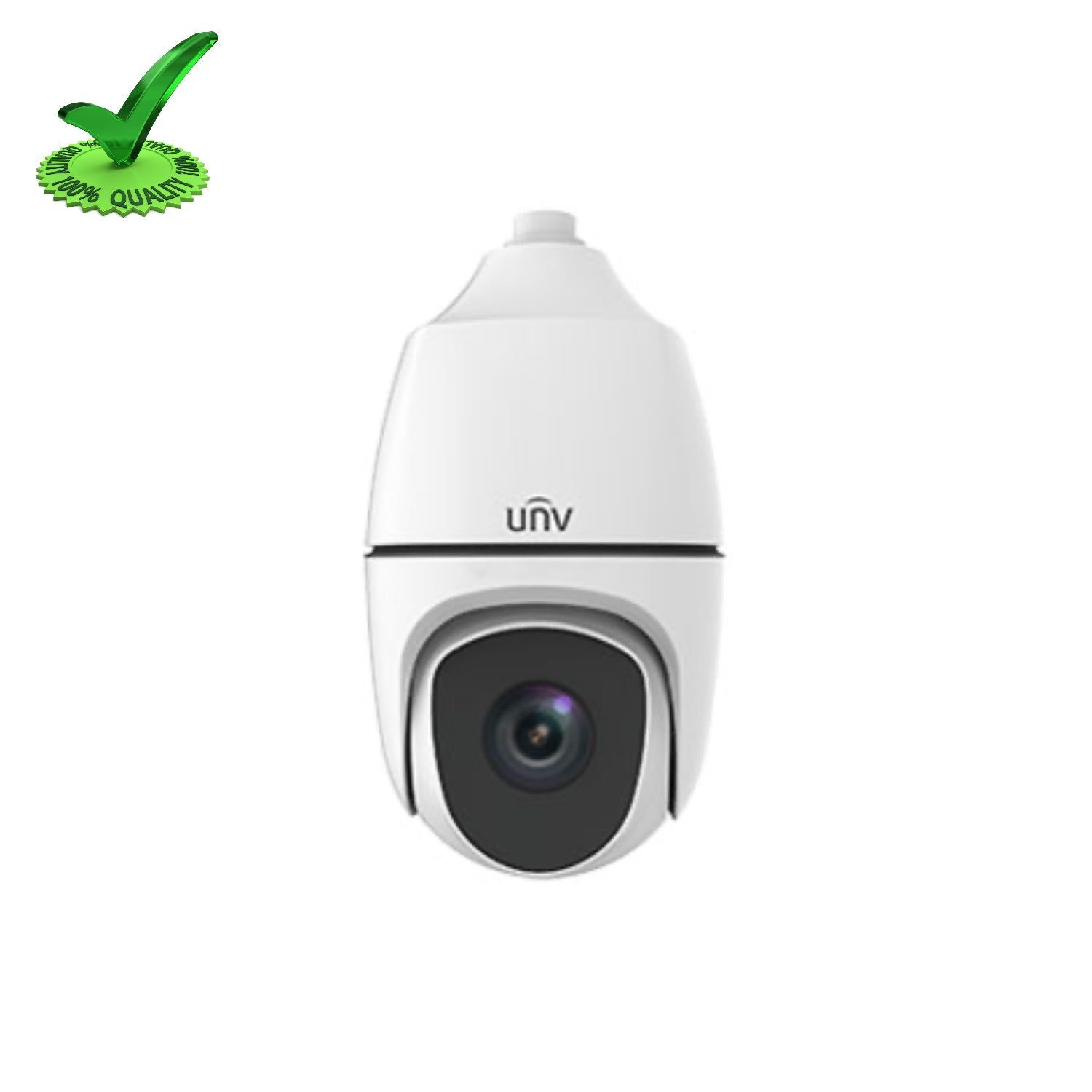

Uniview IPC6854ER-X40G-VF 4MP IP Network Speed Dome Camera
Short Description
- High quality image with 4MP,1/1.8’’ CMOS sensor
- 2688*1520@30fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- Five streams
- 40X Optical Zoom
- Lighthunter technology ensures ultra-high image quality in low illumination environment
- Smart IR, up to 250m (820ft) IR distance
- Support SFP optical interface, support serial connection of optical and electrical interface
- AC 24V ±25%, DC 24V±25%
- Alarm 7 in and 2 out, Audio 1 in and 1 out
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Specifications
Camera
- Sensor : 1/1.8", 4.0 megapixel, progressive scan, CMOS
- Minimum Illumination : Colour: 0.0005Lux (F1.3, AGC ON) 0Lux with IR
- Day/Night : IR-cut filter with auto switch (ICR)
- Shutter : Auto/Manual, 1 ~ 1/100000s
- WDR : 120dB
- S/N : >56dB
Lens
- Lens type : 5.7 ~ 228mm, AF automatic focusing and motorized zoom lens
- Digital Zoom : 16
- Optical Zoom : 40
- Iris : Auto; F1.3 ~ F4.6
- Angle of View (H) : 59.5° ~ 2.2°
- Angle of View (V) : 35.6° ~ 1.2°
- Angle of View (O) : 70.2° ~ 2.6°
Illuminator
- IR Range : Up to 250m (820 ft) IR range
- Wavelength : 850nm
- IR On/Off Control : Auto/Manual
Video
- Video Compression : Ultra 265, H.265, H.264, MJPEG
- Frame Rate : Main Stream: 4MP (2688*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps Fourth Stream: D1 (720*576), Max 30fps Fifth Stream: D1 (720*576), Max 30fps
- Video Bit Rate : 128 Kbps~16 Mbps
- H.264 Type : Baseline Profile/Main Profile/High Profile
- H.265 Type : Main Profile
- U-code : Support
- ROI : Up to 8 areas
- Video stream : Five streams
- OSD : Up to 8 OSDs
- Privacy Mask : Up to 24 blacks (Up to 4 blacks in the same picture)
- White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital noise reduction : 2D/3D DNR
- Flip : Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
- EIS : N/A
- HLC : Support
- BLC : Support
- Defog : Optical Defog & Digital Defog
Events
- General Function : Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
- Audio Compression : G.711U,G.711A
- Audio Bitrate : 64 Kbps
- Two-way audio : Support
- Suppression : Support
- Sampling Rate : 8KHZ
Storage
- Edge Storage : Micro SD, up to 256GB
- Network Storage : ANR,NAS(NFS)
Network
- Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
- Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host : Up to 32 users. 2 user levels: administrator and common user
- Security : Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client : EZStation Ezview EZLive
- Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Pan & Tilt
- Pan Range : 360° (endless)
- Pan Speed : 0.1°/s ~ 180°/s
- Preset speed : 300°/s
- Tilt Range : -15° ~ 90° (auto reverse)
- Tilt Speed : 0.1° ~ 180°
- Preset speed : 240°/s
- Number of Presets : 1024
- Patrol : Preset patrol, route patrol, recorded patrol
- Patrol Stay Time : 15s~1800s
- Preset Image Freeze : Support
- Home Position : Support
Interface
- Audio I/O : 1/1
- Alarm I/O : 7/2
- Serial Port : 1 RS485
- Built-in Mic : N/A
- Built-in Speaker : N/A
- WIFI : N/A
- Network : 1*100M/1000M Base-FX SFP + 1*10M/100M Base-TX Ethernet
- Video output : 1 BNC
Certification
- EMC : FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013
- Safety : IEC 62368-1 EN 62368-1 UL 60950-1
- Environment : CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
- Protection : Ingression protection: IP66 (IEC 60529-2013)
General
- Power : AC 24V ±25%, DC 24V±25%
- Power consumption : Max 61W
- Power Interface : Wires with cold-pressed terminal
- Dimensions (Ø x H) : Φ270 x 497mm (Φ10.6” x 19.6”)
- Weight : 9.5kg(20.9lb)
- Working Environment : -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
- Storage Environment : -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
- Surge Protection : 6KV
- Vandal Resistant : N/A
- Ingress Protection : IP66
- Reset Button : Support
Extra Information
- SKU: IPC6854ERX40GVF
- Warranty: 2 Years
- Brand: Uniview
- Megapixel: 4
- Technology: IP
- Camera Type: DOM
- Product Type: Camera
- PDF: View PDF
