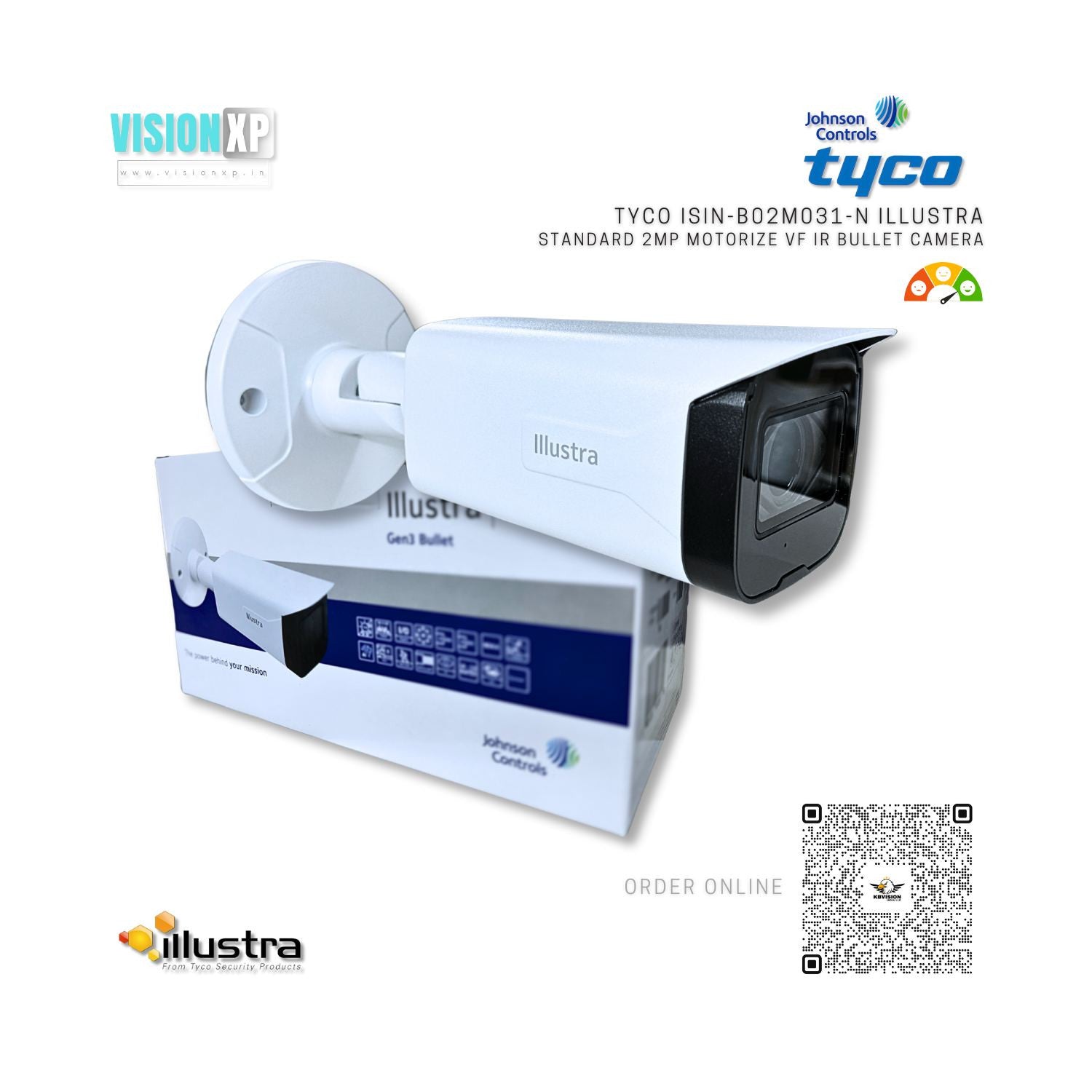

Tyco ISIN-B02M031-N Illustra Standard Gen3 2MP Motorized VeriFocal IR Bullet Network IP Camera Online Store

Key Benefits

• 2MP Resolution (1920 X 1080), H.265
• 60fps@2MP
• True day / night
• Up to 70m IR distance with Smart IR
• Auto focus by motorized V/F lens
• True WDR, up to 120dB
• 3D DNR
• Defog
• Triple streams
• Smart codec by ROI
• 2-way audio & alarm in/out
• Onboard storage
• Advanced intelligent video analytics
• IP67 / IK10

Specifications

Camera

• Image Sensor : 1/2.8” Progressive Scan CMOS Sensor
• Effective Pixels : 1920 × 1080
• Shutter Speed :  1/4s to 1/32000s
• S/N Ratio : ≥52 dB AGC ON
• Memory Capacity : 1GB RAM and 512MB Flash

Lens

• Focal Length : 2.7mm to 13.5mm
• Iris Type : DC-Iris

Video

• Video Compression : H.265 / H.265 intellizip / H.264 / H.264 intellizip / MJPEG
• Resolution with aspect : ratio 1920 x 1080, 1664 x 936, 1280 x 720, 1024 x 576, 960 x 544, 816 x 464, 640 x 360, 480 x 272 @ 16:9
• Max. Frame Rate : 30fps @ all resolution (up to 60 fps with TWDR off)
• Multiple Streaming : Triple streams
• Main Stream (H.265/H.264/MJPEG) : 1920 x 1080 / 1664 x 936 / 1280 x 720 ( 1 - 60/50fps)
• Sub Stream (H.265/H.264/MJPEG) : 1280x720/1024x576/960x544/816x464/640x360/480x272 (1 - 30/25fps)
• Third Stream (MJPEG) : 800x448 (7fps)
• Quality Control : VBR, CBR & CVBR supported
• Image Setting : time stamp, text overlay, flip & mirror, ROI, Saturation, Brightness, Contrast, Wide Dynamic, Sharpen, white balance, video rotation, AGC etc.
• EIS : Yes
• Slow Shutter : Yes

Audio

• Audio Communication : Bi-directional audio (2-way), 1IN/1OUT
• Audio Compression Format : G711ulaw
• Audio Noise Reduction : Supported

Operational

• Day & Night : True Day Night (TDN) with automatic removable cut filter
• Wide Dynamic Range : True WDR, 120dB
• IR Distance : Up to 70m
• Image Features : Defog , Multiple Exposure Method, 2D/3D DNR
• Corridor Pattern : Supported
• Video Privacy : 8 zones video mask
• AI Object Analytics : Object Classes: Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Class Trigger Rules: Object Detected, Perimeter, Linger, Dwell, Abandoned / Removed, Enter, Exit, Crowd, Queue Object Sub-Classes: Person Clothing Colour, Vehicle Colour
• AI Tamper Detection : Blackout, Whiteout, Scene Change (FoV tamper)
• Alarm Triggers : Motion detection, AI video analytics, Blur and Tamper Ai, Alarm input
• AI Blur Detection : Supported
• Event Triggers : FTP Upload, CIFS, SMTP, Snapshots, SD Card Record, SIP Call, Audio clip playback
• Motion Detection : Zones 3 Zones
• Edge Storage : Built-in micro SD card slot, up to 1TB (Encrypted Storage)

Network

• Record Triggers : Motion detection, AI video analytics, Blur and Tamper Ai, Alarm input Recording Format : MP4
• Network Protocol : TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIFS, FSTP, UPnP™, SIP
• Pre-Alarm Recording : Supported
• Online Connection : Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
• API : ONVIF Profile S, G
• Cyber Security : Secure Boot, Enhanced Security Mode (forces complex passwords, HTTPS and disables discovery); TLS 1.2 (256 bit cipher minimum); Security Overview Page (status and configuration); RTSP Authentication; IEEE 802.1X Client; Remote Accessible Audit logs; Role-Based Access Control, Video Encryption for local storage and streaming
• Web Browser : Supported MS Edge, Firefox, Safari, Chrome

Interface

• Network : 1 RJ45 10M/100M self-adaptive ethernet port
• Audio : Internal MIC x1, Line IN × 1, Line OUT × 1
• Video Output : CVBS video output (BNC × 1)
• Alarm : Alarm IN x 1, Alarm OUT x 1
• Hardware Reset & Factory Reset Button : Yes

Environmental

• Power Supply : PoE & 12VDC, support power supply failover
• Operating Temperature : -40°C to 60 °C
• Operating Humidity : 0% ~ 90% relative humidity
• Ingress Protection : IP67
• Vandal Resistance : IK10

Regulatory

• Certification : CE, FCC, UL & BIS

Ordering Information

Model Number Description Bullet Camera

• ISIN-B02M031-N : H.265 2MP Motorized V/F IR Bullet N/W Camera, 2.7-13.5mm, 70M IR, Micro SD, DC12V/PoE, IP67/IK10, Smart IVA
