- Dahua DH-IPC-HFW2231T-ZAS-S2 Motorised Veri-Focal 2.7mm-13.5mm 2MP WDR IR Bullet Network Camera Dahua DH-IPC-HFW2231T-ZAS-S2 Motorised Veri-Focal 2.7mm-13.5mm 2MP WDR IR Bullet Network Camera

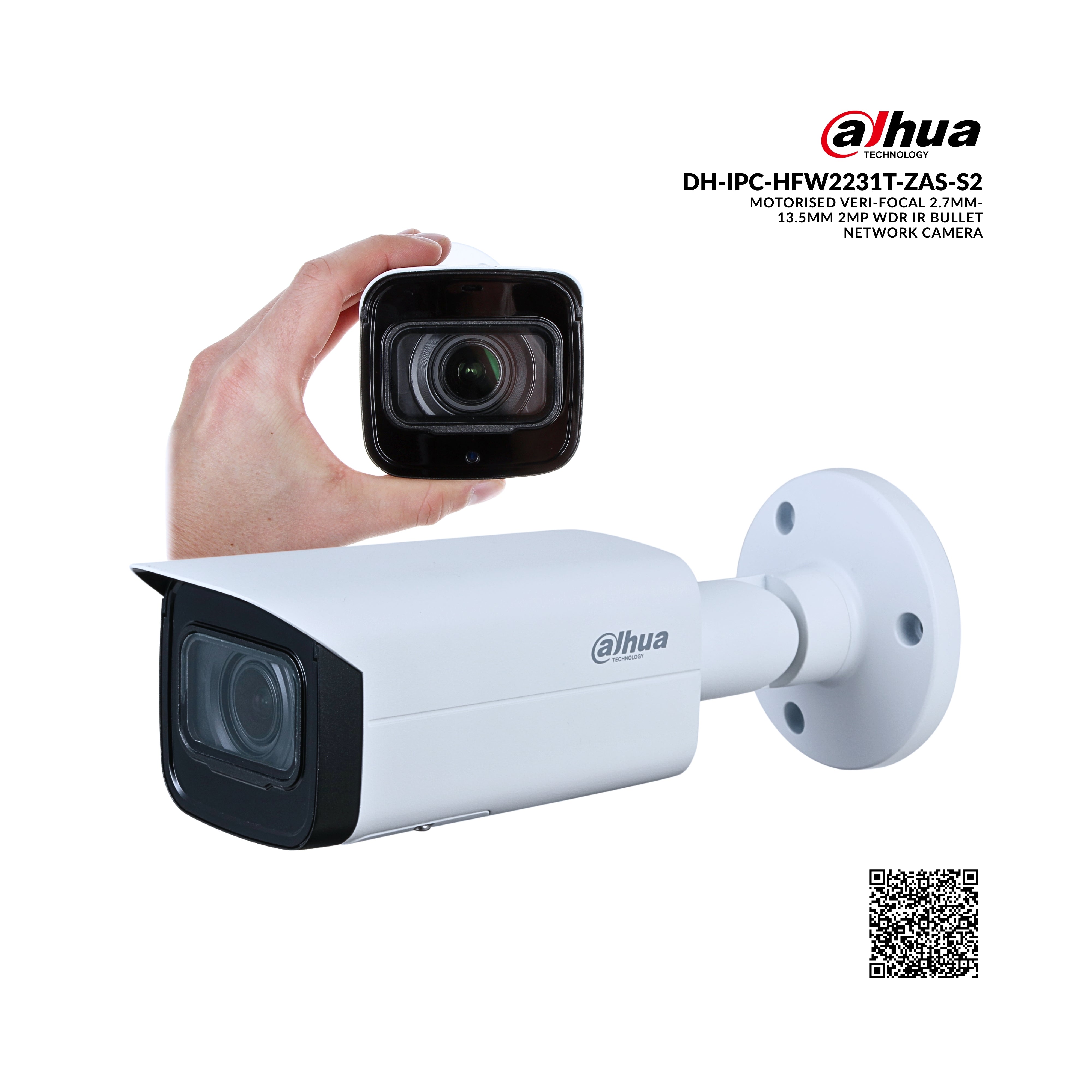

Dahua DH-IPC-HFW2231T-ZAS-S2 Motorised Veri-Focal 2.7mm-13.5mm 2MP WDR IR Bullet Network Camera
Key Features
- 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
- Outputs 2MP (1920 × 1080)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max IR distance: 60 m
- ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, local alarm, voltage detection,audio abnormal
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 GB Micro SD card
- 12V DC/PoE power support
- IP67 protection ,IK10 protection (optional)
- Motorized vari-focal Lens Type 2.7mm-13.5mm
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
- Description
- Reviews
With upgraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function , complying to the standards of IP67.
Smart(H.265+ & H.264+)
Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.
Wide dynamic range (WDR)
Dahua adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with strong light source, you can also get clear images.
Starlight
Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect.
Intelligent Video Analysis (IVS)
With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Technical Specification
Camera
|
Image Sensor |
1/2.8” 2Megapixel progressive CMOS |
||||
|
Effective Pixels |
1920 (H) × 1080 (V) |
||||
|
ROM |
128 MB |
||||
|
RAM |
128 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
||||
|
Min. Illumination |
0.002 Lux@F1.5 0 Lux (IR On) |
||||
|
IR Distance |
60 m (196.85 ft) |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
IR LEDs Number |
4 |
||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
||||
|
Lens |
|
||||
|
Lens Type |
Motorized vari-focal |
||||
|
Mount Type |
φ14 |
||||
|
Focal Length |
2.7 mm–13.5 mm |
||||
|
Max. Aperture |
F1.5 |
||||
|
Field of View |
Pan: 109°–28° Tilt: 57°–16° Diagonal: 131°–33° |
||||
|
Iris Type |
Fixed aperture |
||||
|
Close Focus Distance |
0.8 m–0.8 m (2.62 ft–2.62 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
W |
44.1 m (144.69 ft) |
17.6 m (57.74 ft) |
8.8 m (28.87 ft) |
4.4 m (14.44 ft) |
|
|
T |
151.7 m (497.70 ft) |
60.6 m (198.82 ft) |
30.3 m (99.41 ft) |
15.1 m (49.65 ft) |
|
|
Smart Event |
|
||||
|
General IVS Analytics |
Tripwire; intrusion |
||||
|
Video |
|
||||
|
Video Compression |
H.265; H.264; H.264B; MJPEG |
||||
|
Smart Codec |
Yes |
||||
|
Video Frame Rate |
Main stream: 1920 × 1080 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) |
||||
|
Stream Capability |
2 streams |
||||
|
Resolution |
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Video Bit Rate |
H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
120 dB |
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D DNR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Region of Interest(RoI) |
Yes (4 areas) |
|
Smart IR |
Yes |
|
Image Rotation |
0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower.) |
|
Mirror |
Yes |
|
Privacy Masking |
4 areas |
|
Audio |
|
|
Audio Compression |
G.711a; G.711Mu; G.726; AAC |
|
Network |
|
|
Network |
RJ-45 (10/100 Base-T) |
|
Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; 802.1x; Bonjour |
|
Interoperability |
ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone; Genetec |
|
User/Host |
20 |
|
Edge Storage |
Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
|
Browser |
Internet Explorer, Google Chrome, Firefox |
|
Security |
IP Filter, User Authentication, Port Security |
|
Management Software |
Smart PSS; DSS; DMSS |
|
Mobile Phone |
IOS; Android |
|
Certification |
|
|
Certifications |
CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
|
Port |
|
|
Audio Input |
1 channel (RCA port) |
|
Audio Output |
1 channel (RCA port) |
|
Alarm Input |
1 channel In: 5mA 5VDC |
|
Alarm Output |
1 channel Out: 300mA 12VDC |
|
Ordering Information |
||
|
Type |
Part Number |
Description |
|
2MP Camera |
DH-IPC-HFW2231TP-ZAS-S2 |
2MP WDR IR Bullet Network Camera,PAL |
|
DH-IPC-HFW2231TN-ZAS-S2 |
2MP WDR IR Bullet Network Camera,NTSC |
|
|
Accessories (optional) |
PFA130-E |
Junction Box |
|
PFA152-E |
Pole Mount |
|
|
PFM321D |
DC12V1A Power Adapter |
|
|
LR1002-1ET/1EC |
Single-port Long Reach Ethernet over Coax Extender |
|
|
PFM900-E |
Integrated Mount Tester |
|
|
PFM114 |
TLC SD Card |
|
|
Power |
|
|
Power Supply |
12V DC/PoE (802.3af) |
|
Power Consumption |
< 9.6W |
|
Environment |
|
|
Operating Conditions |
-30°C to +60°C (-22°F to +140°F)/less than ≤ 95% RH |
|
Storage Temperature Protection |
-40°C to +60°C (-40°F to +140°F) IP67;IK10(optional) |
|
Structure |
|
|
Casing |
Metal |
|
Dimensions |
244.1 mm × Φ90.4 mm (9.61" × Φ3.26") |
|
Net Weight |
0.9 kg (1.98 lb) |
|
Gross Weight |
1.15 kg (2.54 lb) |
