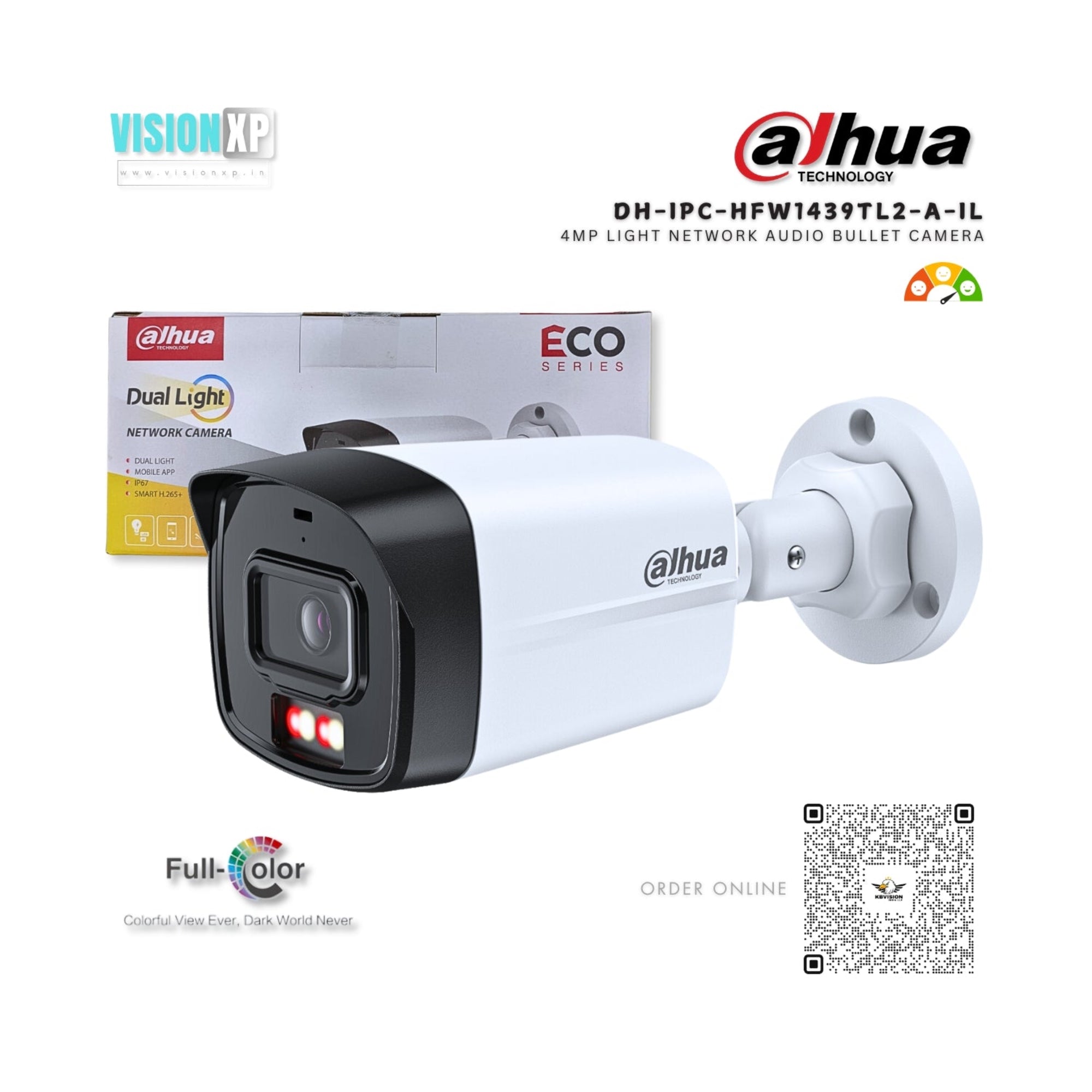

Dahua DH-IPC-HFW1439TL2-A-IL 4MP Light Network Audio Bullet Camera
Key Features
- 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2560 × 1440)@30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 15 m.
- DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Built in Mic.
- 12 VDC/PoE power supply, easy for installation.
- IP67 protection.
Refund policy
Refund policy
we suggest to reach us out on +919825257770 or info@techfinder.in regarding the product you wish to shop before making an online purchase. Once you have made the transaction through techfinder, unless a legitimate reason, the order can neither be returned nor cancelled.In case of legitimate reason the return is acceptable only within 2 days(with video proof). Read more...
Shipping Info
Shipping Info
We always believe to provide smooth and easy shipping methods to our valued customers. We are committed to providing timely service and ensuring your satisfaction. Orders will be dispatched within 2 to 7 days, depending on the specific order and the product's availability. We appreciate your patience and understanding as we work to fulfill your request. The orders for the user are shipped through registered domestic courier companies and/or speed post only. Read more...
Technical Specification
Camera
|
Image Sensor |
1/3" CMOS |
||||
|
Max. Resolution |
2560 (H) × 1440 (V) |
||||
|
ROM |
16 MB |
||||
|
RAM |
64 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||
|
Min. Illumination |
0.008 lux@F1.6 (Color, 30 IRE); 0.0008 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
||||
|
S/N Ratio |
＞56 dB |
||||
|
Illumination Distance |
Up to 30 m (98.43 ft) (IR); Up to 15 m (49.21 ft) (Warm light) |
||||
|
Illuminator On/Off Control |
Auto;Manual |
||||
|
Illuminator Number |
2 (Multi-core (IR + warm) light) |
||||
|
Angle Adjustment |
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed-focal |
||||
|
Lens Mount |
M12 |
||||
|
Focal Length |
2.8 mm; 3.6 mm |
||||
|
Max. Aperture |
F1.6 |
||||
|
Field of View |
2.8 mm: H: 94°; V: 52°; D: 111° 3.6 mm: H: 78°; V: 41°; D: 94° |
||||
|
Iris Control |
Fixed |
||||
|
Close Focus Distance |
2.8 mm: 1.1 m (3.61 ft) 3.6 mm: 1.7 m (5.58 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.8 mm |
64.0 m ( 209.97 ft) |
25.6 m ( 83.99 ft) |
12.8 m ( 41.99 ft) |
6.4 m ( 21.00 ft) |
|
|
3.6 mm |
85.4 m ( 280.18 ft) |
34.2 m ( 112.20 ft) |
17.1 m ( 56.10 ft) |
8.5 m ( 27.89 ft) |
|
|
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
|||||
Video
|
Video Compression |
H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
|
Smart Codec |
Smart H.265+; Smart H.264+ |
|
Video Frame Rate |
Main stream: 2560 × 1440@(1–25/30 fps ) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|
Stream Capability |
2 streams |
|
Resolution |
4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|
Bit Rate Control |
VBR;CBR |
|
Video Bit Rate |
H.264: 32 kbps–4096 kbps; H.265: 12 kbps–4096 kbps |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
DWDR |
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Region of Interest (RoI) |
Yes (4 areas) |
|
Illumination |
Yes |
|
Image Rotation |
0°/180° |
|
Mirror |
Yes |
|
Privacy Masking |
4 areas |
|
Audio |
|
|
Built-in MIC |
Yes, built-in Mic |
|
Audio Compression |
G.711a; G.711Mu; PCM; G.726 |
|
Alarm |
|
|
Alarm Event |
Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception |
|
Network |
|
|
Network Port |
RJ-45 (10/100 Base-T) |
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; P2P |
|
Interoperability |
ONVIF (Profile S & Profile T); CGI |
|
User/Host |
6 (Total bandwidth: 24 M) |
|
Storage |
FTP |
|
Browser |
IE; Chrome; Firefox |
|
Management Software |
Smart PSS Lite; DSS; DMSS; DoLynk Care |
|
Mobile Client |
iOS;Android |
|
Cyber Security |
Video encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;Generation and importing of X.509 certification;HTTPS;Trusted boot;Trusted execution;Trusted upgrade |
|
Certification |
|
|
Certifications |
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
Accessories
|
Power Supply |
12 VDC/PoE (802.3af) |
|
Power Consumption |
Basic: 1.4 W (12 VDC), 2.1 W (PoE); Max.: 3.3 W (12 VDC); 4.5 W (PoE) (ICR switch + illuminator intensity) |
|
Environment |
|
|
Operating Temperature |
–40 °C to +50 °C (–40 °F to +122 °F) |
|
Operating Humidity |
≤95% (RH), non-condensing |
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Storage Humidity |
≤95% (RH), non-condensing |
|
Protection |
IP67 |
|
Structure |
|
|
Casing Material |
Plastic |
|
Product Dimensions |
198.9 mm × 80.2 mm × 76.2 mm (7.83" × 3.16" × 3.00") (L × W × H) |
|
Net Weight |
0.25 kg (0.55 lb) |
|
Gross Weight |
0.37 kg (0.82 lb) |
|
Ordering Information |
||
|
Type |
Model |
Description |
|
IP CAMERA |
DH-IPC-HFW1439TL2-A-IL |
4MP ECO Dual Light Fixed-focal Bullet Network Camera |
|
Accessories (Optional) |
DH-PFA151 |
Corner mount bracket |
|
DH-PFA130-E |
Water-proof Junction Box |
|
|
G3416GW |
G3/4" Water Joint |
|
|
DH-PFA152-E |
Pole Mount Bracket |
|
|
DH-PFA134 |
Junction box |
|
|
DH-PFM321-EN |
DC12V1A power adapter |
|
|
DH-PFM321D-EN |
DC12V 1A power adapter |
|
|
DH-PFM320D-EN |
DC12V2A power adapter |
|
|
PFM900-E |
Integrated Mount Tester |
|
|
DH-PFA151 Corner mount bracket |
DH-PFA130-E Water-proof Junction Box |
DH-PFA152-E Pole Mount Bracket |
4MP Dual Light Fixed-focal Bullet Network Camera
- 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2560 × 1440)@30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 15 m.
- DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Built in Mic.
- 12 VDC/PoE power supply, easy for installation.
- IP67 protection.
